Max-E-Pro
Max-E-Pro Max-E-Pro Max-E-Pro Max-E-Pro
Aquatics Pool Pumps Available to Order

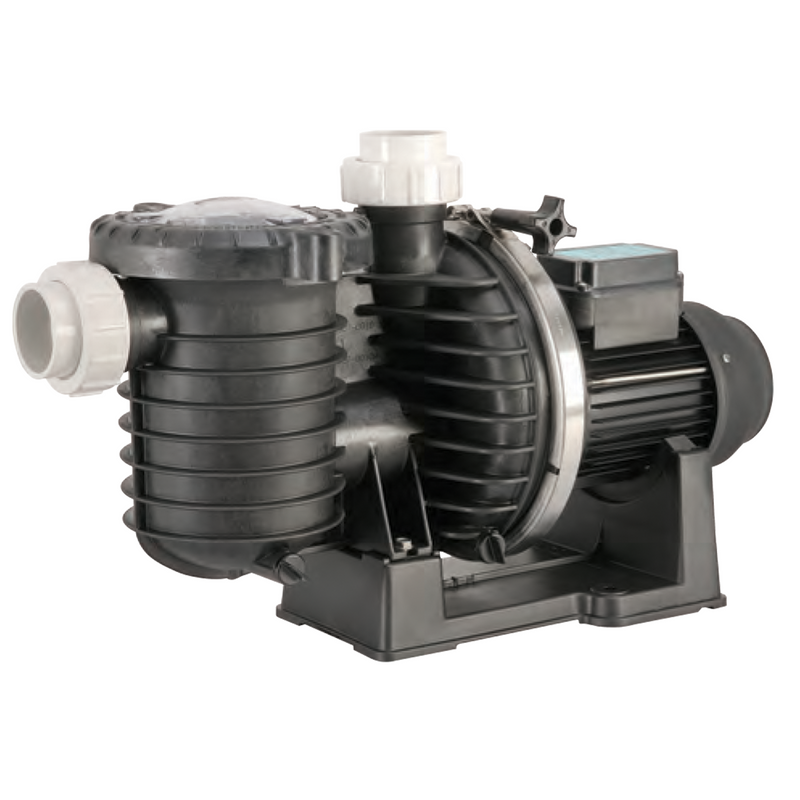

Max-E-Pro

The Max-E-Pro is a pool circulation pump designed for residential and commercial swimming-pool installations. For these installations, it helps provide dependable water movement and efficient system performance through high-grade, corrosion-resistant composite construction.
Max Pressure 360 kPa
Temperature Liquid Up To 40°C
Warranty 3 years
Enquire About This Pump
🔧 NZ-based technical support 📄 Trade pricing on request 🕐 Quotes typically same day

Applications

  • Inground pools
  • Inground spas
  • Fountains
  • Water features
  • Pool/spa combos

Key Features

  • Typical Installation
  • Self-priming
  • Easy-to-Install
  • Superior Hydraulic Design
  • Impeller Manufactured with PPO Resin
  • Fluoroelastomer Rubber Shaft Seal
  • Self-lubricating Lid O-ring

Downloads

Max-E-Pro Technical Data Sheet PDF MAX-E-Pro Product Flyer PDF Max-E-Pro Manual PDF MAX-E-Pro Spare Parts PDF

Technical specifications

View full specification table
Brand Pentair
Model Max-E-Pro
Equipment Category High Performance Pool/Spa Pumps
Fluid Water
Maximum Working Pressure 360 kPa
Water (Swim Pool) Temp Range 5°C-40°C
Maximum Ambient Temperature 55°C
Insulation Class F
IP Rating 55
Warranty 3 year limited warranty*

Frequently asked questions

Is the Max‑E‑Pro suitable for an in-ground pool?
Yes. The Max‑E‑Pro is designed for in-ground pools, pool-and-spa combinations, in-ground spas, fountains and water features.
Can a Max‑E‑Pro pump self-prime above pool-water level?
Yes. It is self-priming and can lift water up to 4.5 metres above the water level when the suction plumbing is installed correctly.
How do I clean the Max‑E‑Pro pump basket?
The Quick‑Lock™ trap-cover ring gives quick access to the strainer basket, while the clear lid makes it easy to see when debris needs removing.
Is the Max‑E‑Pro available in single-phase and three-phase options?
Yes. The range is available in single-phase and three-phase models, with motor ratings from 1 to 3 HP.
Which Max‑E‑Pro size do I need for my pool?
The right model depends on pool volume, required turnover rate, pipework, filter and any spa or water-feature demand. Contact us and we can help select the right pump.
