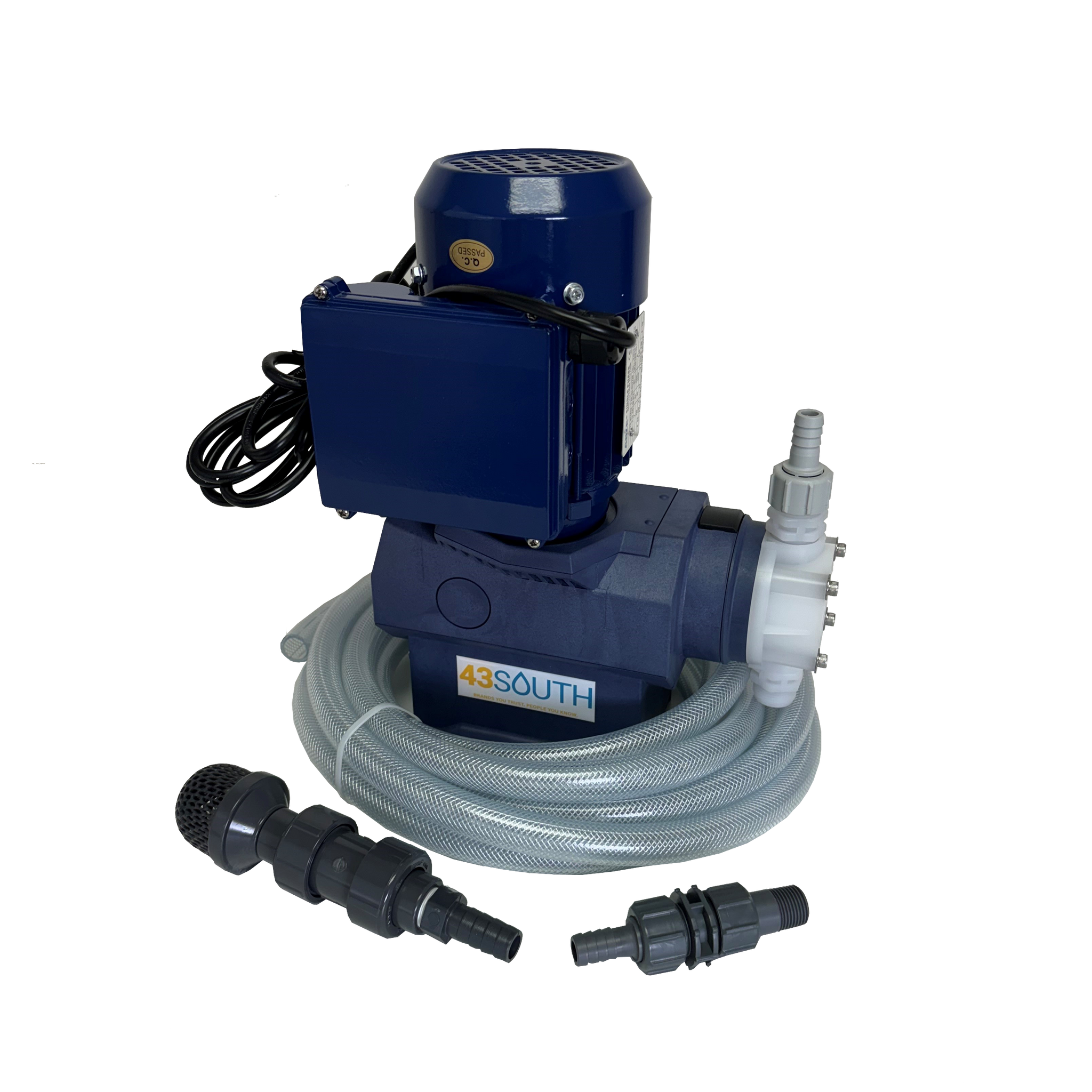

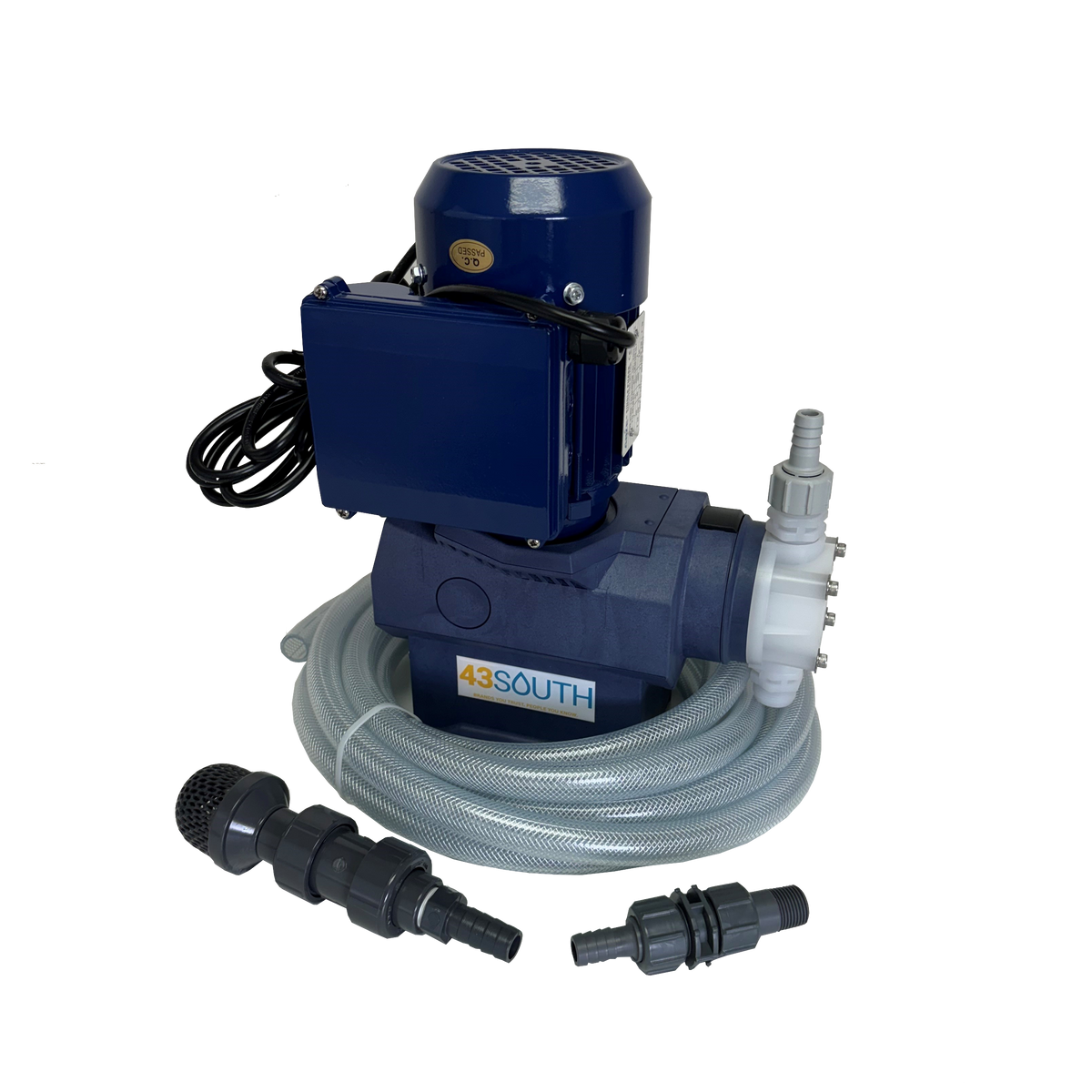

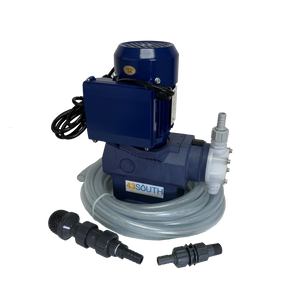

For reliable and precise non flow-proportional injecting of farm related nutrients and minerals directly into stock trough water – at pressures up to 10 bar - the 43South Farm Mineral Dosing Kit comprises all the basics required for installation within a typical dairy shed/dairy farm environment.
Kit Description:
- Quality 230VAC motor-driven diaphragm metering pump 42L/hr nominal capacity at > 10 bar back-pressure, impervious to dosed product
- Manually adjustable stroke-length adjustment to fine tune the dose rate to suit
individual application requirements. Accurate turn-down to within 25% of nominal capacity
- Large surface area suction screen and big bore uPVC foot-valve
- Large DN10 injection non-return valve with Hastelloy C276 spring and 3/4” BSPm mounting thread
- 5m spool of d.16 flexible reinforced PVC dose tubing, for suction AND discharge
- Accessories and Spare parts readily available (see Technical Data Sheet)
- 12 months Factory Warranty against faulty components and/or manufacture. Does not cover installation
Downloads
Technical Data Sheet
Installation Guide
