Jung Pumpen Sewage Pumps Available to Order

Multistream

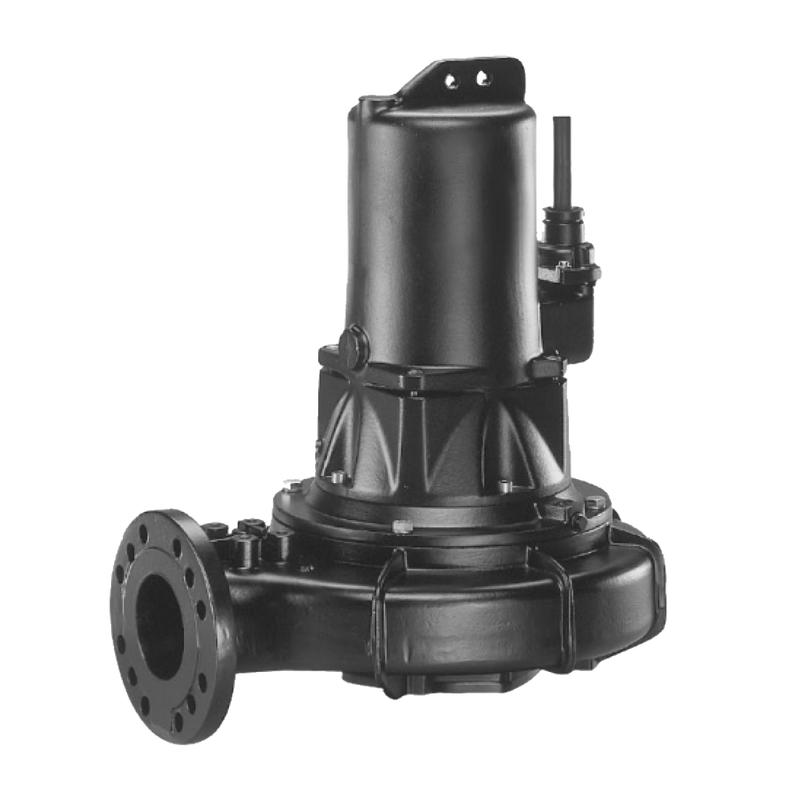

The Jung Pumpen Multistream is a sewage pump designed for wastewater, drainage and dewatering installations. For these installations, it helps provide dependable water movement and efficient system performance through robust cast iron construction.
Max Head 27 m
Max Flow 2200 lpm
Warranty 2 years
Enquire About This Pump
🔧 NZ-based technical support 📄 Trade pricing on request 🕐 Quotes typically same day

Applications

  • Municipal pumping stations
  • Industrial pumping stations
  • Drainage
  • Emergency portable
  • Sewage/effluent

Key Features

  • Adjustable single-channel impeller
  • Connection alternatively PN6 or PN10
  • Safe to run dry
  • Controllable oil chamber
  • Plug-type cable connection (MultiStream 10...-100...)
  • SiC mechanical seal independent of sense of rotation
  • Moisture-sealed cable inlet
  • Installed motor protection

Downloads

Multistream Technical Data Sheet PDF Multistream Product Flyer PDF Multistream Manual PDF Multistream 10-35 Spare Parts PDF Multistream 55-100 Spare Parts PDF Multistream 150-300 Spare Parts PDF

Technical specifications

View full specification table
Brand Jung Pumpen
Model Multistream
Equipment Category Sewage Pump
Maximum Head 27 m
Maximum Flow 2200 lpm
Pump Casing Cast iron
Motor Housing Cast Iron
Impeller Cast iron
Mechanical Seal Silicon carbide mechanical seal with oil chamber and artificial carbon mechanical (or duplex rotary shaft seal up to size 35) as secondary seal.
Made in Germany
Warranty 2 years

Frequently asked questions

What flow rate can a Multistream pump deliver?
The Multistream range can deliver up to 2,200 litres per minute. Actual flow depends on the selected model, lift height, pipework and operating conditions.
Why is the adjustable impeller gap useful?
As wear occurs, the pump’s hydraulic efficiency can reduce. The adjustable gap helps restore performance without major pump replacement work.
What flange connections are available?
Multistream pumps can be supplied with either PN6 or PN10 connections, depending on the model and installation requirements.
Can Multistream pumps be used for emergency dewatering?
Yes. Smaller Multistream models can be used as portable units for emergency situations.
