HMU Series
HMU Series HMU Series HMU Series
Caprari Surface Available to Order

HMU Series

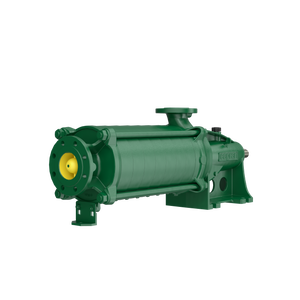

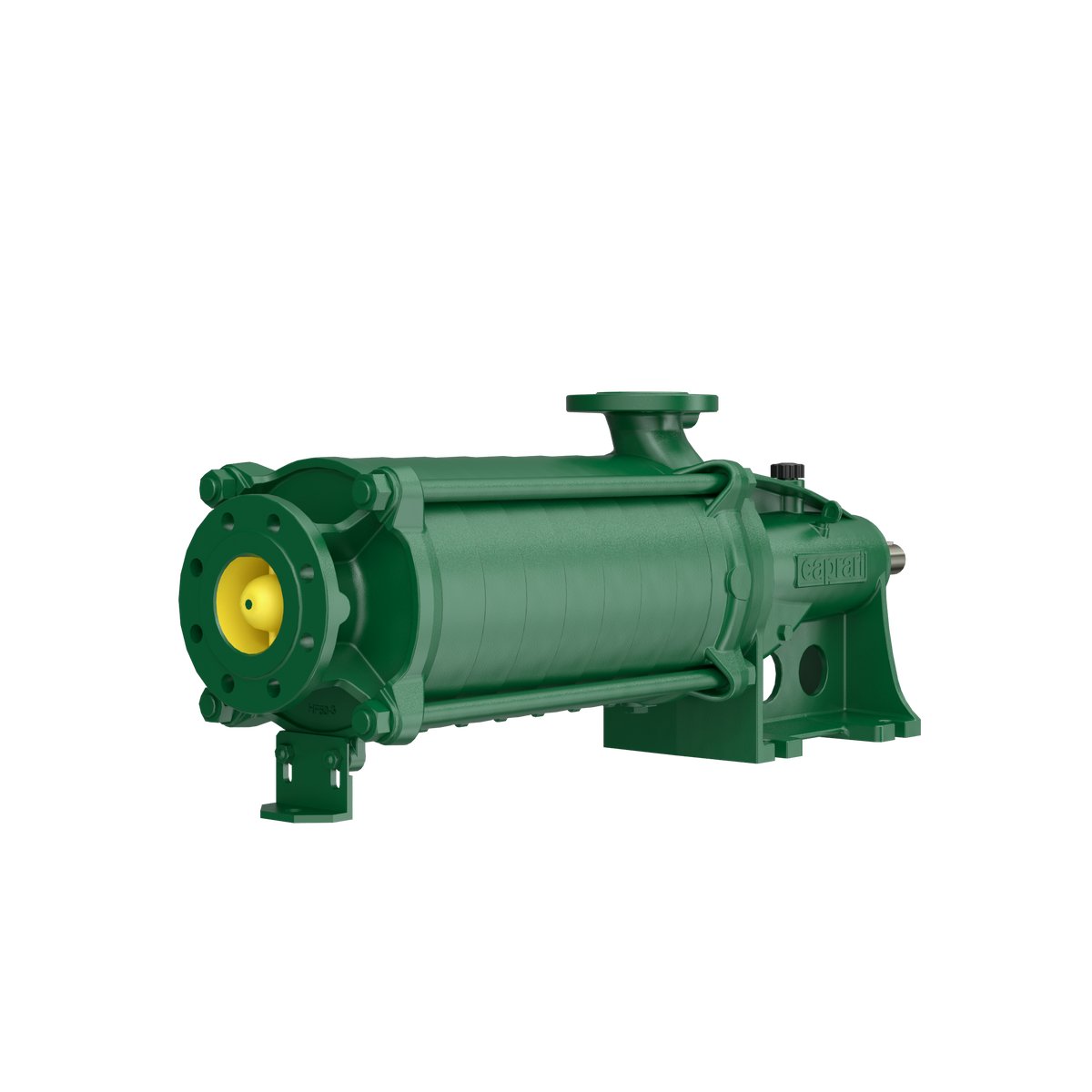

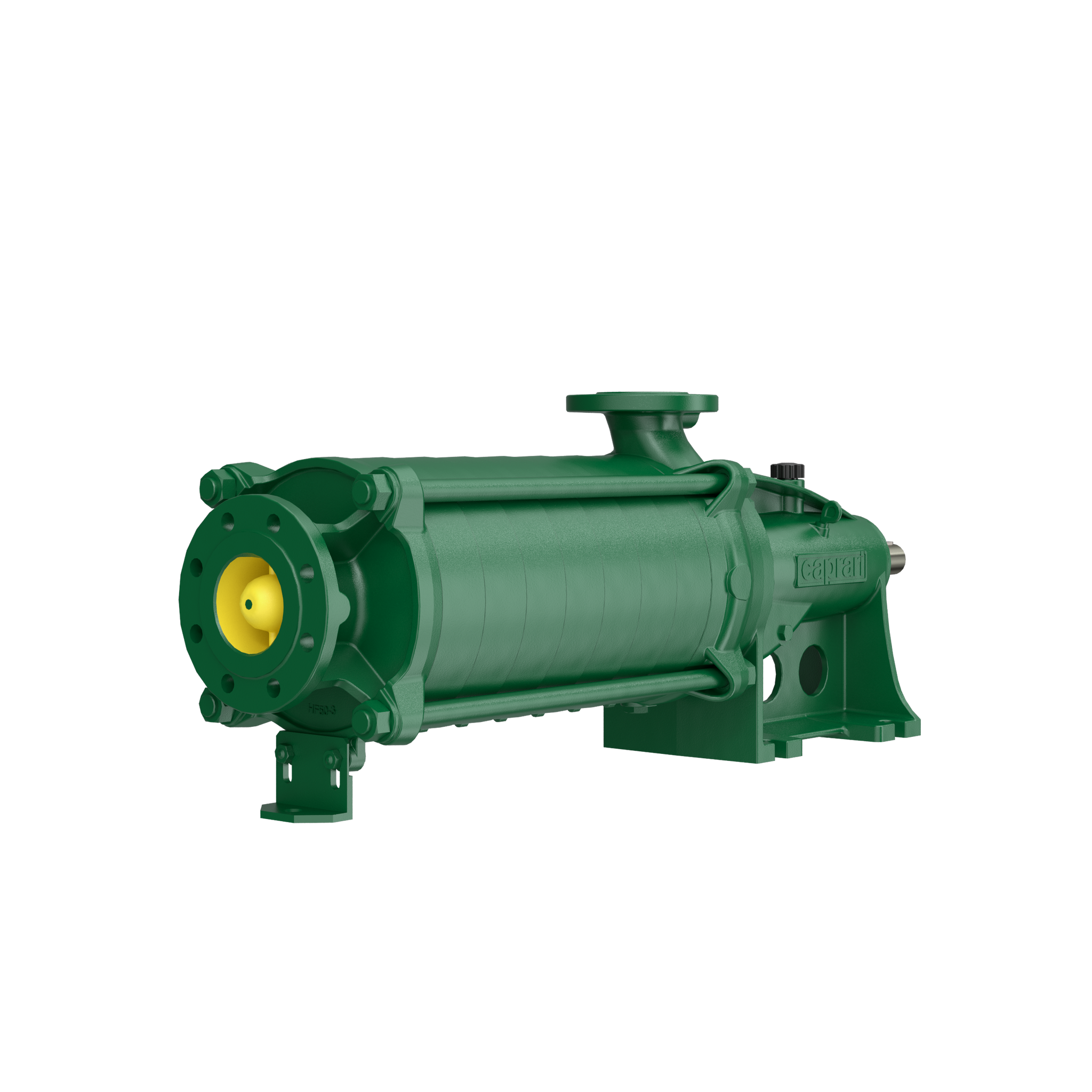

The Caprari HMU Series is an industrial centrifugal pump designed for residential, rural, commercial and industrial water systems. For these installations, it helps provide dependable water movement and efficient system performance through robust cast-iron construction. Multiple models or configurations are available to suit different flow, pressure, capacity and installation requirements.

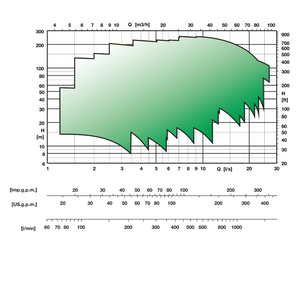

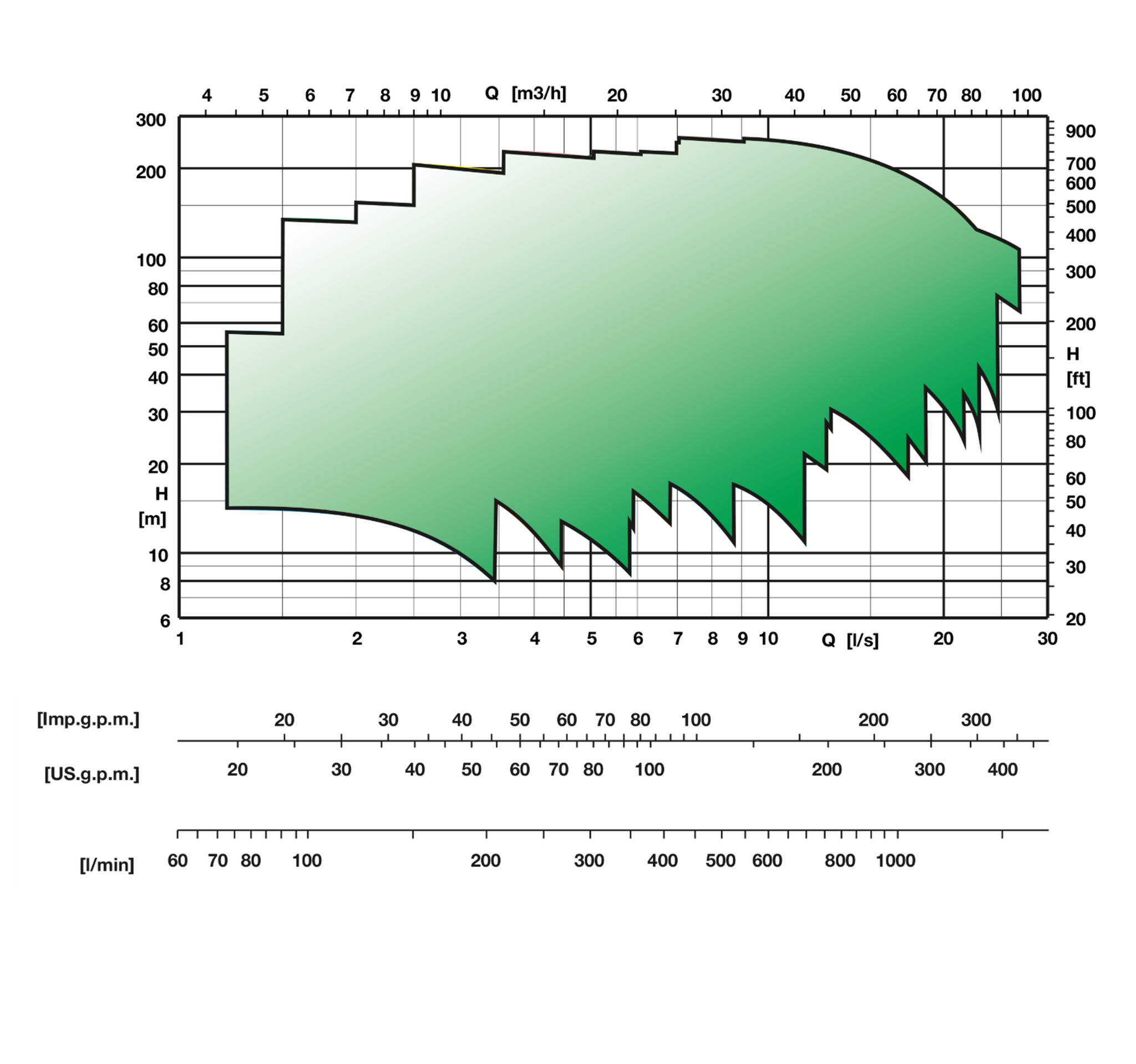

Flow Rate Up To 26 l/s
Head Up To 280m
Power Up To 55kW
Enquire About This Pump
🔧 NZ-based technical support 📄 Trade pricing on request 🕐 Quotes typically same day

Applications

  • Water supply
  • Irrigation
  • Fire-fighting
  • Industrial processes

Key Features

  • High Rigidity
  • Energy Saving
  • Direct Coupling to Electric Motors or Combustion Engines

Downloads

HMU Series Technical Data Sheet PDF HMU Series Product Flyer PDF HMU Series Technical Catalogue PDF HMU Series Use and Maintenance Instructions PDF

Technical specifications

View full specification table
Brand Caprari
Model HMU Series
Equipment Category Multistage Pumps with Horizontal Shaft
Pump Type Multistage Pumps with Horizontal Shaft
Certification Certification for use with drinking water: DM174, WRAS, ACS
Special Constructions On Demand High pressure mechanical seal, Special mechanical seal, Outlet port in horizontal position

Frequently asked questions

What type of pump is an HMU Series pump?
HMU pumps are horizontal multistage centrifugal pumps. Their multiple impellers are designed to produce higher pressure for demanding transfer and boosting duties.
What flow rate can an HMU Series pump deliver?
The HMU Series can provide flow rates of up to 26 litres per second. Actual flow depends on the selected model and the pressure, pipework and system conditions.
Can an HMU pump be driven by an electric motor?
Yes. HMU pumps can be coupled with electric motors.
Can the HMU Series be used for fire-fighting applications?
The range can be used in fire-fighting applications when the pump, driver and overall system are specified for the required duty and relevant standards. Contact us for help selecting a suitable configuration.
