PVMI / PVMIE Pumps
Southern Cross Vertical Multistage Available to Order

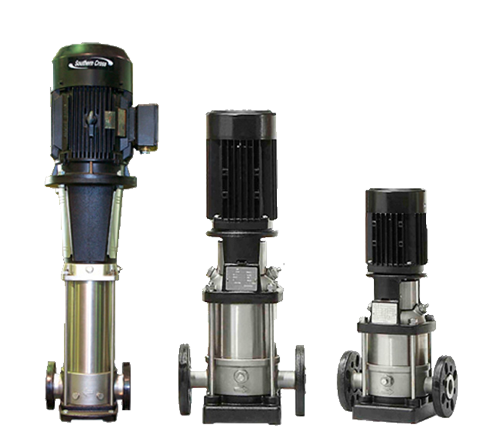

PVMI / PVMIE Pumps

The Southern Cross PVMI / PVMIE Pumps range is a water pump system designed for residential, rural, commercial and industrial water systems. For these installations, it helps provide dependable water movement and efficient system performance through durable stainless-steel components.
Capacity 180m³ / hour
Head Up To 320m
Enquire About This Product
🔧 NZ-based technical support 📄 Trade pricing on request 🕐 Quotes typically same day

Applications

  • Domestic water boosting
  • Irrigation
  • Seawater
  • Water treatment plants
  • Firefighting
  • Sprinkling

Key Features

  • Heavy duty, high quality, all wetted parts grade 304 stainless steel (316SS optional)
  • High efficiency, long working life and low maintenance
  • Standard TECO IE3 TEFC motor
  • Low-noise operation
  • Vertical design saves floor space
  • Mechanical seal to DIN24960
  • Fitted with silicon carbide, product lubricated bearings.
  • Mechanical shaft seal. Units comply with latest safety regulations (CE-mark)
  • O-ring seals on pump sleeve. In-line industry standard connections.
  • All hydraulic components AISI304 stainless steel. Cast iron base plate and motor bracket with protective coating.

Downloads

PVMI / PVMIE Pumps Manual PDF PVMI / PVMIE Pumps Brochure PDF PVMI / PVMIE Pumps Spare Parts 1,3, & 5 PDF PVMI / PVMIE Pumps Spare Parts 10, 15 & 20 PDF PVMI / PVMIE Pumps Spare Parts 32, 45, 64 & 90 PDF PVMI / PVMIE Pumps Performance Data PDF

Technical specifications

View full specification table
Brand Pentair Southern Cross
Model PVMI / PVMIE Pumps
Equipment Category Vertical Multi-Stage Pumps
Capacity Maximum 180m³ /hour
Head Maximum 320 metres
Liquid Temperature -15˚C to +120˚C
Maximum Ambient Temperature +40˚C
Pumped Liquid Potable Water, Clean Water, Sea Water (SBN), Hard Water (SBN), Mildly Agressive Chemicals (SBN)

Frequently asked questions

What is a vertical multistage pump?
A vertical multistage pump uses multiple impellers arranged in stages to build pressure. This makes it well suited to pressure boosting and higher head water transfer duties.
Are PVMI / PVMIE pumps suitable for water-pressure boosting?
Yes. Domestic water boosting is one of the listed applications for the PVMI / PVMIE range.
Are these pumps quiet?
Yes. The vertical design is intended for low-noise operation while also saving floor space.
What seals and bearings do PVMI / PVMIE pumps use?
They use a mechanical seal to DIN 24960 and silicon carbide, product lubricated bearings. O-ring seals are fitted on the pump sleeve.
