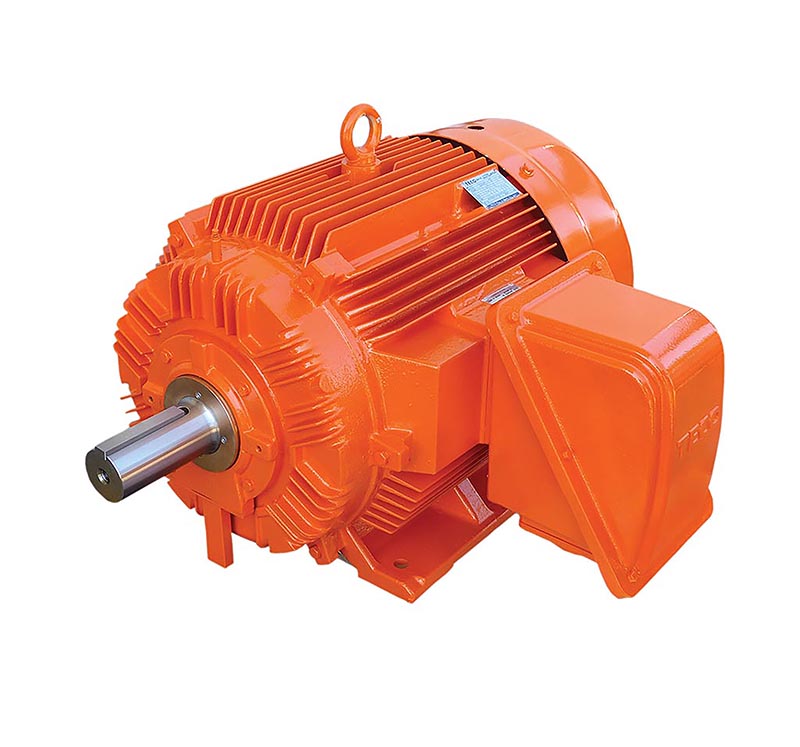

TECO MAXe3 Mining Electric Motor
TECO Electric Motors Available to Order

TECO MAXe3 Mining Electric Motor

The TECO MAXe3 Mining Electric Motor is an industrial electric motor range designed for industrial, agricultural and commercial drive applications. For these installations, it helps support dependable operation, efficient performance and easier equipment monitoring through robust cast-iron construction.
Warranty 2 years
Enquire About This Motor
🔧 NZ-based technical support 📄 Trade pricing on request 🕐 Quotes typically same day

Applications

  • Mining environments
  • Severe duty/hazardous operations

Key Features

  • High Efficiency Motors
  • True IP66 with porous drain plugs
  • Class H insulation system
  • Superior inverter- rated insulation (8500V/microsecond)
  • Precision and rugged cast iron construction including fan
  • Typical temperature rises less than Class E
  • 2 service factor @ 40 deg C ambient
  • Suitable for 60 deg C ambient at rated output
  • TECO renowned grease relief system
  • Two sets of thermistors for frames D160 and larger
  • IECEX Ex e, Ex nA, Ex tD (ready to order)
  • TECO Mining specification
  • X15 Orange paint finish
  • Mountings available - Foot, Foot and D Flange, D Flange, Foot and C Face (to 132 frame only), C Face (to 132 frame only)

Downloads

TECO MAXe3 Mining Electric Motor Brochure PDF

Technical specifications

View full specification table
Brand TECO
Model MAX-Ex (Exe,ExnA,ExtD) Electric Motors
Equipment Category Electric Motor
Protection Rating IP66
Warranty 2 years

Frequently asked questions

What does IP66 protection mean on the MAXe3 Mining motor?
The motor has a true IP66 protection rating with porous drain plugs, providing a high level of protection against dust and powerful water ingress in demanding operating environments.
What is the TECO MAXe3 Mining Electric Motor designed for?
The TECO MAXe3 Mining Electric Motor is a high-efficiency motor designed for harsh mining environments and other demanding industrial applications.
Can the TECO MAXe3 Mining motor be used with a variable speed drive?
Yes. It has superior inverter-rated insulation, rated at 8500 V/microsecond, making it suitable for inverter-driven applications when correctly specified.
Does the TECO MAXe3 Mining motor include thermal monitoring?
Frames D160 and larger include two sets of thermistors to support motor temperature monitoring and protection.
