Multidrain UV3 Series
Multidrain UV3 Series Multidrain UV3 Series Multidrain UV3 Series Multidrain UV3 Series Multidrain UV3 Series
Jung Pumpen Drainage Pumps Available to Order

Multidrain UV3 Series

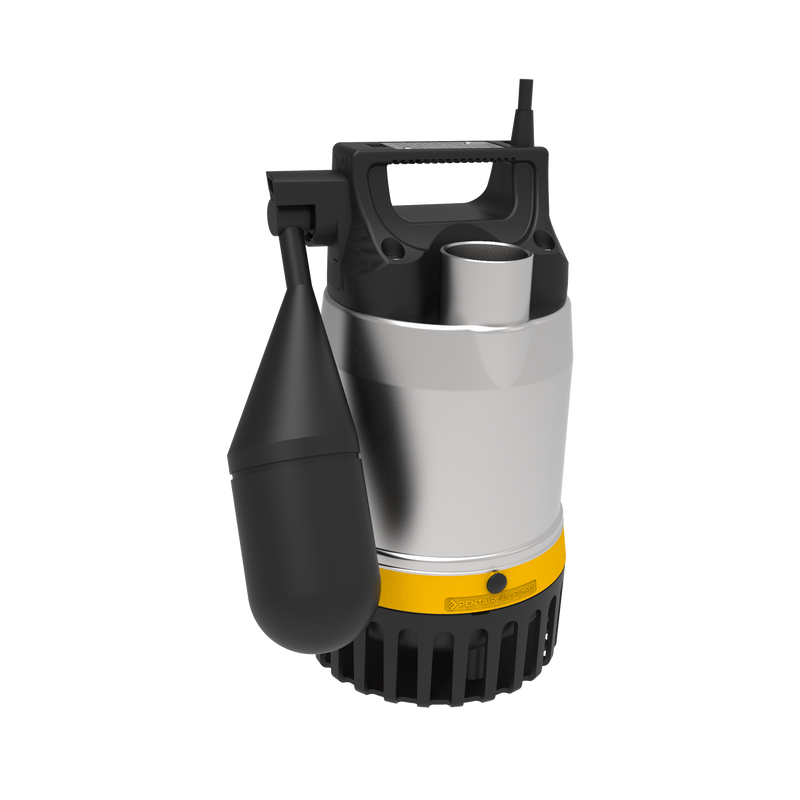

The Jung Pumpen Multidrain UV3 Series is a submersible drainage pump designed for wastewater, drainage and dewatering installations. For these installations, it helps provide dependable water movement and efficient system performance through durable stainless steel components. Multiple models or configurations are available to suit different flow, pressure, capacity and installation requirements.
Warranty 1 year
Enquire About This Pump
🔧 NZ-based technical support 📄 Trade pricing on request 🕐 Quotes typically same day

Applications

  • Rainwater
  • Domestic grey water
  • Lightly polluted wastewater
  • Mobile/portable use

Key Features

  • High quality stainless steel design
  • Especially suitable for mobile use
  • Cooling jacket for motor housing
  • Free passage 10 mm
  • Discharge branch vertical 1 1/4”
  • Flushing device
  • Self ventilation
  • Moisture sealed cable inlet
  • Fluid temperature 35 °C, temporarily 70 °C (10 min.)

Downloads

Multidrain UV3 Series Technical Data Sheet PDF Multidrain UV3 Series Product Flyer PDF Multidrain UV3 Series Manual PDF Multidrain UV3 Series Spare Parts PDF

Technical specifications

View full specification table
Brand Jung Pumpen
Model Multidrain UV3 Series
Equipment Category Submersible Drainage Pump
Fluid Temperature 35 °C
Free Passage 10mm
Made in Germany
Warranty 1 year

Frequently asked questions

What is the Multidrain UV3 Series used for?
The Jung Pumpen Multidrain UV3 is a portable submersible drainage pump for rainwater, domestic greywater and lightly polluted wastewater. It is well suited to mobile drainage jobs and narrow pits.
Can the Multidrain UV3 pump greywater?
Yes. The UV3 is designed for domestic greywater, rainwater and lightly polluted wastewater. It has a 10 mm free passage, so it is intended for liquids without larger solids.
How low can the Multidrain UV3 drain water?
When the strainer base is removed, the Multidrain UV3 can suction residual water down to approximately 5 mm.
Can the Multidrain UV3 handle hot water?
The pump is rated for fluid temperatures up to 35°C, with temperatures up to 70°C permitted temporarily for up to 10 minutes.
