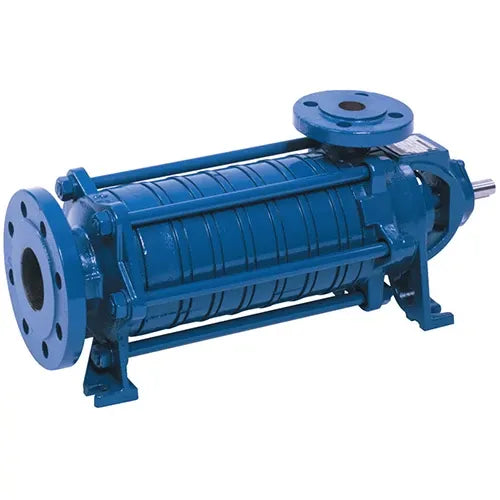

SIHI® CEH Side-Channel Pump
Flowserve Industrial Process Pumps Available to Order

SIHI® CEH Side-Channel Pump

Pumps of the series CEH-X/CEH have a segmental type construction with open vane wheel impellers. The construction of the CEH pump is a so-called centrifugal combined system. This combination pump is suited with a centrifugal stage serial connection before the side channel stages in order to obtain a more favorable NPSH.
Flow Rate Up To 35 m³/h
Head Up To 354 m
Max Temperature 180 °C
Enquire About This Pump
🔧 NZ-based technical support 📄 Trade pricing on request 🕐 Quotes typically same day

Applications

  • Chemicals
  • Water Management
  • General Industries

Key Features

  • Speed: max. 1800 rpm
  • Casing pressure: up to 40 bar
  • Problem-free pumping of clean liquids at unfavorable suction side conditions
  • Suitable for positive suction heads below 0.5 m
  • The different material possibilities, uniform dimensions, performance characteristics, and standard exchangeable components make the CEH particularly recommendable for applications in the pharmaceutical, chemical/petrochemical, plastic, and oil markets
  • Low NPSH and positive suction head make the CEH-X/CEH very suitable for the pumping of liquefied gasses and liquids under vapor pressure like condensate, refrigerant, boiler feed water or LPG

Downloads

SIHI® CEH Side-Channel Pump Brochure PDF

Technical specifications

View full specification table
Brand SIHI®
Model CEH Side-Channel Pump
Equipment Category Side Channel Pump
Materials Grey cast iron, nodular iron, stainless steel
Shaft Seals Gland packing, mechanical seal, magnetic coupling
Size Range 6 Sizes / up to 8 stages

Frequently asked questions

What is the SIHI CEH side-channel pump used for?
The SIHI CEH is an industrial side-channel pump for clean liquids where suction conditions are challenging. Typical applications include condensate, refrigerants, boiler feed water, LPG and liquids near their vapour pressure.
What is low NPSH and why does it matter?
NPSH relates to the pressure available at the pump inlet. The CEH’s low-NPSH design helps reduce cavitation risk where suction conditions are limited or the liquid is close to boiling.
How many sizes and stages are available?
The CEH range includes six pump sizes with up to eight stages, allowing it to be matched to different flow and head requirements.
How do I choose the right SIHI CEH pump?
Selection depends on the liquid, vapour pressure, required flow and head, suction conditions, temperature, materials and seal arrangement. Contact us and we can help identify a suitable configuration.
