CSM240 Vortex Pump
CSM240 Vortex Pump CSM240 Vortex Pump CSM240 Vortex Pump CSM240 Vortex Pump
Onga Submersible Sump Available to Order

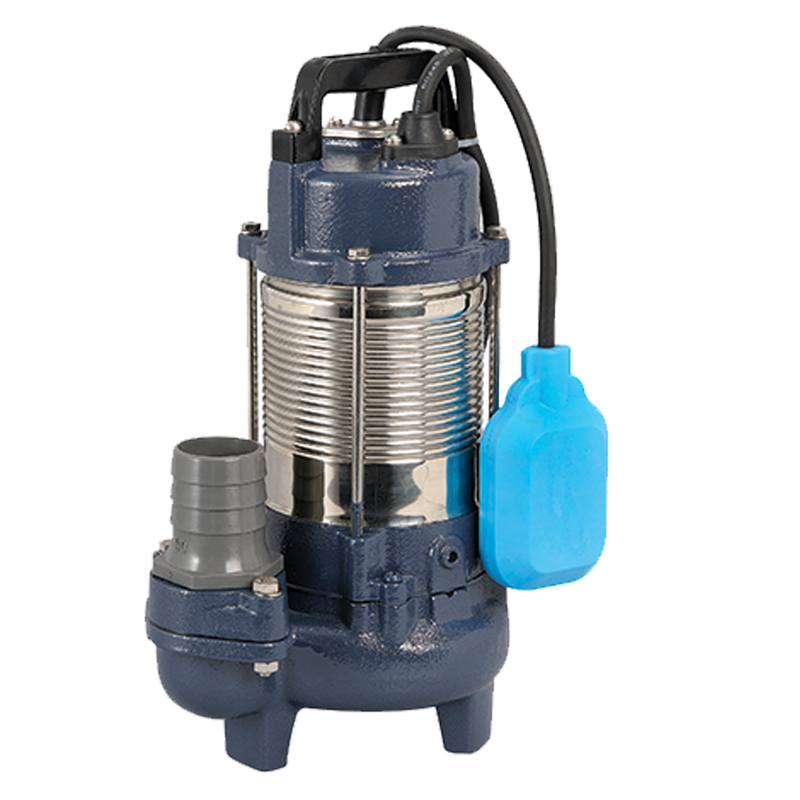

CSM240 Vortex Pump

The Onga CSM240 Vortex Pump is a submersible drainage pump designed for residential, rural, commercial and industrial water systems. For these installations, it helps provide dependable water movement and efficient system performance through robust cast-iron construction.
Max Head 10 m
Max Flow 250 lpm
Warranty 2 years
Enquire About This Pump
🔧 NZ-based technical support 📄 Trade pricing on request 🕐 Quotes typically same day

Applications

  • Rainwater/wastewater/groundwater disposal
  • Dewatering
  • Greywater
  • Ponds/fountains

Key Features

  • 10 mm free passage
  • Vortex impeller
  • Carbon ceramic mechanical seal
  • Auto cut out switch
  • Thermal overload protection
  • Float switch
  • Moisture sealed cable inlet

Downloads

CSM240 Vortex Pump Technical Data Sheet PDF CSM240 Vortex Pump Product Flyer PDF CSM240 Vortex Pump Manual PDF CSM240 Vortex Pump Spare Parts PDF

Technical specifications

View full specification table
Brand Pentair Sta-rite
Model CSM240VF
Equipment Category Cast Iron Vortex Submersible Pump
Free Passage 10mm
Max Head 10 m
Maximum Flow 250lpm
Pump Casing Cast iron
Impeller Cast iron
Motor Shaft 401SS
Mechanical Seal Carbon ceramic mechanical seal with oil chamber and primary lip seal
IP Rating IP68
Warranty 2 years

Frequently asked questions

What is the CSM240 Vortex Pump used for?
The CSM240 is a submersible vortex pump for dewatering, drainage, water treatment circulation, greywater, commercial ponds and fountains.
What is the maximum flow rate of the CSM240?
The CSM240 can deliver up to 250 litres per minute. Actual flow depends on the lift height, pipework and installation.
Does the CSM240 have overload protection?
Yes. It includes automatic thermal overload protection and an automatic cut-out switch to help protect the motor.
Is the CSM240 fully submersible?
Yes. The pump is submersible and has an IP68 protection rating.
