VB-100 MHm Sensor
VB-100 MHm Sensor VB-100 MHm Sensor VB-100 MHm Sensor VB-100 MHm Sensor VB-100 MHm Sensor VB-100 MHm Sensor
TECO TECO Vibration Sensor Available to Order

VB-100 MHm Sensor

The TECO VB-100 MHm Sensor is a motor vibration monitoring sensor designed for industrial, agricultural and commercial drive applications. For these installations, it helps support dependable operation, efficient performance and easier equipment monitoring through application-specific control, protection and monitoring functions.
Enquire About This Product
🔧 NZ-based technical support 📄 Trade pricing on request 🕐 Quotes typically same day

Applications

  • Real-time motor vibration monitoring; bundled free on Southern Cross Motor Pumps 180 frame+ (22kW 2P/18.5kW 4P)

Key Features

  • Vibration data measurement and display, velocity RMS (mm/s)
  • Dual-digit 7-Segment LED Display
  • Display velocity RMS range 0.1mm/s ~ 99mm/s
  • Reference from ISO-10816 vibration measurement specification
  • Measurement button is provided to instantly display the vibration velocity RMS for the first 10 seconds and the health index for another 10 seconds

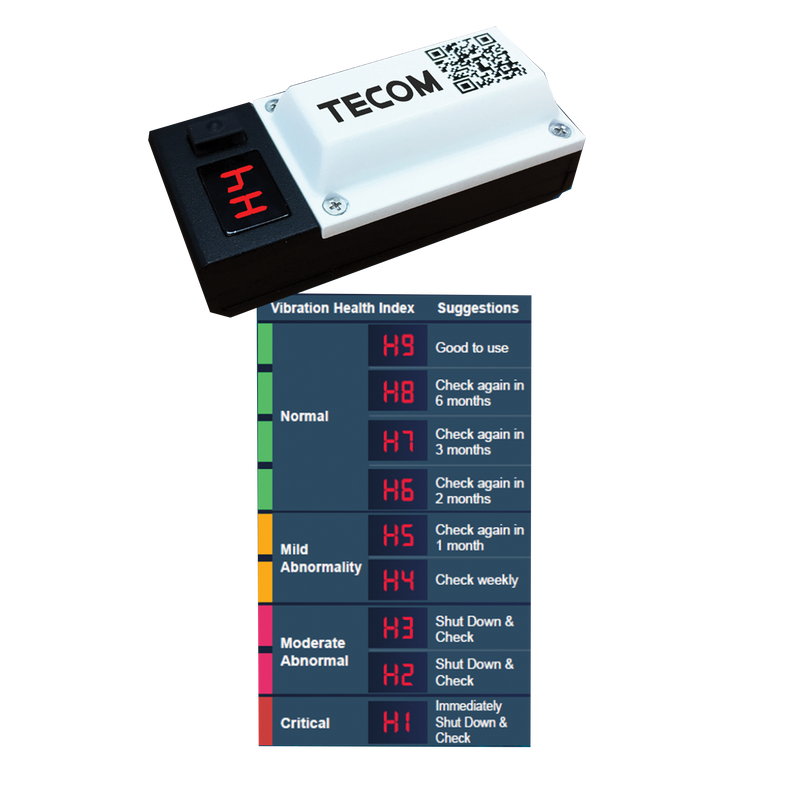

  • Vibration measurement, smart display: (1) RMS vibration value; (2) Alarm (LED flashing); (3) Vibration health index (H1~H9, H9 means the healthiest)
  • Replaceable battery design (Panasonic CR2)
  • Powered by battery, press button to start. No power cord, no signal wire, Battery capacity can be displayed at least 1,000 times
  • Ultra-small size : suitable for all motors of F#132~#250
  • Innovative product and leading the market
  • Dimensions: 59 x 29 x 22.3mm

Downloads

No downloads available.

Technical specifications

View full specification table
Brand TECO
Model VB-100 MHm Sensor
Equipment Category Sensor
Housing Material PC
Installation method Adhesive

Frequently asked questions

What does the VB-100 measure?
The VB-100 measures single-axis vibration velocity RMS in millimetres per second (mm/s), with a measurement range of 0–99 mm/s.
What is the VB-100 MHm Sensor used for?
The VB-100 MHm is a compact vibration meter for monitoring motor vibration on site. It displays the motor’s vibration RMS value and health status in real time.
Does the VB-100 need a mobile app or gateway?
No. The vibration value and health status are displayed directly on the sensor, so it does not require a gateway, mobile phone or management platform for on-site readings.
How do I read the VB-100 vibration measurement?
Press the measurement button to display vibration velocity RMS for the first 10 seconds, followed by the vibration health index for a further 10 seconds.
