Traditional Slim Line Series
Traditional Slim Line Series Traditional Slim Line Series
Filtration Housings Available to Order

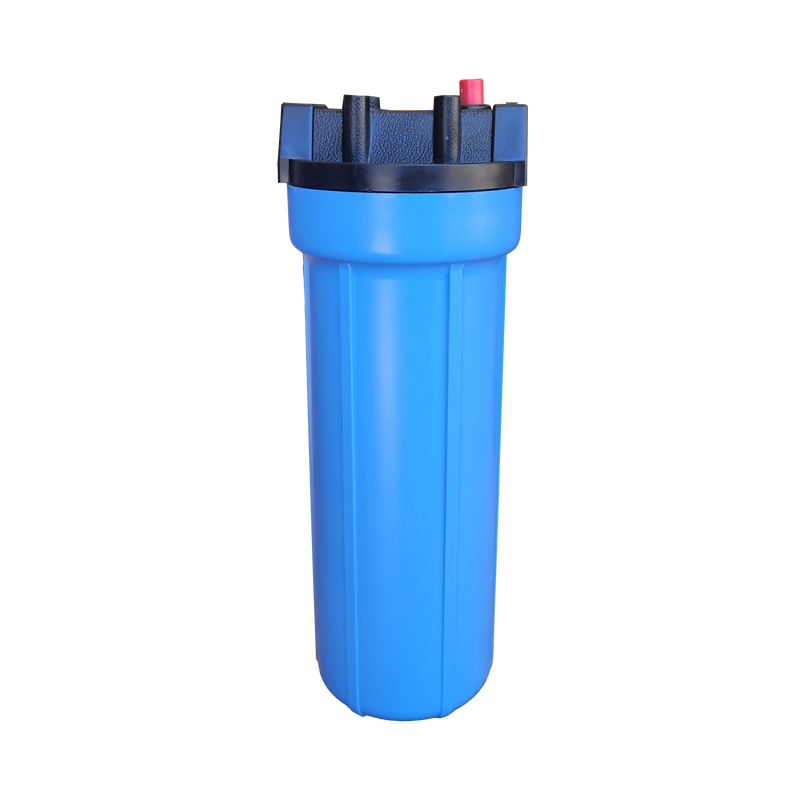

Traditional Slim Line Series

The Traditional Slim Line Series is a water-filter housing designed for polypropylene, offer outstanding chemical compatibility and are ideal for use. Suitable for residential, rural and commercial water-treatment systems, it helps deliver cleaner, more consistent water and reliable filtration performance through durable stainless-steel components. Multiple models or configurations are available to suit different flow, filtration, capacity and connection requirements.
Max Pressure 125 psi (8.6 bar)
Enquire About This Product
🔧 NZ-based technical support 📄 Trade pricing on request 🕐 Quotes typically same day

Applications

  • Applications with minimal available space

Key Features

  • Slim design reduces space required for installation without sacrificing capacity
  • Available in 5”, 10” and 20” lengths
  • Optional pressure relief button on inlet side of cap
  • Leak-proof seal

Downloads

Traditional Slim Line Series Technical Data Sheet PDF Traditional Slim Line Series Product Flyer PDF Traditional Slim Line Series Spec Sheet PDF

Technical specifications

View full specification table
Brand Pentair
Model Traditional Slim Line Series
Equipment Category Filter Housings
Lengths Available in 5”, 10” and 20” lengths
Housing Polypropylene (opaque)
Cap Reinforced polyproplene
Button Assembly 300 Series stainless steel, EPDM, and polyproplene
O-Ring EPDM
Temperature Rating 40-125°F (4.4 - 51.7°C)
Maximum Pressure 125 psi (8.6 bar)

Frequently asked questions

What cartridges fit a Traditional Slim Line housing?
Traditional Slim Line housings are compatible with DOE or double open end, filter cartridges. Contact us to confirm the correct cartridge size and filtration media for your housing and water treatment needs.
Are Traditional Slim Line housings suitable for small installation spaces?
Yes. Their slim profile is designed to reduce the space needed for installation while retaining filtration capacity.
What sizes are available in the Traditional Slim Line Series?
The range is available in 5-inch, 10-inch and 20-inch housing lengths.
Are clear and opaque housing options available?
Yes. The range is available with clear or opaque sumps. A clear sump allows onsite checking of water flow, cartridge condition and filter life.
