14 Series
14 Series 14 Series 14 Series 14 Series
Onga Water Transfer Available to Order

14 Series

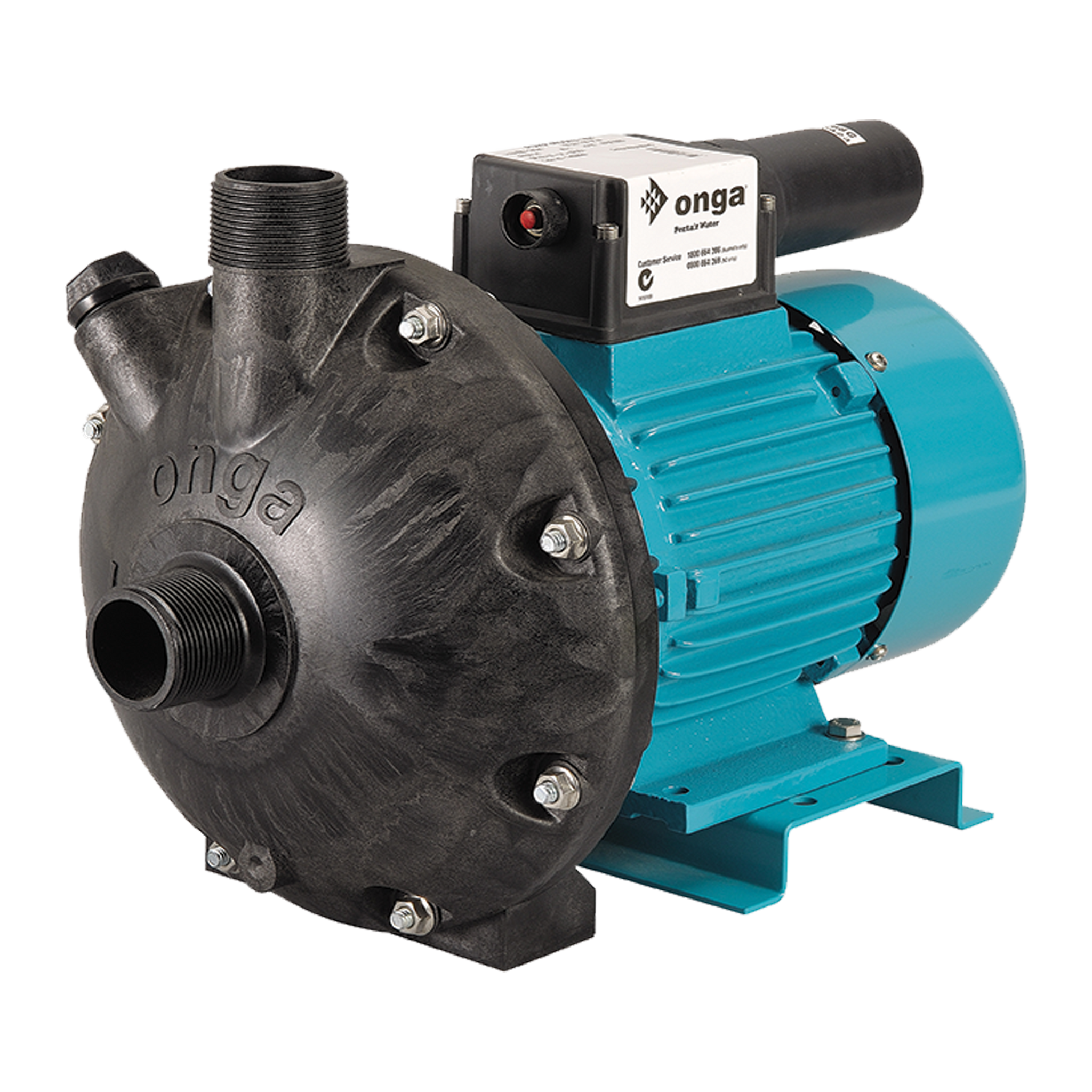

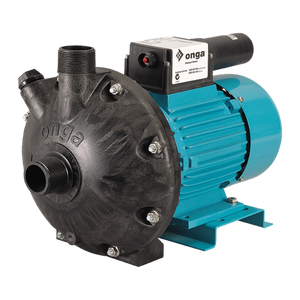

The Onga 14 Series is an industrial centrifugal pump designed for domestic, industrial or rural water transfer. Suitable for residential, rural, commercial and industrial water systems, it helps provide dependable water movement and efficient system performance through durable, application-focused construction. Multiple models or configurations are available to suit different flow, pressure, capacity and installation requirements.
Max Head 41 m
Max Flow 455 lpm
Warranty 1 year
Enquire About This Pump
🔧 NZ-based technical support 📄 Trade pricing on request 🕐 Quotes typically same day

Applications

  • Domestic/industrial/rural transfer
  • Washdown
  • Tank filling
  • Irrigation

Key Features

  • High-grade corrosion-resistant materials
  • Award-winning Hi-Flo impeller
  • Strong and durable construction

Downloads

14 Series Technical Data PDF 14 Series Product Flyer PDF 14 Series Manual PDF 14 Series Spare Parts PDF

Technical specifications

View full specification table
Brand Onga
Model 14 Series
Equipment Category Moulded Water Transfer Centrifugal Pumps
Maximum Head 41m
Maximum Flow 455lpm
RPM 2300
Fluid Water
Maximum Water Temperature 70°C
Minimum Water Temperature 1°C
Maximum Ambient Temperature 55°C
Maximum Working Pressure 630kPa
Insulation Class B
IP Rating IP44
Warranty 1 year

Frequently asked questions

Can I use an Onga 14 Series pump for washdown or tank filling?
Yes. Typical uses include washdown, tank filling, water circulation and general domestic, industrial or rural water transfer.

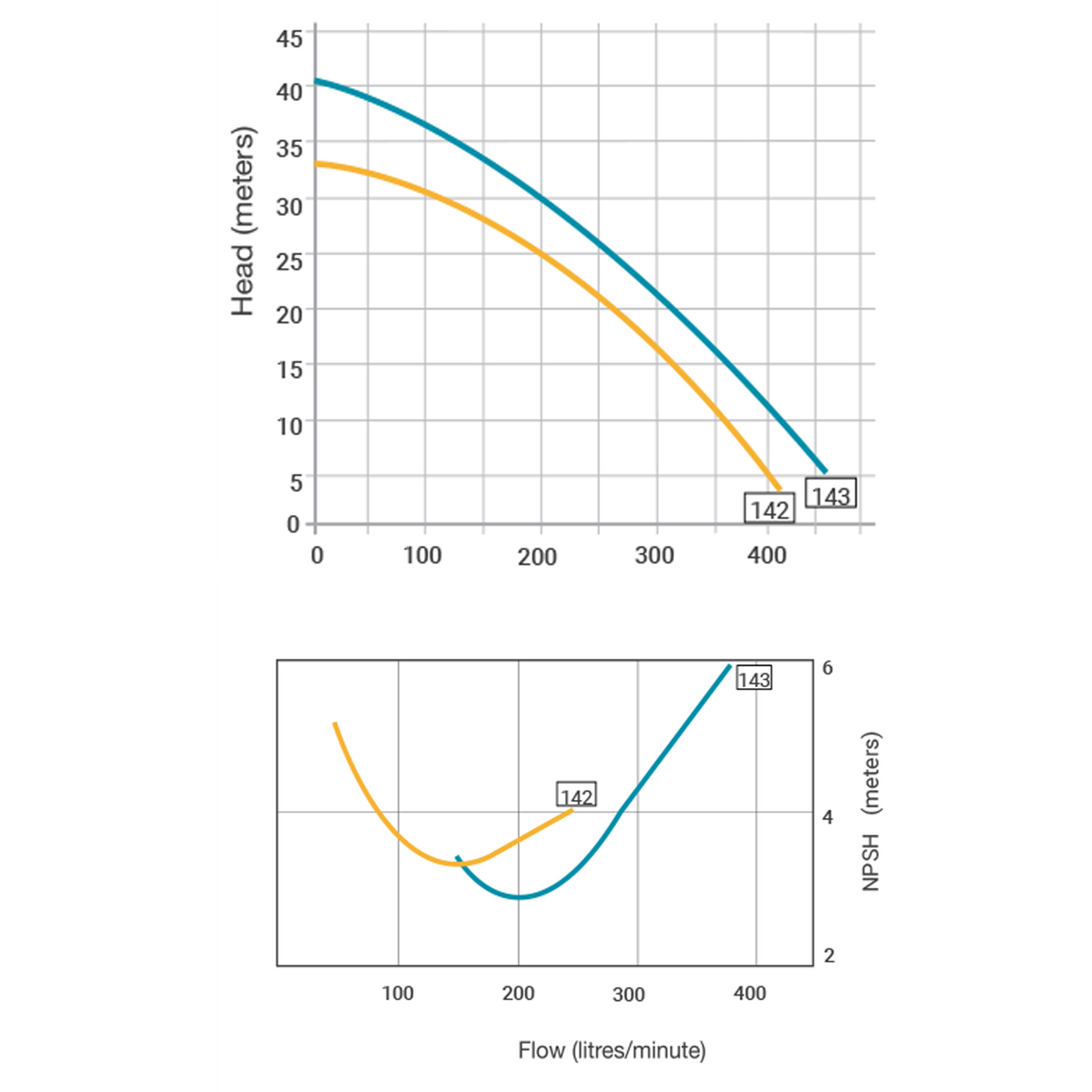

How much water can an Onga 14 Series pump move?

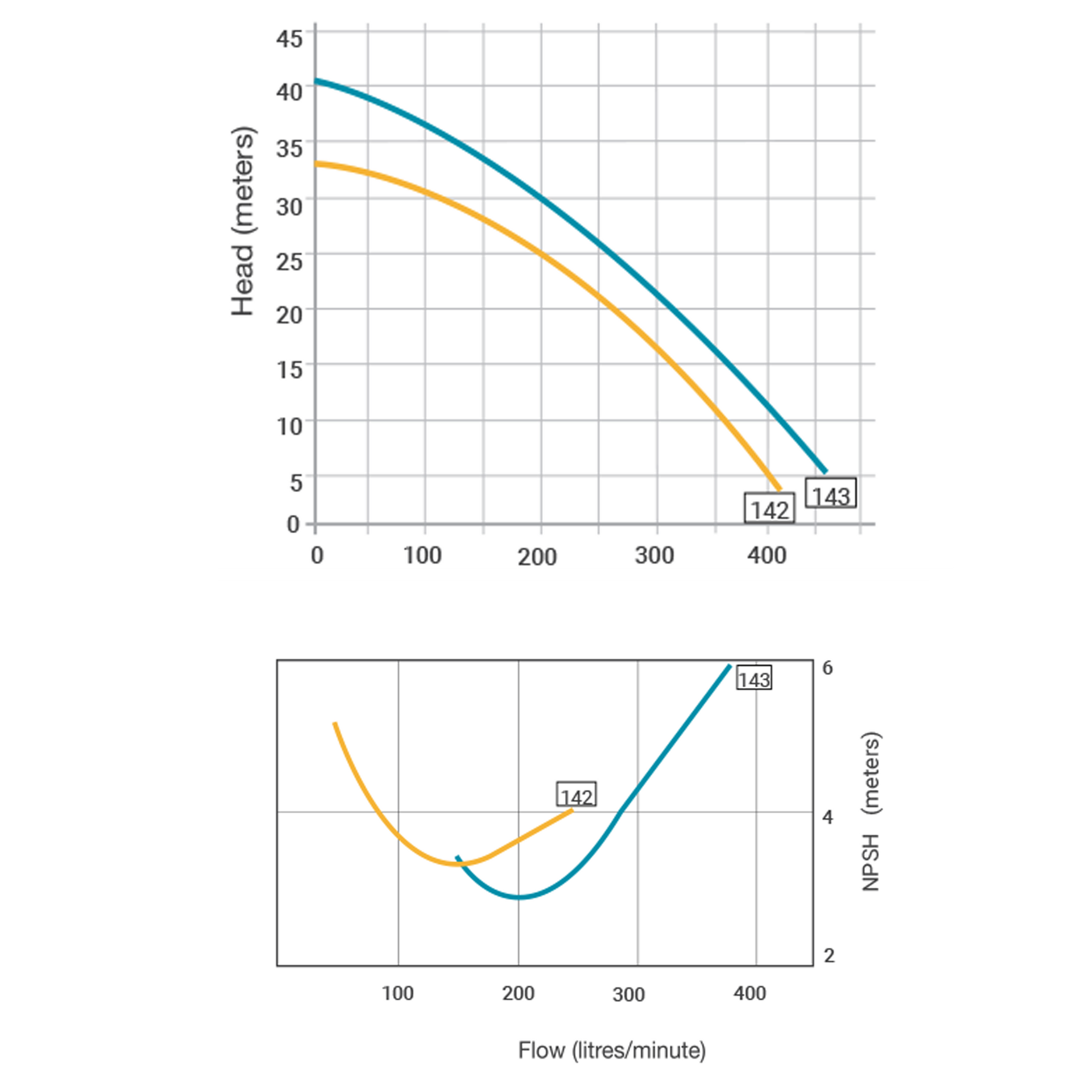

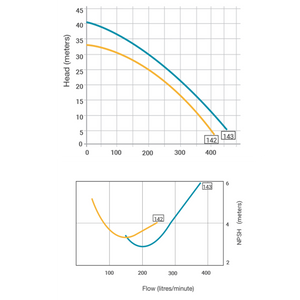

Depending on the model and system conditions, the range can deliver up to 455 litres per minute with a maximum head of 41 metres.
Is the Onga 14 Series available in single-phase and three-phase models?
Yes. The range includes both single-phase and three-phase options to suit different site power supplies and duties.
Will an Onga 14 Series pump fit my existing pipework?

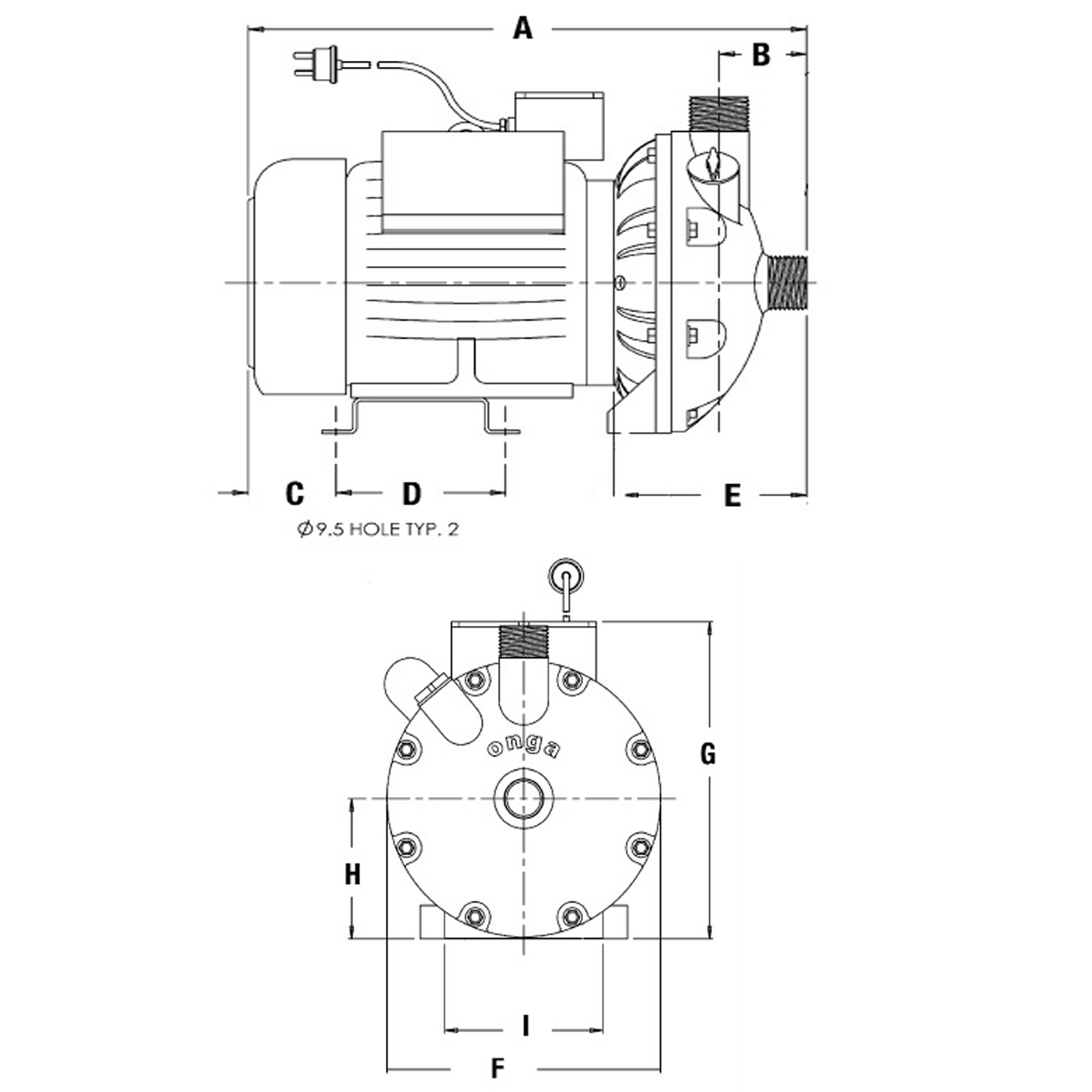

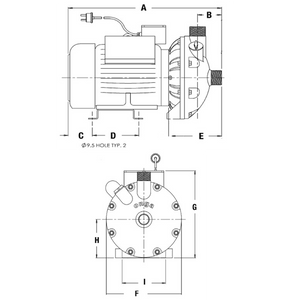

The range uses 1½-inch BSP male inlet and outlet connections. Contact us to confirm the correct fittings, pipe size and model for your system.
