5PSP Series
5PSP Series 5PSP Series 5PSP Series 5PSP Series
Aquatics Pool Pumps Available to Order

5PSP Series

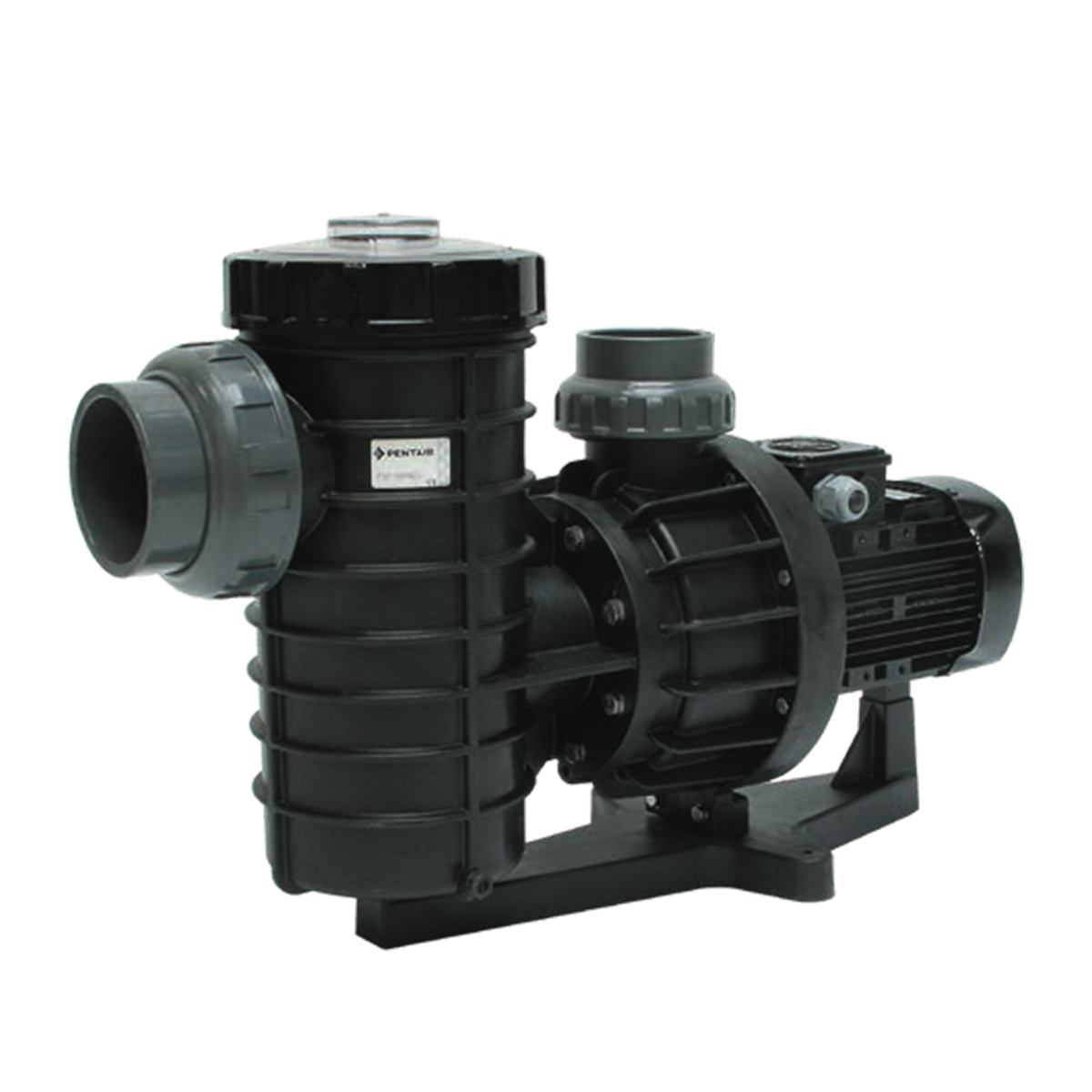

The 5PSP Series is a pool circulation pump designed for residential and commercial swimming pool installations. For these installations, it helps provide dependable water movement and efficient system performance through glass-reinforced, corrosion resistant construction. Multiple models or configurations are available to suit different flow, pressure, capacity and installation requirements.
Warranty 1 year commercial warranty*
Enquire About This Pump
🔧 NZ-based technical support 📄 Trade pricing on request 🕐 Quotes typically same day

Applications

  • Pool pre-filtering/recirculation
  • Fish farming/aquaculture
  • Water circulation

Key Features

  • New improved design and additional 12.5Hp model
  • Especially designed for swimming pool, aquatic and aquaculture applications
  • Seawater approved up to 4% salt concentration
  • Large pre-filter
  • Injection molded components of high quality glass reinforced thermoplastic
  • CE & TUV Approved, IP55 protected, IE2 compliant TEFC motor
  • Corrosion resistant, high grade stainless steel motor shaft
  • Metric and imperial connections available
  • High chemical resistance with all metal internal components being stainless steel

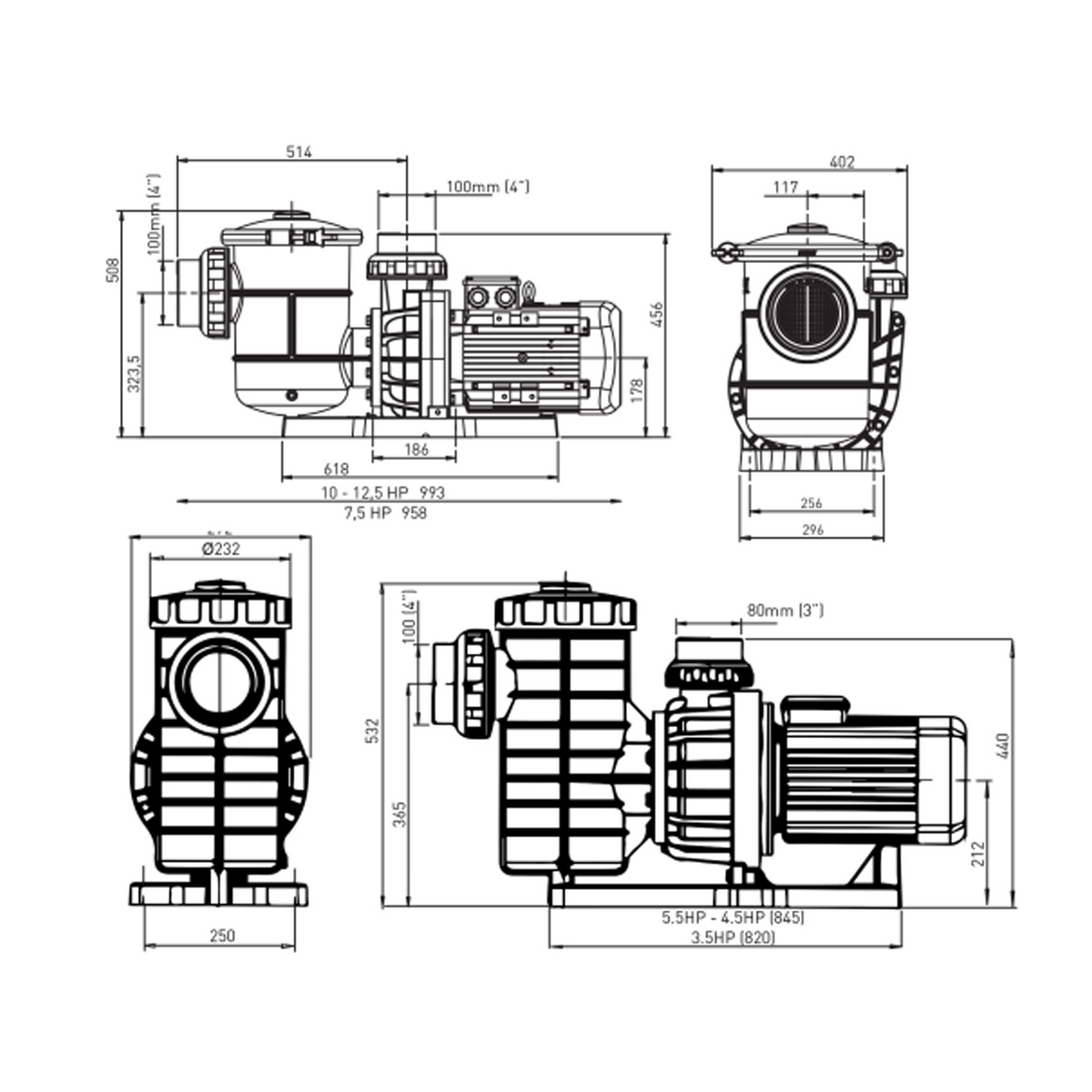

  • 4"/100mm suction, 3"/80mm discharge (4"/100mm discharge on 7.5, 10 and 12hp)
  • 1 year commercial warranty*

Downloads

5PSP Series Technical Data Sheet PDF 5PSP Series Product Flyer PDF 5PSP Series Manual PDF 5PSP Series Spare Parts PDF

Technical specifications

View full specification table
Brand Pentair
Model 5PSP Series
Equipment Category Commercial High Performance Pool Pumps
Corrosion Corrosion Resistant
IP Rating 55
Warranty 1 year commercial warranty

Frequently asked questions

Is the 5PSP Series suitable for commercial pool circulation?
Yes. The 5PSP Series is designed for commercial swimming pools, aquatic facilities and aquaculture applications. It is used for pre-filtration and recirculating pool water.
Does the 5PSP pool pump self-prime?
Yes. The 5PSP is a self-priming, single-stage centrifugal pump with a large pre-filter to collect debris before it reaches the pump.
Which 5PSP pump size do I need for my pool or aquaculture system?
The range includes 3.5 HP, 4.5 HP, 5.5 HP, 7.5 HP, 10 HP and 12.5 HP models. Contact us with your required flow rate, total head and pipe size, and we can help select the right model.
