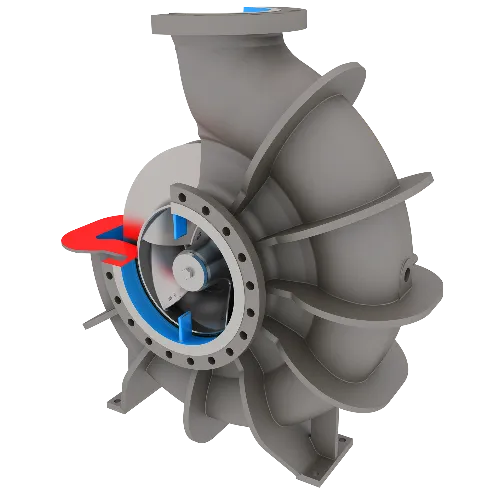

Flowserve DS-RO Industrial Process Pump
Flowserve Industrial Process Pumps

Flowserve DS-RO Industrial Process Pump

The Flowserve DS-RO single-stage, end-suction, foot-mounted pump is engineered specifically for auxiliary applications found in reverse osmosis desalination processes. This versatile pump is well-suited for plant support services such as filtered water, low- or high-pressure feed boosting, potable water, backwash and others. Optimized hydraulics and high-alloy materials of construction, like ASTM A890 Grade 5A/6A super duplex stainless steel, provide high-efficiency performance and long-term reliability that result in increased uptime with low cost of ownership.
Max Flow 11,000 m³/h
Max Head 180 m
Max Pressure 27 bar (392 psi)
Enquire About This Pump
🔧 NZ-based technical support 📄 Trade pricing on request 🕐 Quotes typically same day

Applications

  • Water Management
  • Desalination

Key Features

  • Temperatures to 45°C (113°F)
  • Frequency of 50 or 60 Hz; compatible with VFD applications
  • Sizes from 200 to 700 mm (8 to 28 in)
  • A rigid shaft and double-volute casing keep shaft deflection low, reducing radial load and promoting high sustained efficiency.
  • End-suction design with a choice of three alternative discharge nozzle locations provides system flexibility.
  • Materials of construction are designed to withstand the corrosive environments typical of desalination processes.
  • Double-volute casing provides stable operation. Radial thrust loads are minimized, reducing vibration and mechanical loads on all components.
  • Parts interchangeability over a range of pump sizes lowers spare part inventories and costs
  • A spacer-type coupling allows full inspection of the back pullout type pump in minimum time, without disturbing suction and discharge connections.
  • The closed impeller utilizes three dimensionally contoured blades extending into the impeller, combining high efficiencies and low NPSHR.

Downloads

Flowserve DS-RO Industrial Process Pump Brochure PDF

Technical specifications

View full specification table
Brand Flowserve
Model Flowserve DS-RO Industrial Process Pump
Equipment Category Overhung Pumps

Frequently asked questions

What is the Flowserve DS-RO pump used for?
The Flowserve DS-RO is a single-stage, end-suction industrial process pump designed for auxiliary duties in reverse-osmosis desalination systems.
Is the DS-RO suitable for seawater desalination?
Yes. The DS-RO is engineered for reverse-osmosis desalination processes, including seawater and brackish-water applications. Contact us to confirm the right materials and configuration for your water chemistry.
What materials are used in the DS-RO pump?
The DS-RO uses high-alloy materials designed for corrosive desalination environments, including ASTM A890 Grade 5A/6A super-duplex stainless steel options.
What is the benefit of the DS-RO double-volute casing?
The double-volute casing helps minimise radial thrust loads, reducing vibration and mechanical loads on pump components for more stable operation.
