Flowserve HED/HED - DS Between Bearings Pumps - Radially Split, Single Case
Flowserve Single Case Pumps Available to Order

Flowserve HED/HED - DS Between Bearings Pumps - Radially Split, Single Case

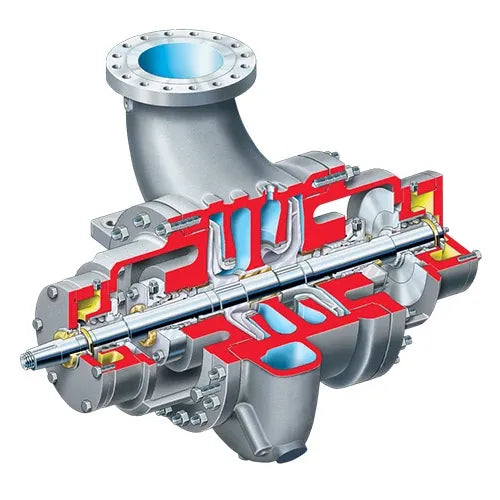

The HED/HED-DS is a between bearing, radially split, two-stage, centerline mounted pump engineered for safe, reliable operation in heavy-duty process services and elevated temperatures.
Flow Rate Up To 2000 m³/h (8800 gpm)
Head Up To 650 m
Max Pressure 120 bar (1750 psi)
Enquire About This Pump
🔧 NZ-based technical support 📄 Trade pricing on request 🕐 Quotes typically same day

Applications

  • Oil & Gas
  • Downstream Processing
  • Upstream Exploration & Production
  • Midstream Transportation

Key Features

  • Temperatures to 450°C (842°F)

Downloads

Flowserve HED/HED - DS Between Bearings Pumps Brochure PDF Flowserve HED/HED - DS Between Bearings Pumps Manual PDF

Technical specifications

View full specification table
Brand Flowserve
Model Flowserve HED/HED - DS Between Bearings Pumps - Radially Split, Single Case
Equipment Category Between Bearings Pumps
Size Range 2" to 12"
Standards ISO 13709 / API 610 BB2

Frequently asked questions

What is the Flowserve HED/HED-DS pump used for?
The Flowserve HED/HED-DS is a heavy-duty, two-stage process pump designed for reliable operation in demanding, high-temperature services, particularly in the oil and gas industry.
What type of pump is the HED/HED-DS?
It is a between-bearings, radially split, single-case, centreline-mounted centrifugal pump with two stages.
What nozzle configurations are available?
The HED/HED-DS can be configured with top-top, side-top or side-side nozzle orientations to suit pipework layout and site requirements.
How do I choose the right HED/HED-DS pump?
Contact us with your required flow, head, liquid, temperature, pressure, suction conditions and pipework layout, and we can help identify a suitable configuration.
