HTP750VR

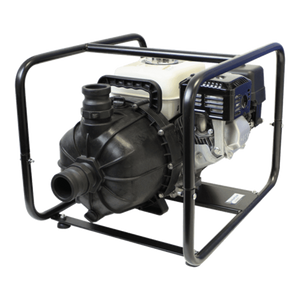

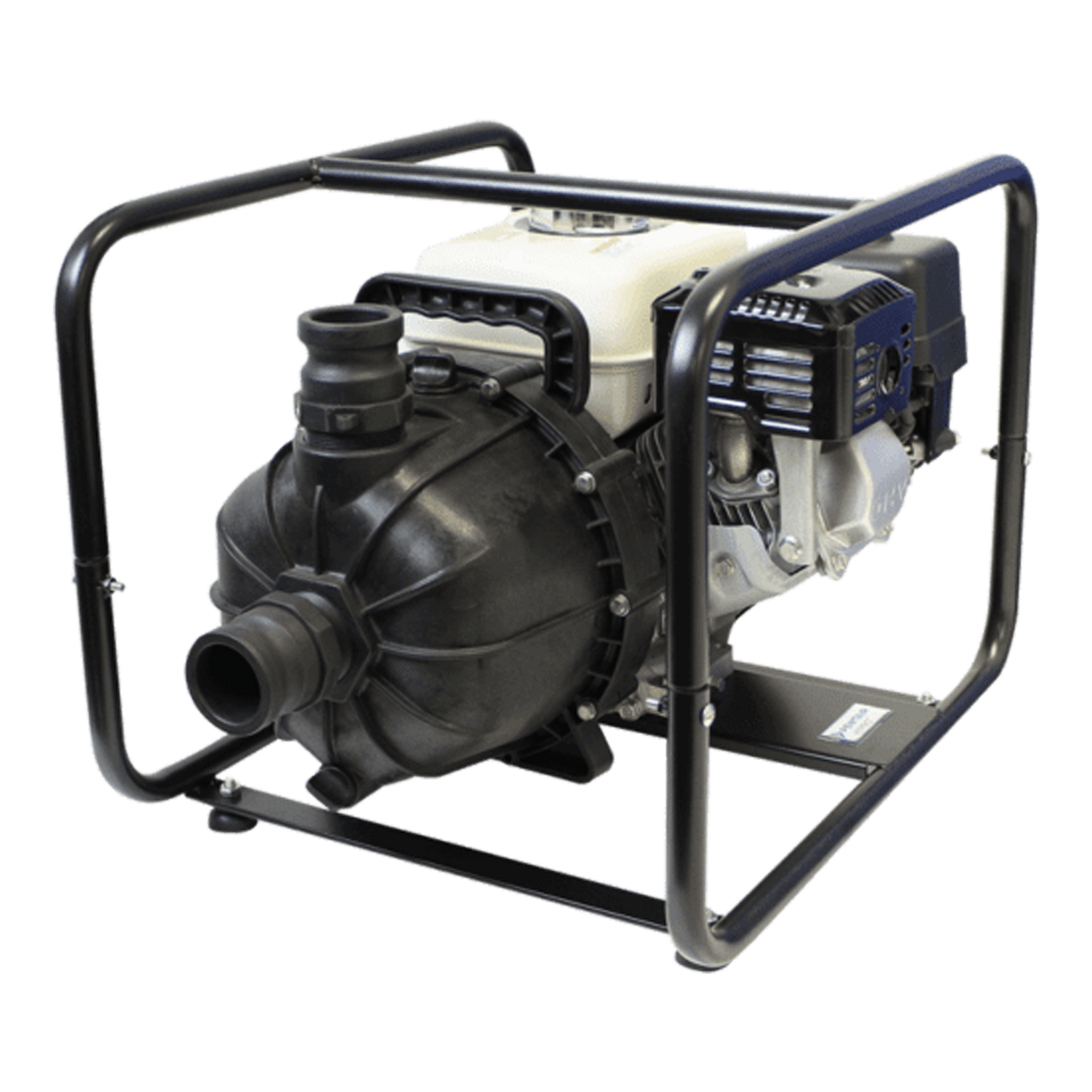

The HTP750VR is a versatile, economic, water and chemical transfer pump powered by a reliable Honda 6.5hp engine. The pump casing is manufactured from polypropylene with 2” suction and discharge ports providing high volume capacity.

Applications

• Irrigation
• Tank filling
• Flood water removal
• Liquid fertiliser
• Chemical transfer
• Liquid fertiliser transfer.

Key Features

• High strength nylon impeller handles solid particles in suspension up to 20mm
• High quality VITON mechanical seal and inlet valve for reliability and longevity
• Viton seal kit
• 2” connections for high volume capacity
• Polypropylene housing for chemical transfer
• Roll frame for fitted stability and mobility
• Quick connect camlock fittings supplied
• Lightweight, easy to handle
• Max. flow: 750 L/min
• Max. head: 40m
• Max. suction: 6m
• Max. pressure 400kPa
• Honda GX200 6.5 hp engine
• Pump and engine repair parts available for ease of servicing.

Warranty

2-year warranty
