INNOMAG® TB-MAG Fluoropolymer-Lined, Magnetic Drive ISO/ASME (ANSI) Chemical Process Pump
Flowserve Chemical Process Pump Available to Order

INNOMAG® TB-MAG Fluoropolymer-Lined, Magnetic Drive ISO/ASME (ANSI) Chemical Process Pump

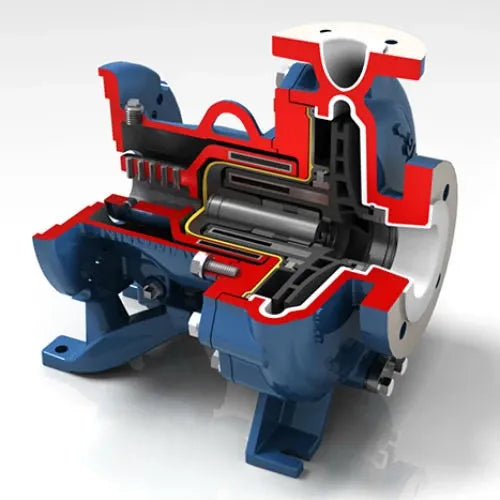

Compliant with ASME B73.3 or ISO 2858/15783 standards, the INNOMAG TB-MAG pump is engineered to provide low total cost of ownership and exceptional leakage protection in extremely corrosive and environmentally critical applications. The key to its proven performance is its revolutionary dynamic thrust balancing system. This system eliminates the need for thrust bearings and results in highly efficient operation, even in applications containing solids.
Flow Rate Up To 360 m³/h
Head Up To 153 m
Max Pressure 25 bar (365 psi)
Enquire About This Pump
🔧 NZ-based technical support 📄 Trade pricing on request 🕐 Quotes typically same day

Applications

  • Conventional Steam
  • Basic (Organic & Inorganic) Chemicals
  • Specialty (Fine & Consumer) Chemicals
  • Biofuels
  • Pharmaceutical
  • Petrochemicals
  • Mining
  • Water Management
  • Oil & Gas Downstream Processing
  • Pulp & Paper
  • Steel & Primary Metals
  • Food & Beverage
  • Corn Wet Milling & Ethanol
  • Other Industries

Key Features

  • Temperatures -29°C (-20°F) to 121°C (250°F)
  • Solid handling: 30% by volume
  • Dynamic Thrust Balancing System eliminates the need for thrust bearings
  • Pump efficiency, reliability and longevity are improved, while operating costs are reduced
  • Pure ETFE Casing Liner is vacuum rated and has a minimum thickness of 3 mm (0.125 in)
  • One-piece ETFE Impeller and Inner Magnet Assembly ensures maximum torque transmission, simplifies maintenance and eliminates balancing
  • Enclosed impeller with unobstructed eye delivers high efficiency and low NPSHR
  • Double-sealed Inner Magnets offer unmatched resistance to corrosive permeation by sheathing the magnets in 316L stainless steel before they are injection molded into the impeller assembly
  • One-piece Composite Containment Shell consists of aramid and carbon fiber reinforced ETFE for optimal leakage protection and corrosion resistance
  • Composite construction means zero eddy current losses for maximum efficiency
  • Stationary Cantilevered Pump Shaft is oversized to handle all radial loads while maximizing flow and minimizing NPSHR
  • Parts Interchangeability among the available sizes reduces inventory costs and eases maintenance
  • Superior solid handling capabilities allow reliable performance up to 30% solids content of 0,13 mm

Downloads

INNOMAG® TB-MAG Fluoropolymer-Lined, Magnetic Drive ISO/ASME (ANSI) Chemical Process Pump Manual PDF INNOMAG® TB-MAG Fluoropolymer-Lined, Magnetic Drive ISO/ASME (ANSI) Chemical Process Pump Brochure PDF INNOMAG® TB-MAG Fluoropolymer-Lined, Magnetic Drive ISO/ASME (ANSI) Chemical Process Pump Maintenance Checklist PDF

Technical specifications

View full specification table
Brand INNOMAG®
Model TB-MAG Fluoropolymer-Lined, Magnetic Drive ISO/ASME (ANSI) Chemical Process Pump
Equipment Category Overhung Pumps

Frequently asked questions

Can the INNOMAG TB-MAG handle solids?
Yes. Its Dynamic Thrust Balancing System eliminates the need for thrust bearings, helping it maintain efficient operation in applications containing solids. The range can handle solids concentrations up to 30% by volume.
What is the INNOMAG TB-MAG pump used for?
The INNOMAG TB-MAG is a fluoropolymer-lined, magnetic-drive chemical process pump designed for extremely corrosive and environmentally critical liquid-handling applications.
What is the benefit of the TB-MAG’s ETFE lining?
The TB-MAG has a pure ETFE casing liner with a minimum thickness of 3 mm. This fluoropolymer lining provides strong chemical resistance for corrosive process liquids.
Which standards does the INNOMAG TB-MAG meet?
The TB-MAG is compliant with ASME B73.3 or ISO 2858/15783 standards. It also has ISO 5199, ATEX and CE options or compliance as applicable to the selected configuration.
