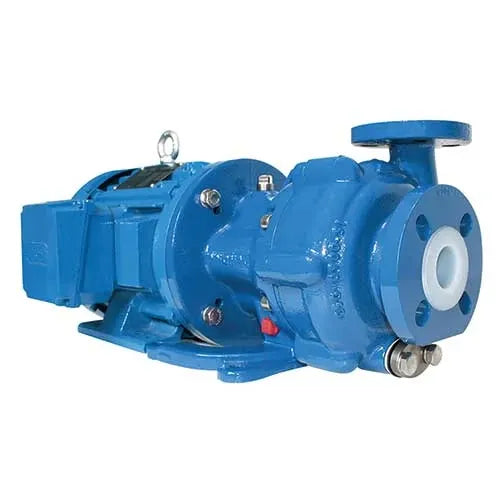

INNOMAG® U-MAG Fluoropolymer-Lined, Magnetic Drive Pump
Flowserve Chemical Process Pump Available to Order

INNOMAG® U-MAG Fluoropolymer-Lined, Magnetic Drive Pump

The INNOMAG U-MAG fluoropolymer-lined, magnetic drive pump provides exceptional safety, performance and value in general purpose chemical process and smaller volume pumping applications in a wide variety of industries. This versatile, compact pump offers outstanding leakage protection for compliance with environmental regulations or “clean floor” initiatives. An available high-purity configuration makes it ideal for applications demanding the strictest purity requirements. Dependable and easy to maintain, the U-MAG will deliver years of reliable, cost-effective service.
Flow Rate Up To 102 m³/h (450 gpm)
Head Up To 50 m (165 ft)
Max Pressure 17 bar (250 psi)
Enquire About This Pump
🔧 NZ-based technical support 📄 Trade pricing on request 🕐 Quotes typically same day

Applications

  • Power
  • Chemicals
  • Mining
  • Water
  • Oil & Gas
  • General Industries

Key Features

  • Application versatility derived from numerous mounting drive options to accommodate site-specific requirements, including gasoline engines for portable and remote chemical transfer, truck uploading or skid and cart oparation
  • Longer service life due to ETFE or optional ultra-high purity PFA construction that offers excellent chemical resistance
  • Regulatory compliance resulting from outstanding leak protection and the CE mark, making it compliant with directive such as ATEX

Downloads

INNOMAG® U-MAG Fluoropolymer-Lined, Magnetic Drive Pump Brochure PDF INNOMAG® U-MAG Fluoropolymer-Lined, Magnetic Drive Pump Manual PDF

Technical specifications

View full specification table
Brand INNOMAG®
Model U-MAG Fluoropolymer-Lined, Magnetic Drive Pump
Equipment Category Chemical Process Pump
Size Range DN25 to 65, 1 in to 2.5 in
Pressure Class Range PN17
Standards ATEX, CE

Frequently asked questions

What does “magnetic drive” mean on an INNOMAG U-MAG pump?
A magnetic-drive pump transfers power through magnets rather than a conventional mechanical shaft seal. This helps provide strong leakage protection in chemical-transfer applications.
What is the benefit of fluoropolymer lining?
The U-MAG uses ETFE lining, with an optional ultra-high-purity PFA construction. These materials provide excellent chemical resistance for suitable process fluids.
What motor and drive options are available?
The U-MAG can be supplied with a range of mounting and drive options to suit site requirements, including gasoline-engine options for portable or remote chemical-transfer applications.
Does the U-MAG meet ATEX requirements?
The U-MAG range has ATEX and CE compliance. Contact us to confirm the required configuration and site classification.
