IntelliValve
IntelliValve IntelliValve
Aquatics Pentair Automation Available to Order

IntelliValve

The IntelliValve is a water-system control product designed for residential, rural, commercial and industrial water systems. For these installations, it helps improve control, monitoring and day-to-day system operation through application-specific control, protection and monitoring functions.
Warranty 2 years limited warranty
Enquire About This Product
🔧 NZ-based technical support 📄 Trade pricing on request 🕐 Quotes typically same day

Applications

  • Pool/aquatic system automation, compatible with Pentair automation

Key Features

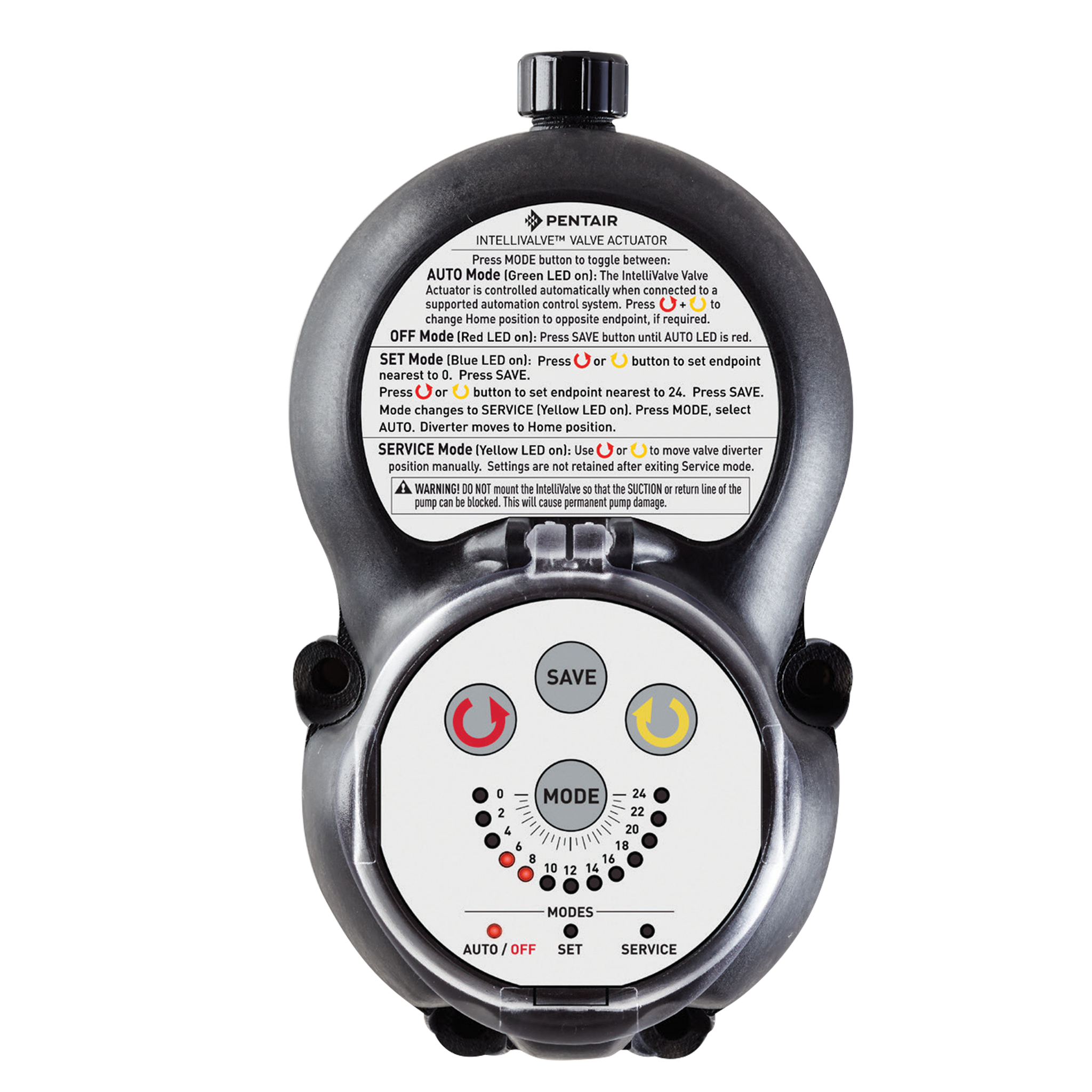

  • Exclusive thirteen (13) LEDs give precise, easy to read indication of valve position
  • Built-in interface allows quick and simple set-up of water flow
  • Sleek, minimalist design is compact and fits easily within any equipment pad
  • Sealed, maintenance-free design is weatherproofed for maximum reliability and extended service life
  • Suitable for 1.5”, 2”, 2.5” and 3” valve sizes
  • 24-volt operation for use with standard automation systems
  • 750 mA max amp draw
  • Adjustable 3.75-degree increments within the maximum 180-degree swing

Downloads

IntelliValve Technical Data Sheet PDF IntelliValve Product Flyer PDF IntelliValve Manual PDF

Technical specifications

View full specification table
Brand Pentair
Model Intellivalve®
Equipment Category Valve Actuator
Warranty 2 year limited warranty

Frequently asked questions

How can I see the IntelliValve position?
IntelliValve has 13 LEDs that provide a precise, easy-to-read indication of the valve position.
Can I adjust the water flow with IntelliValve?
Yes. A built-in push-button interface allows quick and simple adjustment of water flow, with positioning adjustable in 3.75-degree increments across a maximum 180-degree swing.
Does IntelliValve work with pool automation systems?
Yes. IntelliValve operates on 24 volts for use with standard pool automation systems.
Is IntelliValve suitable for outdoor pool equipment areas?
Yes. Its sealed, maintenance-free design is weatherproofed for reliability and a long service life. Its compact form also fits easily within an equipment pad.
