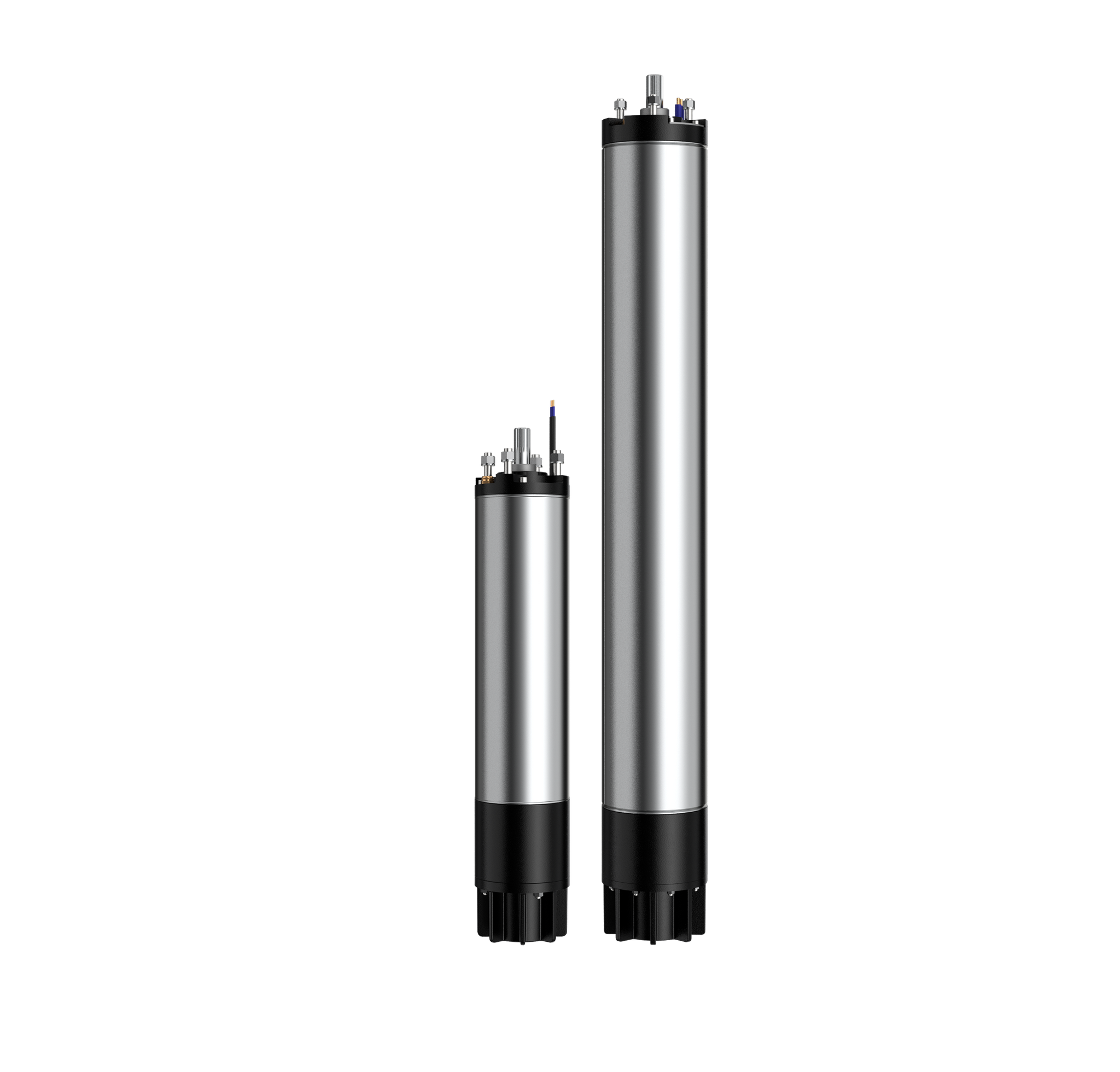

MPC 6 ÷ 10 Series
Caprari Bore Pumps & Motors Available to Order

MPC 6 ÷ 10 Series

The Caprari MPC 6 ÷ 10 Series is a submersible bore pump system designed for medium-large flow rates and heads, thanks to 50. Suitable for groundwater supply, irrigation and rural water systems, it helps provide dependable water movement and efficient system performance through durable stainless steel components. Multiple models or configurations are available to suit different flow, pressure, capacity and installation requirements.
Power Up To 150 kW
Resistance to the Axial Thrust Up To 65.000 N
Temperature Liquid Up To 50°C
Enquire About This Motor
🔧 NZ-based technical support 📄 Trade pricing on request 🕐 Quotes typically same day

Applications

  • Borehole/submersible pumping
  • Inverter-driven applications
  • Hot water

Key Features

  • Robustness
  • Reliability over time

Downloads

MPC 6 ÷ 10 Series Depliant Booster PDF MPC 6 ÷ 10 Series Brochure PDF MPC 6 ÷ 10 Series Technical Catalogue PDF MPC 6 ÷ 10 Series Use and Maintenance Instructions PDF

Technical specifications

View full specification table
Brand Caprari
Model MPC 6 ÷ 10 Series
Equipment Category 6" ÷ 10" Submersible Motors
Power Up To 150 kW
Resistance to the Axial Thrust Up To 65.00 N
Temperature Liquid Up To 50°C

Frequently asked questions

What is the Caprari MPC 6–10 Series?
The Caprari MPC 6–10 Series is the EASYWELL range of water-filled, rewindable submersible motors for borehole pumping systems.
What bore sizes are MPC motors designed for?
The MPC Series includes 6-inch, 8-inch and 10-inch submersible motors.
What is a water-filled rewindable submersible motor?
A water-filled motor uses water as its internal cooling fluid, while rewindable means the motor windings can be serviced or replaced when suitable, rather than replacing the entire motor.
Are different material options available?
Yes. The MPC 6–10 Series is available in different materials and configurations to suit specific installation and water conditions.
