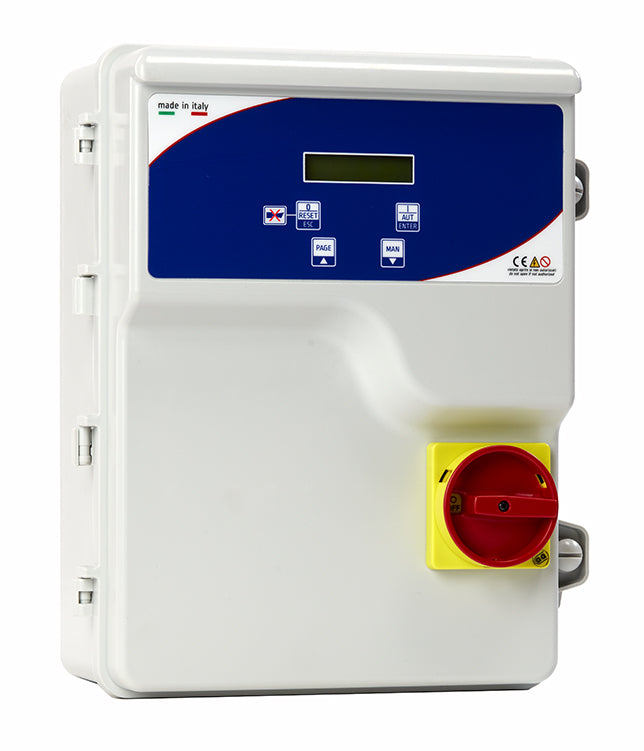

Multiplus 2

Direct starting electronic control panel 2 motors for pressure booster, clean water and sewage with display

  • Multi application control panel
  • Motor’s data auto learning
  • Events and alarms data logger
  • Single-phase version with power relay for inductive loads (up to 31A)
  • Protection for motherboard
  • Remote control SALUPO CONNECT

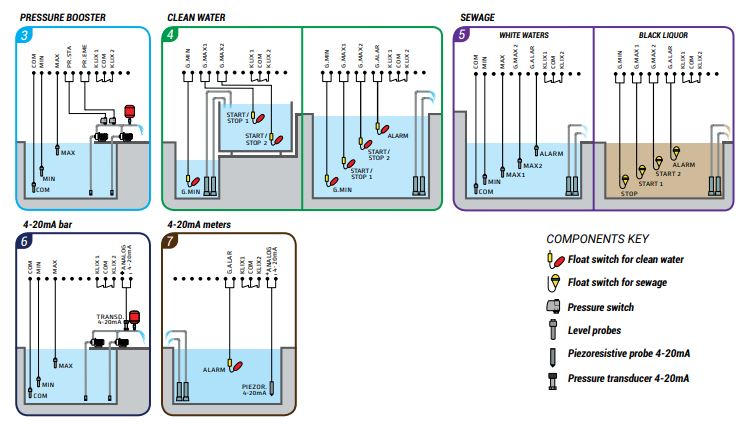

Applications


GENERAL SPECIFICATIONS

  • Operating voltage 230Vac +15/-20% 50/60Hz (SA694.xx)
  • Operating voltage 400Vac +15/-20% 50/60Hz (SA697.xx)
  • General disconnecting switch with door lock
  • Button for automatic operation
  • Button for manual operation (stable/unstable)
  • Siren shut-off button
  • Auxiliary circuit protection fuse
  • Motors’ protection fuse
  • N°2 contactors (SA697.xx)
  • External thermoplastic box
  • Cable glands
  • Protection degree IP65
  • Operating temperature -5/+50°C
  • Relative humidity 60% at 50°C (not condensed)
