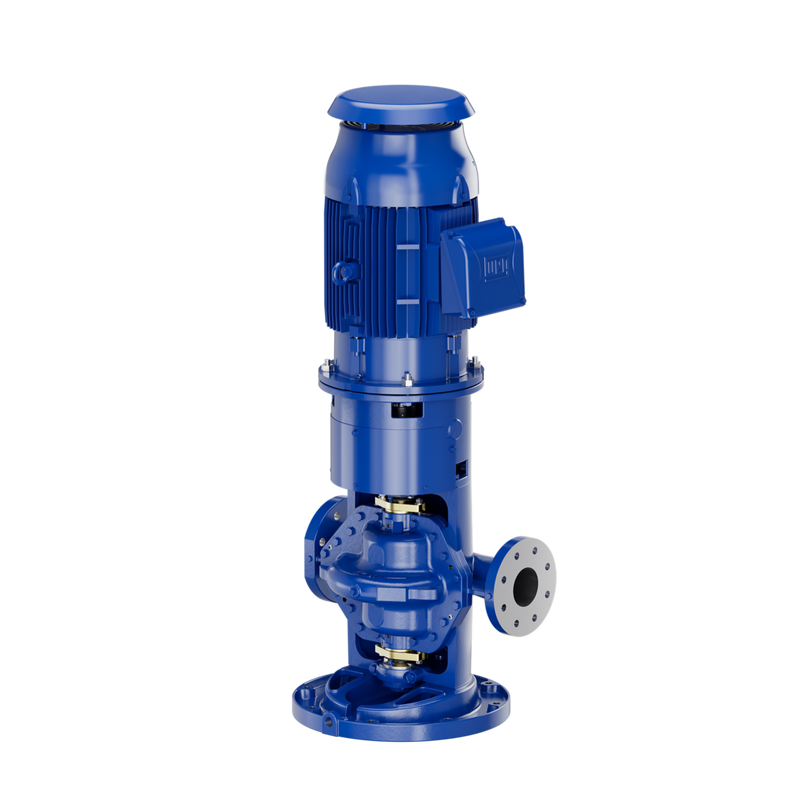

Pentair Aurora 413 Vertical Single Stage Split Case Pump
Aurora Single Stage Split Case Pump Available to Order

Pentair Aurora 413 Vertical Single Stage Split Case Pump

The split case pump has long been used for the handling of liquids where the utmost in reliability and accessibility is paramount. The 410 Series is a modern design based on Aurora’s over 100 years of experience with the design, sales and manufacturing of split case pumps.
Capacity 3407 m³/hr (15,000 GPM)
Head Up To 152 m
Max Temperature 135°C
Enquire About This Pump
🔧 NZ-based technical support 📄 Trade pricing on request 🕐 Quotes typically same day

Applications

  • Cooling, Heating and Air Conditioning Service
  • Boiler Feed Service
  • Condensate Service
  • High Pressure Water Service

Key Features

  • Model 413 Vertically Mounted with an Elevated Driver Coupled Directly to the Pump through a Flexible Coupline
  • Design Recommended Where Floor Space is Limited and Possible Flooding Chances are Marginal
  • Vertical Split Case Pumps Require Half the Floor Space of a Horizontal Split Case Pump
  • Inline Piping Arrangement Allows for Piping in Any Direction
  • Elevated Motor Protects Against Potential Flooding if the Pump Station is in a Low Area

Downloads

Pentair Aurora 413 Vertical Single Stage Split Case Pump Brochure PDF Pentair Aurora 413 Vertical Single Stage Split Case Pump Product Flyer PDF Pentair Aurora 413 Vertical Single Stage Split Case Pump Manual PDF Pentair Aurora 413 Vertical Single Stage Split Case Pump Spare Parts PDF Pentair Aurora 413 Vertical Single Stage Split Case Pump Dimensional Data PDF Pentair Aurora 413 Vertical Single Stage Split Case Pump Performance Curves PDF

Technical specifications

View full specification table
Brand Pentair Aurora
Model 413 Vertical Single Stage Split Case Pump
Equipment Category Vertical Single Stage Split Case Pump

Frequently asked questions

What is the Pentair Aurora 413 pump used for?
The Aurora 413 is a vertical single-stage split-case pump used for cooling, heating and air-conditioning systems, boiler feed, condensate service and high-pressure water applications.
What type of pump is the Aurora 413?
It is a vertically mounted, single-stage split-case centrifugal pump with an elevated driver connected to the pump through a flexible coupling.
Why choose a vertical split-case pump?
The vertical design is ideal where floor space is limited. Aurora states that a vertical split-case pump can require around half the floor space of a comparable horizontal split-case pump.
Is the Aurora 413 suitable for pump stations with flooding risk?
The elevated motor arrangement helps protect the driver where the pump station is in a low area with a marginal risk of flooding. The complete installation still needs to be designed for the site conditions.
