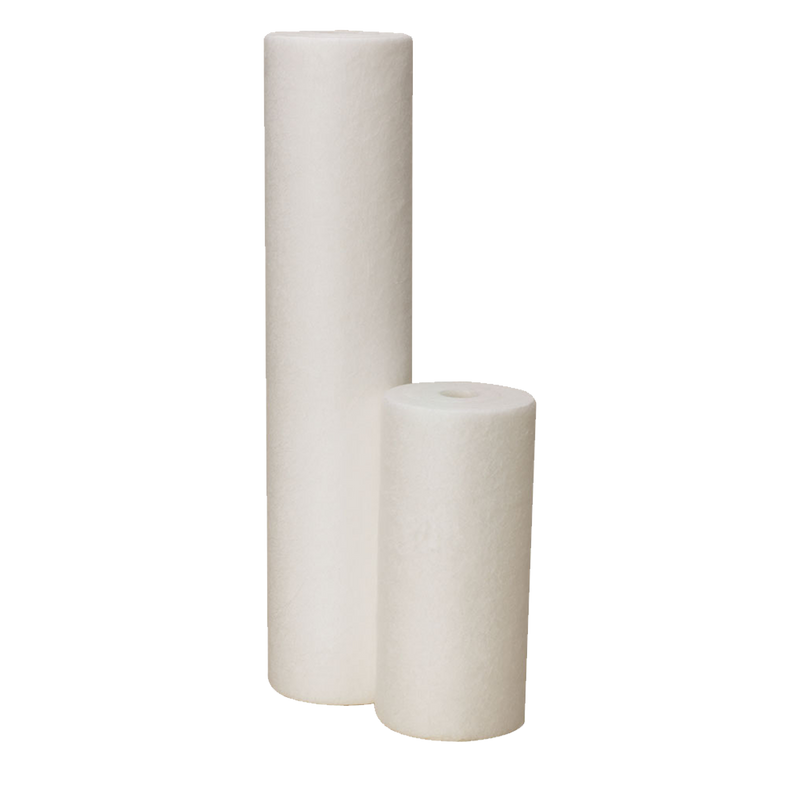

Pentek DGD Series
Pentek DGD Series Pentek DGD Series Pentek DGD Series
Filtration Cartridges Available to Order

Pentek DGD Series

The Pentek DGD Series is a replacement water filter cartridge designed for residential, rural and commercial water treatment systems. For these installations, it helps deliver cleaner, more consistent water and reliable filtration performance through durable polypropylene construction. Multiple models or configurations are available to suit different flow, filtration, capacity and connection requirements.
Enquire About This Product
🔧 NZ-based technical support 📄 Trade pricing on request 🕐 Quotes typically same day

Applications

  • High-flow pre-filtration with selective final filtration

Key Features

  • Industry standard in high-capacity sediment filtration
  • Ideal high-flow pre-filter- Filter density increases toward the cartridge's center (Dual-gradient density technology), resulting in superior particulate reduction and loading capacity
  • Big Blue 4.5" diameter by 10" length- Designed for purity and chemical compatibility

Downloads

Pentek DGD Series Technical Data Sheet PDF

Technical specifications

View full specification table
Brand Pentair
Model Pentek DGD Series
Equipment Category Gradient Density Cartridges
Lengths 10”, 20”
Nominal microns 1, 5, 25
Filter Media Polyester
Temperature Rating 4.4 - 62.8°C (40 - 145°F)
Certified NSF Certified

Frequently asked questions

What does “DGD” mean?
DGD stands for dual gradient density. The cartridge has layers that become denser toward the centre, allowing it to capture larger particles first and finer sediment deeper within the filter.
What is the Pentek DGD Series used for?
The Pentek DGD Series is a high capacity sediment filter cartridge range for reducing suspended particles in water. It is suited to residential, rural, municipal and commercial applications.
Do DGD cartridges remove chlorine, taste or odour?
No. The DGD Series is a polypropylene sediment cartridge. It is designed to reduce particles, not to provide carbon treatment for chlorine taste, odour or dissolved chemicals.
What micron ratings are available in the Pentek DGD Series?
The range is available in nominal 1, 5 and 25 micron ratings. A lower micron rating provides finer sediment filtration but may require more frequent cartridge replacement in dirty water.
