TKL™ EC Between Bearings Pump - Radially Split, Single Case
Flowserve Single Case Pumps Available to Order

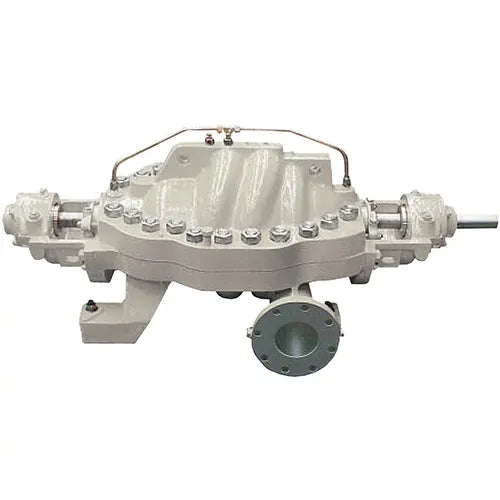

TKL™ EC Between Bearings Pump - Radially Split, Single Case

The EC is a multistage, horizontal split case pump, designed to support large flow and high head applications in mining and water transmission applications. It can be mounted horizontally or vertically.
Flow Rate Up To 2340 m³/h (10300 gpm)
Head Up To 650 m
Max Pressure 88 bar (1300 psi)
Enquire About This Pump
🔧 NZ-based technical support 📄 Trade pricing on request 🕐 Quotes typically same day

Applications

  • Power
  • Water
  • General Industries
  • Mining

Key Features

  • Temperatures from -30°C (-20°F) to 150°C (300°F)
  • Horizontally Split Casing allows access to the pump internals without removing the suction and discharge connections
  • Pump Rotor can be removed without disturbing the motor or alignment which simplifies maintenance
  • The pump can be mounted horizontally or vertically to suit application piping requirements
  • Shaft Sleeves between the stages and in the stuffing boxes reduce friction wear
  • Stuffing Boxes are furnished with graphite impregnated packing which provides easy maintenance and leakage adjustment for long life

Downloads

No downloads available.

Technical specifications

View full specification table
Brand TKL™
Model EC Between Bearings Pump - Radially Split, Single Case
Equipment Category Between Bearings Pumps
Size Range Sizes from 200mm to 600mm

Frequently asked questions

What does “multistage” mean on a TKL EC pump?
A multistage pump uses several impellers in sequence to build pressure. This enables the TKL EC to achieve high heads for demanding transfer and process applications.
What packing does the TKL EC use?
The stuffing boxes are supplied with graphite-impregnated packing, allowing straightforward leakage adjustment and maintenance.
How do I choose the right TKL EC pump?
Selection depends on the liquid, required flow and head, pressure, temperature, installation orientation, pipework and site requirements. Contact us and we can help identify a suitable configuration.
How does the split-casing design make maintenance easier?
The split casing allows access to the pump internals without removing the suction and discharge connections, helping reduce service time.
