US 73-253 (30/40mm free passage)
US 73-253 (30/40mm free passage) US 73-253 (30/40mm free passage) US 73-253 (30/40mm free passage)
Jung Pumpen Drainage Pumps Available to Order

US 73-253 (30/40mm free passage)

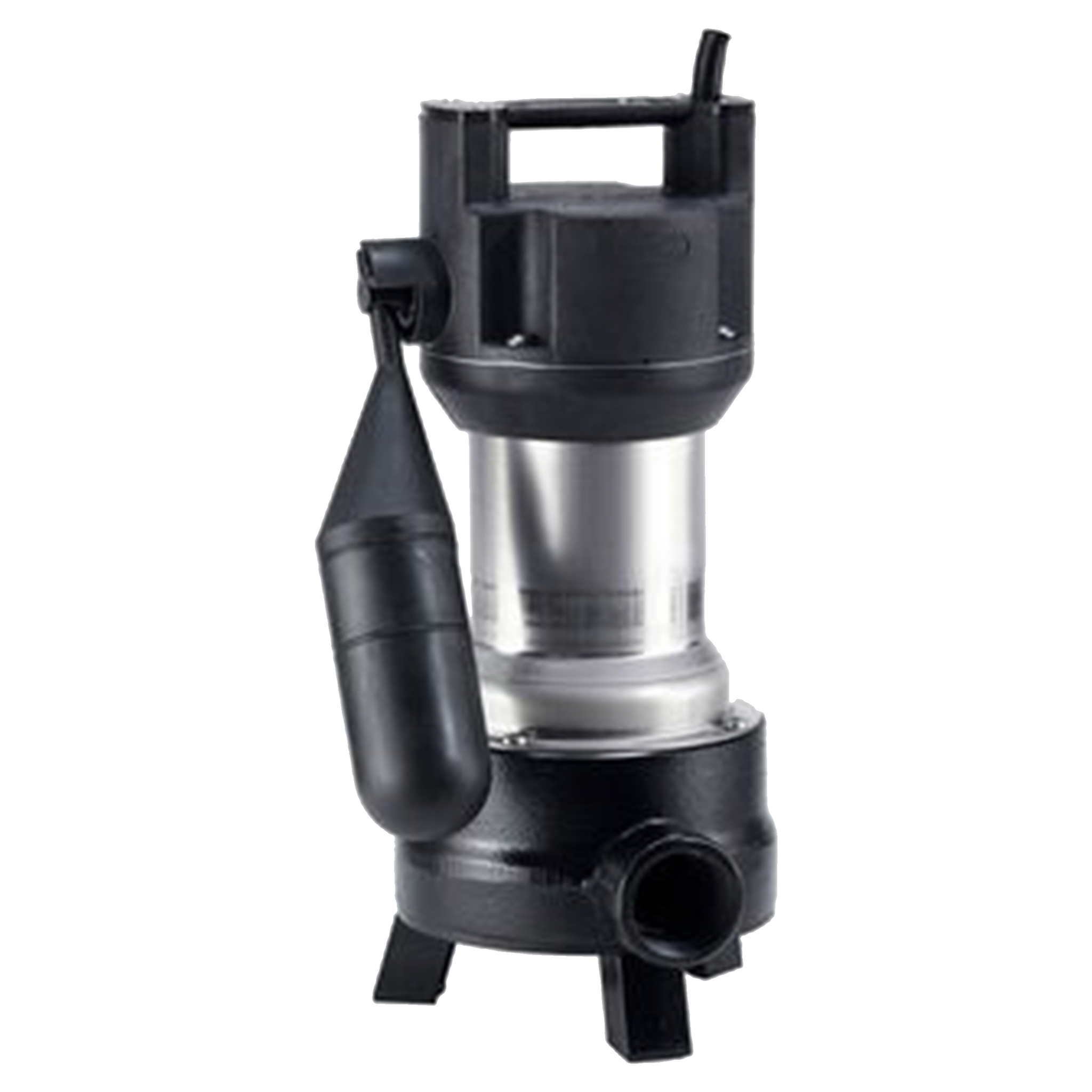

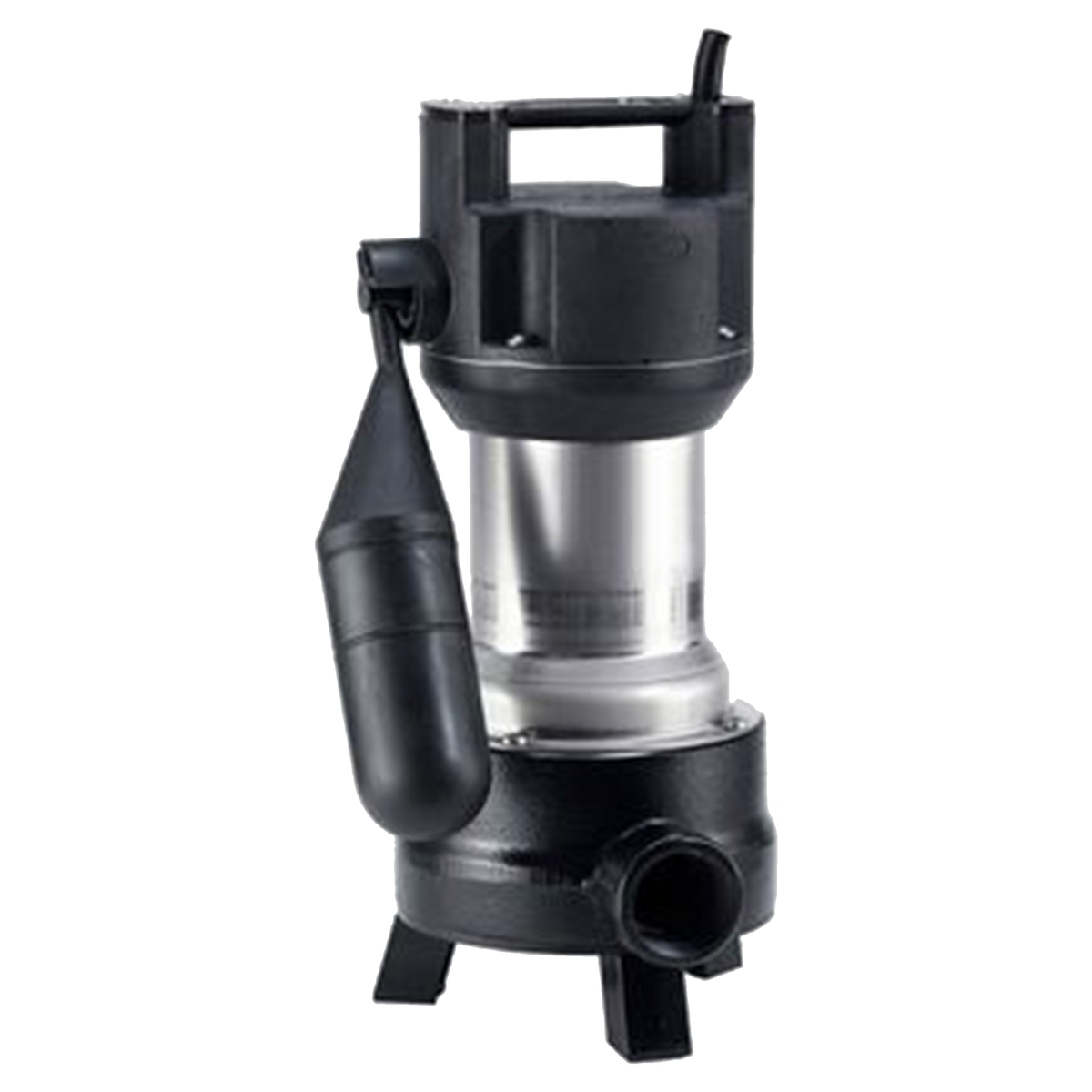

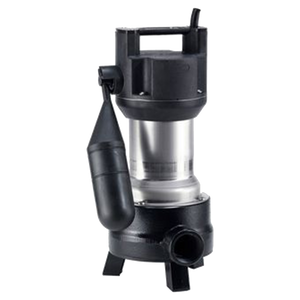

The Jung Pumpen US 73-253 (30/40mm free passage) is a submersible drainage pump designed for wastewater, drainage and dewatering installations. For these installations, it helps provide dependable water movement and efficient system performance through durable stainless-steel components. Multiple models or configurations are available to suit different flow, pressure, capacity and installation requirements.

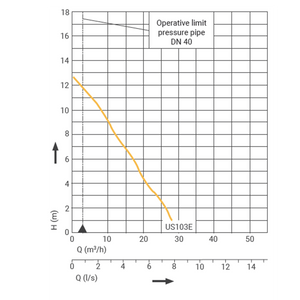

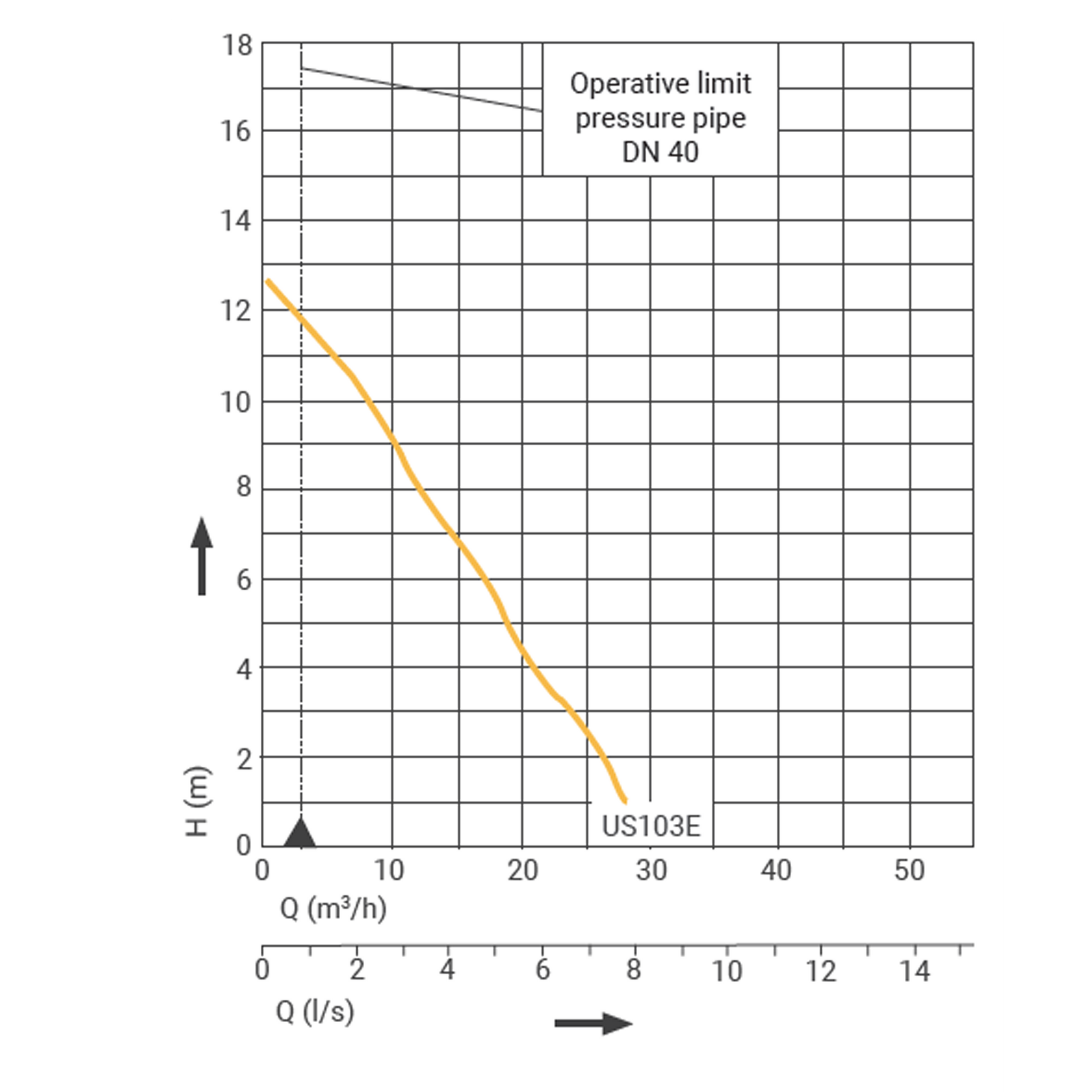

Head Up To 16 m
Flow Rate Up To 40 m³/h
Enquire About This Pump
🔧 NZ-based technical support 📄 Trade pricing on request 🕐 Quotes typically same day

Applications

  • Laundries
  • Dishwasher/washer drainage
  • Fibrous wastewater
  • Launderettes

Key Features

  • 30/40mm free passage
  • discharge branch 1½" resp. 2"

Downloads

US 73-253 Technical Data Sheet PDF US 73-103 H Technical Data Sheet PDF US 73-253 Spare Parts PDF

Technical specifications

View full specification table
Brand Pentair
Model US 73-253 (30/40mm free passage)
Equipment Category Submersible Drainage Pump
Free Passage 30/40mm
Head Max 16 m
Flow Max 40 m³/h
Mechanical Seal SiC mechanical seal

Frequently asked questions

Can these pumps handle wastewater from washing machines or dishwashers?
Yes. The range is suitable for fibrous wastewater, including wastewater from household washing machines and dishwashers, provided the pump is selected for the site conditions.
Can US 73-253 pumps handle solids?
Yes. US 73, US 103 and US 153 models have a 30 mm free passage, while the US 253 has a 40 mm free passage. They are intended for contaminated water with solids within these limits, but not stones.
What is the US 73-253 pump range used for?
The US 73-253 range consists of submersible drainage pumps for contaminated water, drainage sumps, collection tanks, pump shafts and domestic or commercial wastewater applications.
Are automatic level-control options available?
Yes. Selected models are available with level control for automatic operation as water levels change. Contact us to confirm the appropriate pump and control arrangement.
