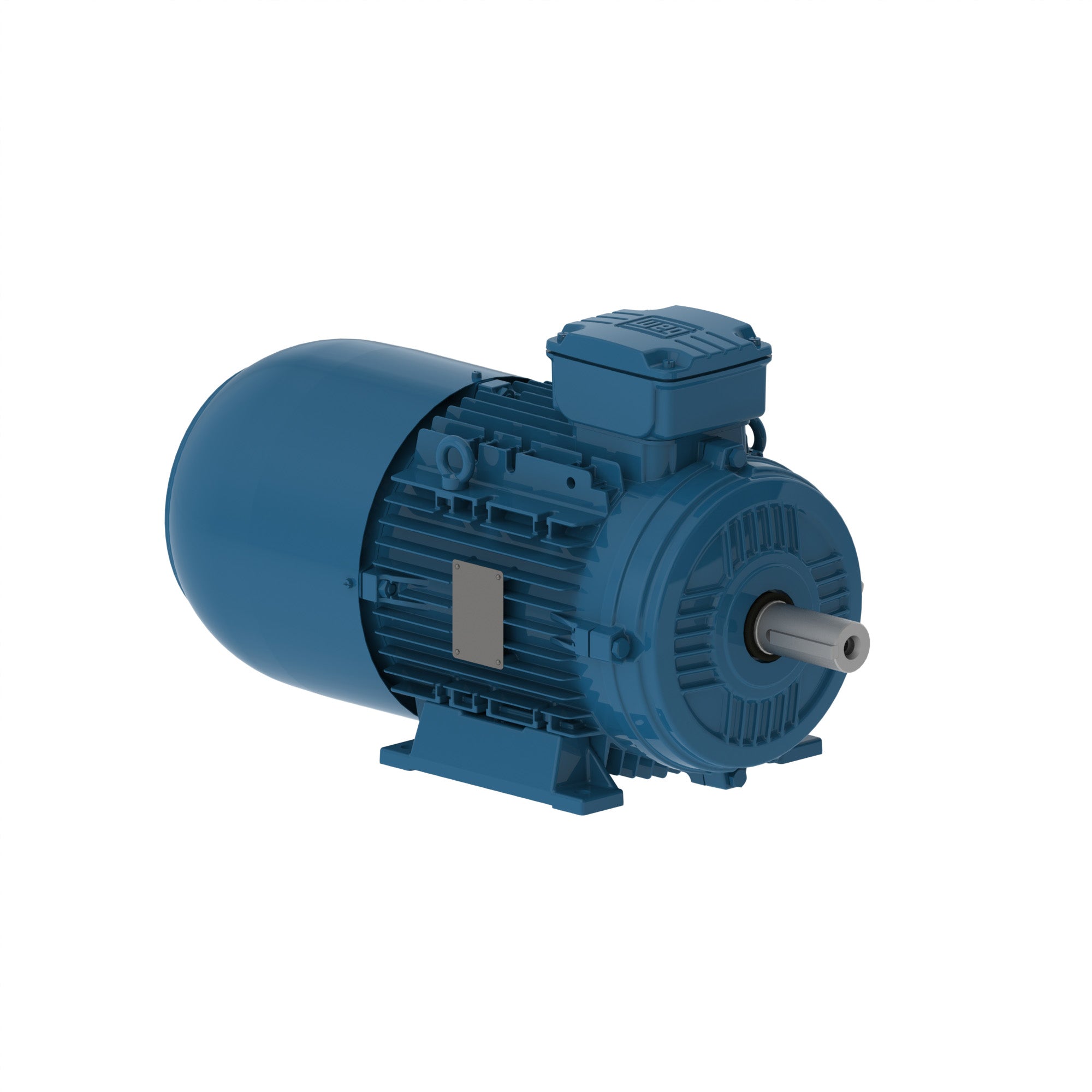

Three Phase IP55 TEFC, Multivoltage 380 - 415 Volt 50HZ - Aluminium Frame - Top Mounted terminal box - Multi mount
Standard Features
- Aluminium Frames 63 up to 132M/L
- Degree of protection IP 55
- Three-phase, Multivoltage
- Squirrel cage Motor
- Ball Bearings
- Class “F” insulation T 80K
- Service Factor: 1,0
- Output from 0,12kW up to 11kW
- Dimensions IEC 72 and DIN 42673
- Continuous Duty
- 40 °C at 1000 m.a.s.l
- Mounting B3T
- Stainless steel nameplate
- Design N
- Sealing: Lip Seal
- Removeable Feet
- Convert to Pad Mounted
- Paint Color: RAL 6002
Options Available
- Non-drive end shaft
- Shaft dimensions to custumer requirements
- Special paint fi nish
- Space Heaters
- Thermal protection (thermistors)
- Class “H” insulation
- IP 56
- Rain Hats for V1 mounting
- Multispeed
- Other Mounting Configuration
Available in foot (B3) and Foot Flange mount (B35) other standard mounting options are available just contact us. Listed are our 2 Pole (3000 rpm) and 4 Pole (1500 rpm) 6 and 8 pole are available on request.
