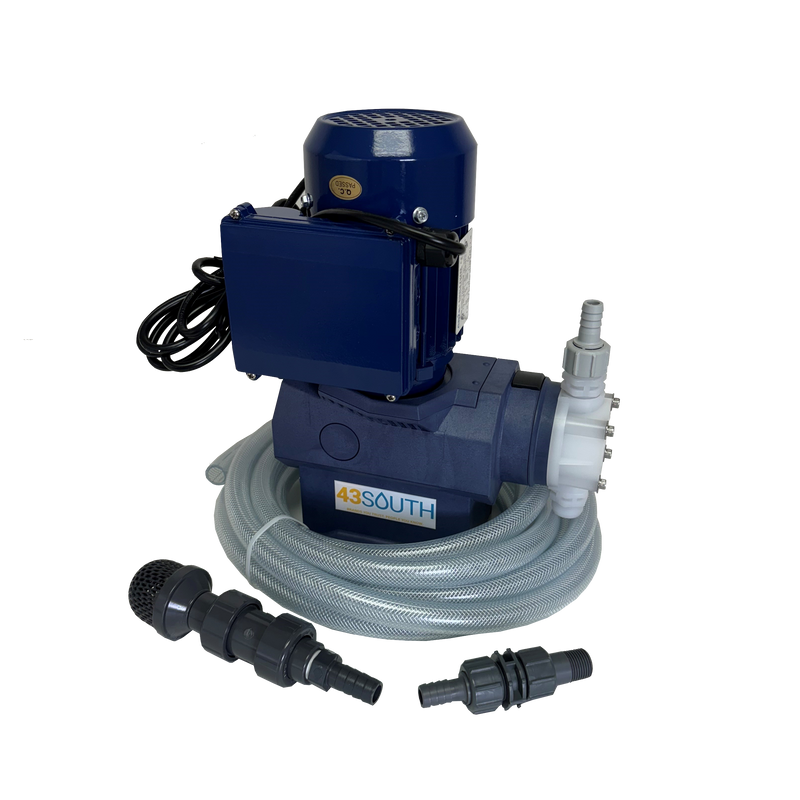

Farm Mineral Dosing Kit
Farm Mineral Dosing Kit Farm Mineral Dosing Kit
43South Available to Order

Farm Mineral Dosing Kit

The Farm Mineral Dosing Kit is a water management product designed for residential, rural, commercial and industrial water systems. For these installations, it helps provide reliable performance and easier long-term system operation through durable, application focused construction.
Enquire About This Product
🔧 NZ-based technical support 📄 Trade pricing on request 🕐 Quotes typically same day

Applications

  • Non-flow-proportional injection of farm nutrients/minerals into livestock troughs

Key Features

  • Quality 230VAC motor-driven diaphragm metering pump 42L/hr nominal capacity at > 10 bar back-pressure, impervious to dosed product
  • Manually adjustable stroke-length adjustment to fine tune the dose rate to suit individual application requirements. Accurate turn-down to within 25% of nominal capacity
  • Large surface area suction screen and big bore uPVC foot-valve
  • Large DN10 injection non-return valve with Hastelloy C276 spring and 3/4” BSPm mounting thread
  • 5m spool of d.16 flexible reinforced PVC dose tubing, for suction AND discharge
  • Accessories and Spare parts readily available (see Technical Data Sheet)
  • 12 months Factory Warranty against faulty components and/or manufacture. Does not cover installation

Downloads

Farm Mineral Dosing Kit Technical Data Sheet PDF Farm Mineral Dosing Kit Product Flyer PDF Farm Mineral Dosing Kit Installation PDF

Technical specifications

View full specification table
Brand 43 South
Equipment Category Farm Mineral Dosing Kit
Model #FMDK4210NFP
Warranty 12-month Factory Warranty against faulty components and/or manufacture. Does not cover installation.

Frequently asked questions

What is the Farm Mineral Dosing Kit used for?
The 43 South Farm Mineral Dosing Kit is designed to inject farm related nutrients and minerals directly into stock-trough water in dairy and farm environments.
How does the Farm Mineral Dosing Kit work?
The kit uses a 230 V motor-driven diaphragm metering pump to draw dosing product through the suction line and inject it into the water line through a non-return injection valve.
Can I adjust the dosing rate?
Yes. The pump has a manual stroke length adjustment that allows the dose rate to be fine tuned for the specific application.
What is the dosing capacity of the pump?
The kit includes a diaphragm metering pump with a nominal capacity of 42 litres per hour at back pressure greater than 10 bar.
