HD50 - Solar
HD50 - Solar HD50 - Solar HD50 - Solar
43South Available to Order

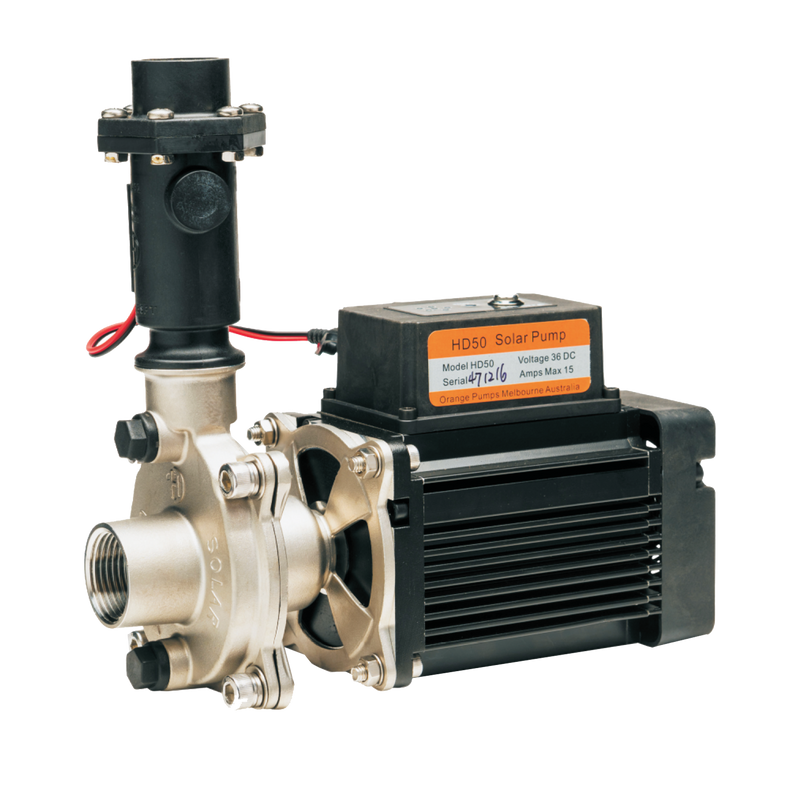

HD50 - Solar

The HD50 - Solar is an industrial centrifugal pump designed for residential, rural, commercial and industrial water systems. For these installations, it helps provide reliable performance and easier long-term system operation through durable stainless-steel components.
Warranty 2 years
Enquire About This Pump
🔧 NZ-based technical support 📄 Trade pricing on request 🕐 Quotes typically same day

Applications

  • Shallow well pumping
  • Clean water with minimal fine sand

Key Features

  • Auto flow valve with in-built circuitry
  • DC brushless permanent magnet motor
  • Variable speed up to 7,000 rpm
  • Centrifugal single impeller pump

Downloads

HD50 - Solar Technical Data Sheet PDF HD50 - Solar Product Flyer PDF HD50 - Solar Manual PDF HD50 - Solar Spare Parts PDF

Technical specifications

View full specification table
Brand Orange Pumps
Model HD50 - Solar
Equipment Category Above ground solar pump
Pump Type Centrifugal single impeller pump
Variable speed up to 7,000 rpm
Warranty 2 years

Frequently asked questions

Does the HD50 use a battery or mains power?
The HD50 operates on 36 V DC solar power. Its variable speed motor uses the power available from the solar panels.
What is the HD50 Solar pump used for?
The HD50 is an above ground solar centrifugal pump for moving clean water in off-grid and remote water supply applications.
How does the HD50 perform when sunlight changes?
The variable speed motor adjusts its speed to use the solar power available. In stronger sunlight, the pump can operate at a higher speed and deliver more water.
How deep can the HD50 draw water from?
The HD50 is a shallow well pump with a maximum suction lift of approximately 6 metres at sea level. Actual achievable lift depends on the installation and site conditions.
