JJ600
JJ600 JJ600 JJ600 JJ600 JJ600 JJ600
Onga Farm Master Available to Order

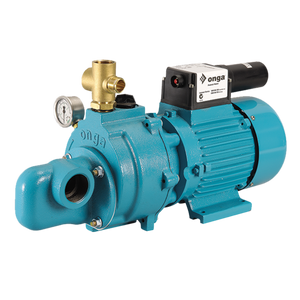

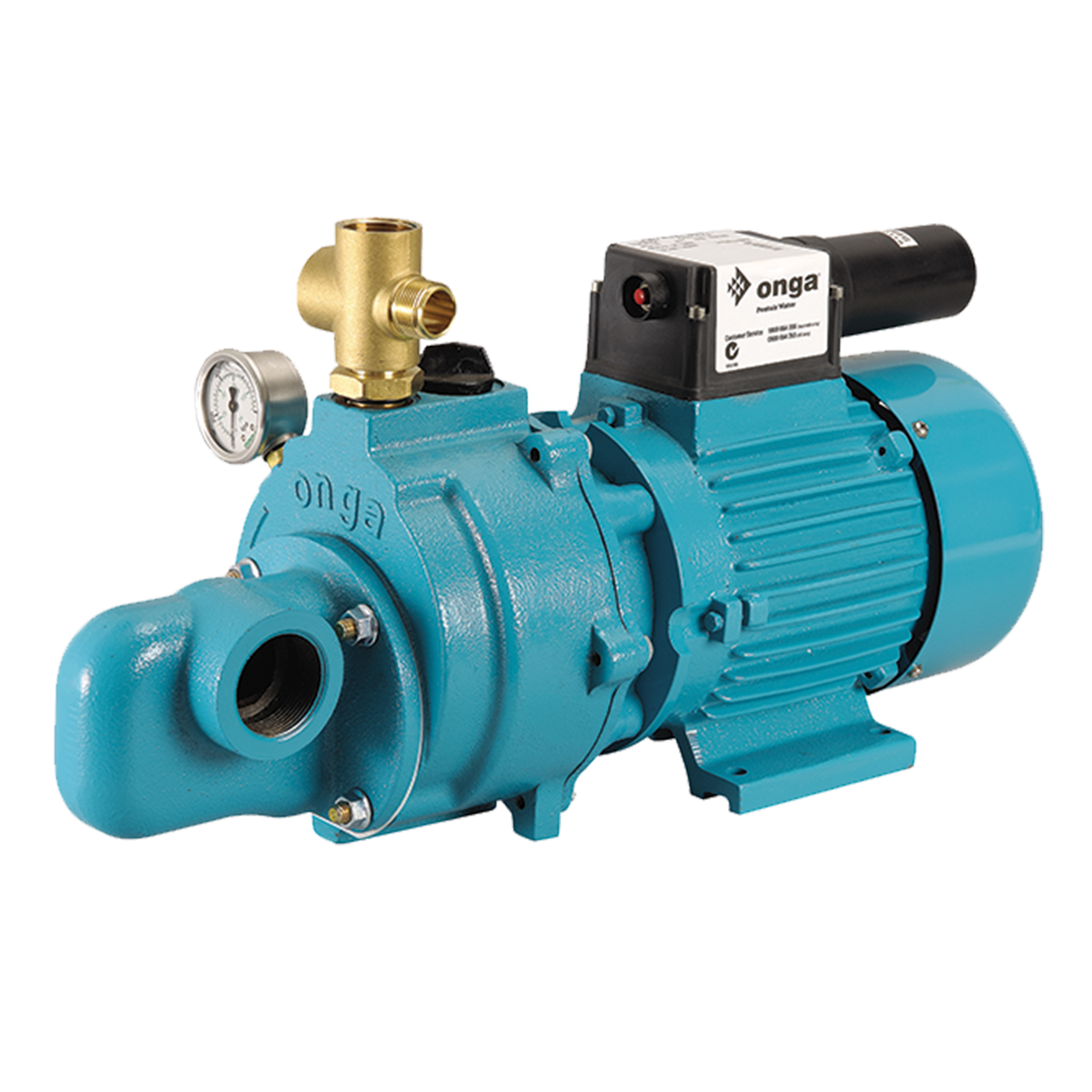

JJ600

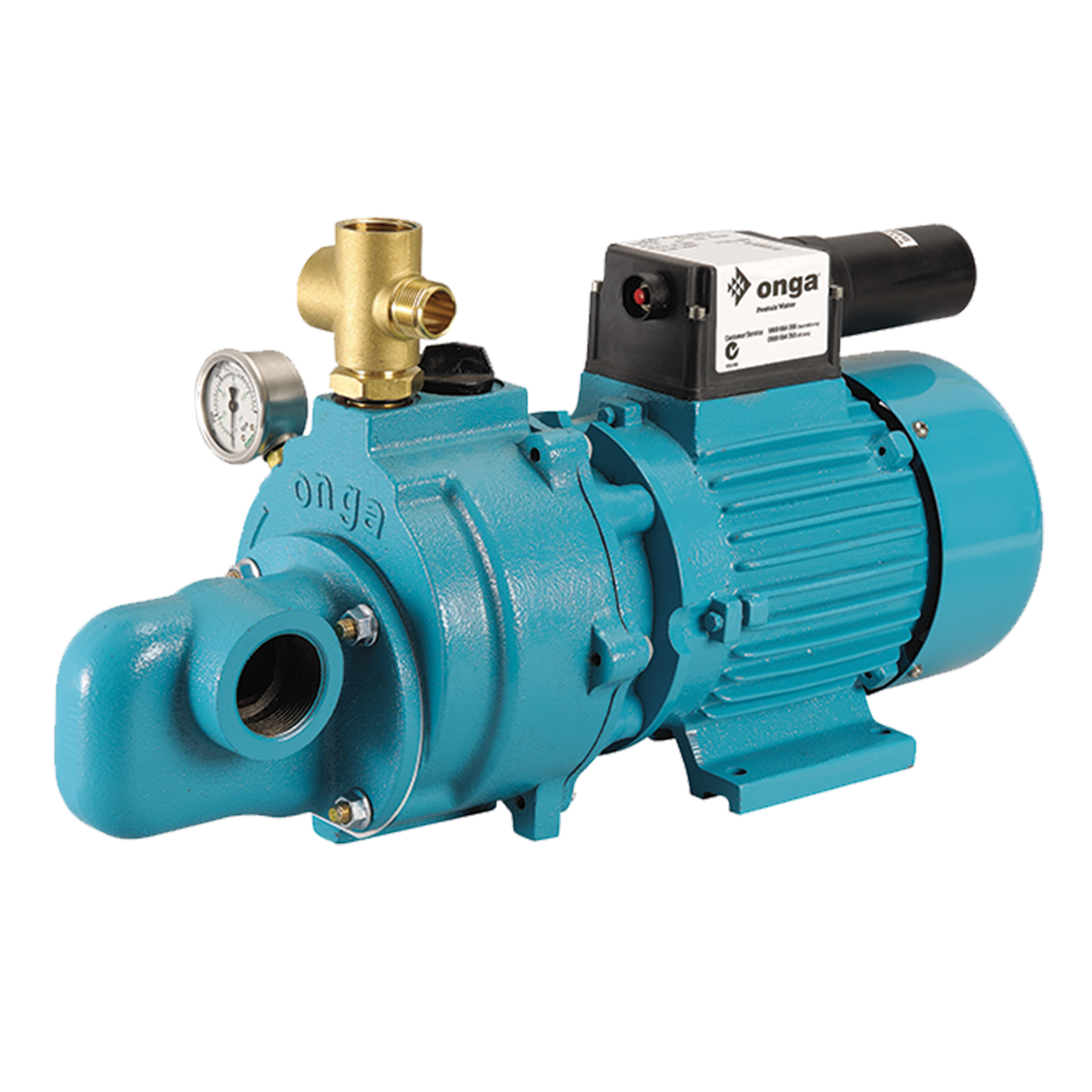

The Farmmaster Junior Jet (JJ) range are compact and efficient, with precision-engineered internals and a coated cast iron housing for high performance and durability. You simply cannot beat this range for reliability. Available in shallow and deep well configurations.

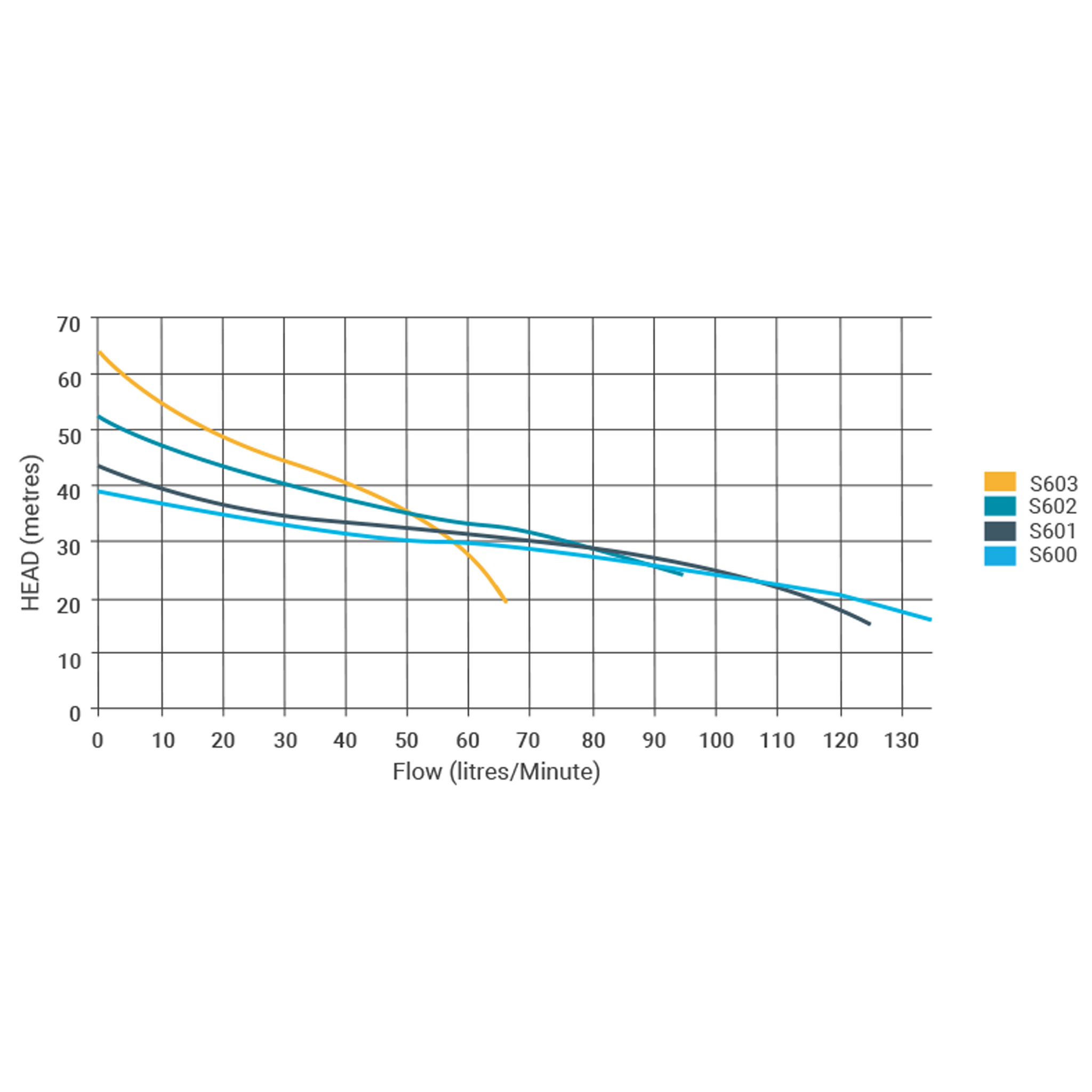

Max Head 63 m
Max Flow 137 lpm
Warranty 2 year
Enquire About This Pump
🔧 NZ-based technical support 📄 Trade pricing on request 🕐 Quotes typically same day

Applications

  • Domestic/industrial/rural
  • Stock watering
  • Water transfer
  • Irrigation

Key Features

  • Strong cast iron construction
  • Injectors to suit a large range of applications

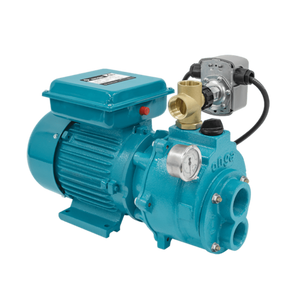

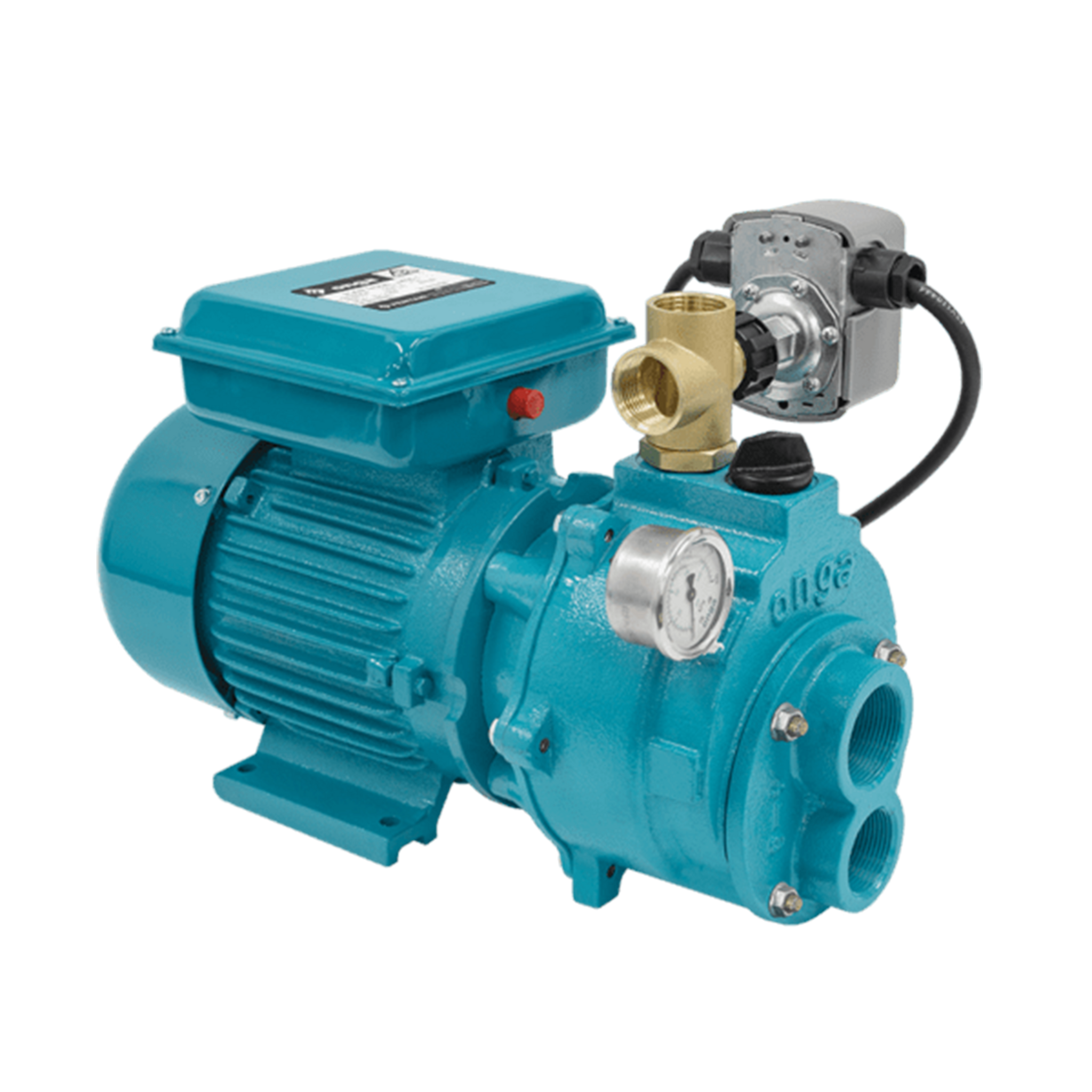

  • Offset combinations available
  • No moving parts down bore
  • Shallow well lifts to 7.6 m
  • Deep well lifts to 37 m

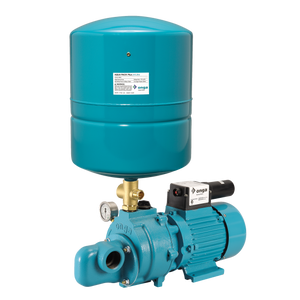

  • Manual or automatic system

Downloads

JJ600 Technical Data Sheet PDF JJ600 Product Flyer PDF JJ600 Manual PDF JJ600 Spare Parts PDF JJ600 Shallow Well Injector Spare Parts PDF JJ600 Deep Well Injector Spare Parts PDF JJ600 Jet & Venturi Cross-Reference PDF

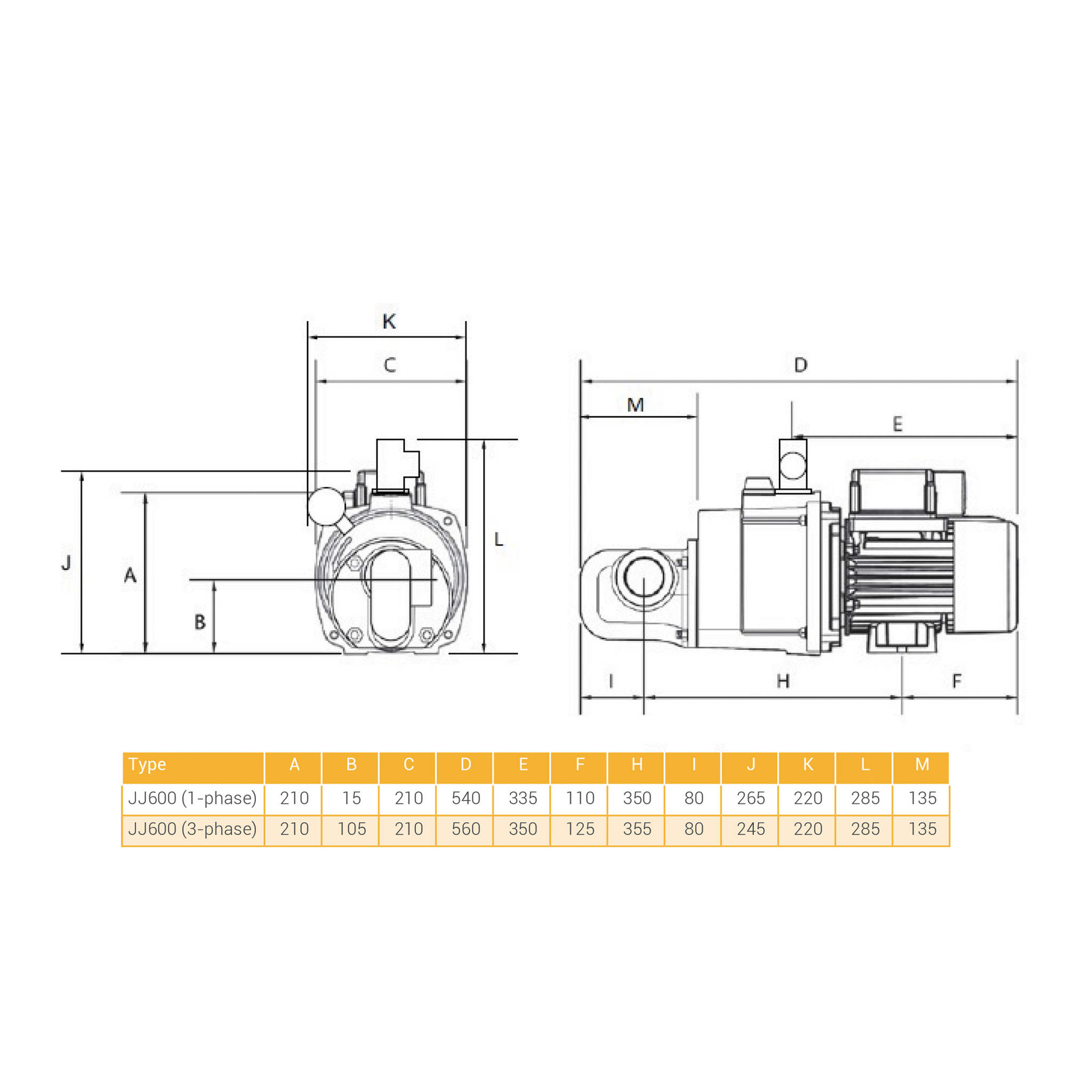

Technical specifications

View full specification table
Brand Onga
Model JJ600 Series
Equipment Category Junior Jet Farmmaster Pump
Fluid Water
Maximum Water Temperature 55°C
Minimum Water Temperature 1°C
Maximum Ambient Temperature 40°C
Max Head 63m
Max Flow 137lpm
Warranty 2 years

Frequently asked questions

Can the Onga JJ600 pump water from a bore?
Yes. The JJ600 is available in shallow- and deep-well configurations. It can lift from shallow sources up to 7.6 m, or up to 37 m in a correctly configured deep-well installation.
Can I use a JJ600 for stock watering and irrigation?
Yes. The JJ600 is suited to stock watering, irrigation, domestic water pressure and general water transfer for rural, industrial and domestic applications.
Can the JJ600 draw water from a dam, creek or tank?
Yes. Various injector combinations allow the pump to be matched to tanks, bores, dams, creeks and rivers, provided the water is clean and free from solids and fibres.

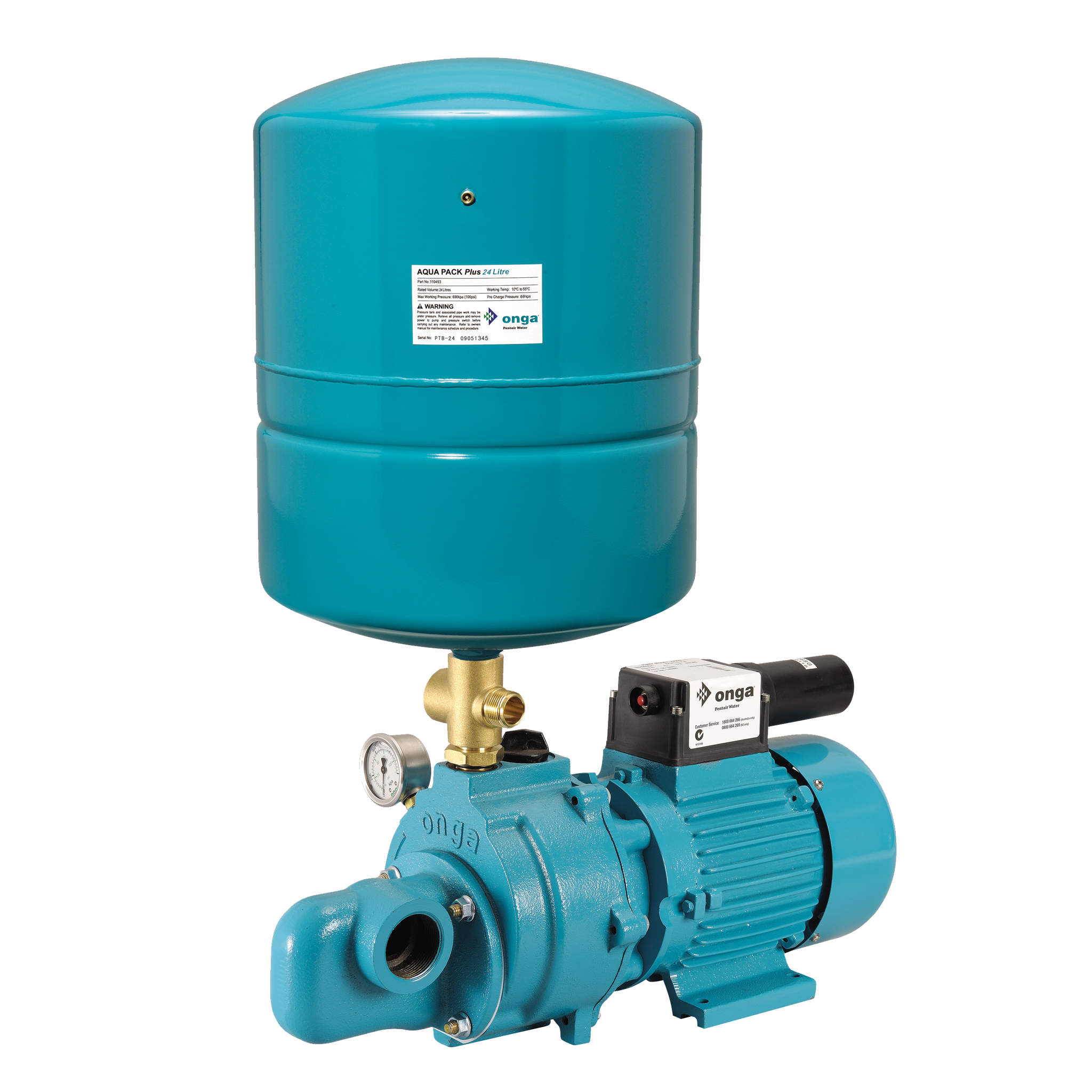

Can I run a JJ600 as an automatic pressure system?
Yes. The JJ600 can be configured as either a manual or automatic pressure system, depending on the controls and accessories selected.

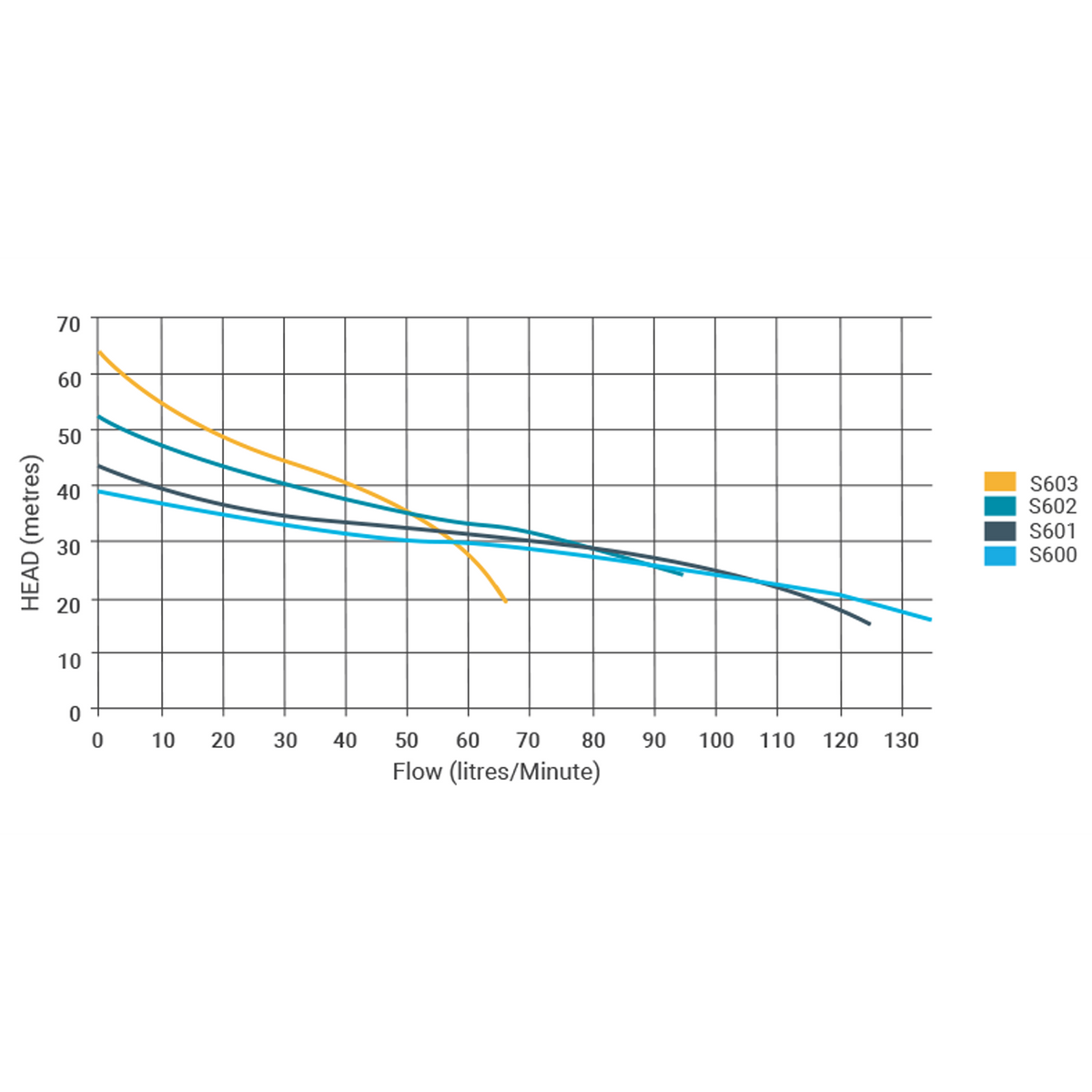

How much flow and pressure can a JJ600 provide?
The JJ600 can deliver up to 137 litres per minute and a maximum head of 63 m. Actual flow will vary with suction depth, injector, pipework and required delivery pressure.
