OJ800 Range
OJ800 Range OJ800 Range OJ800 Range OJ800 Range OJ800 Range
Onga Farm Master Available to Order

OJ800 Range

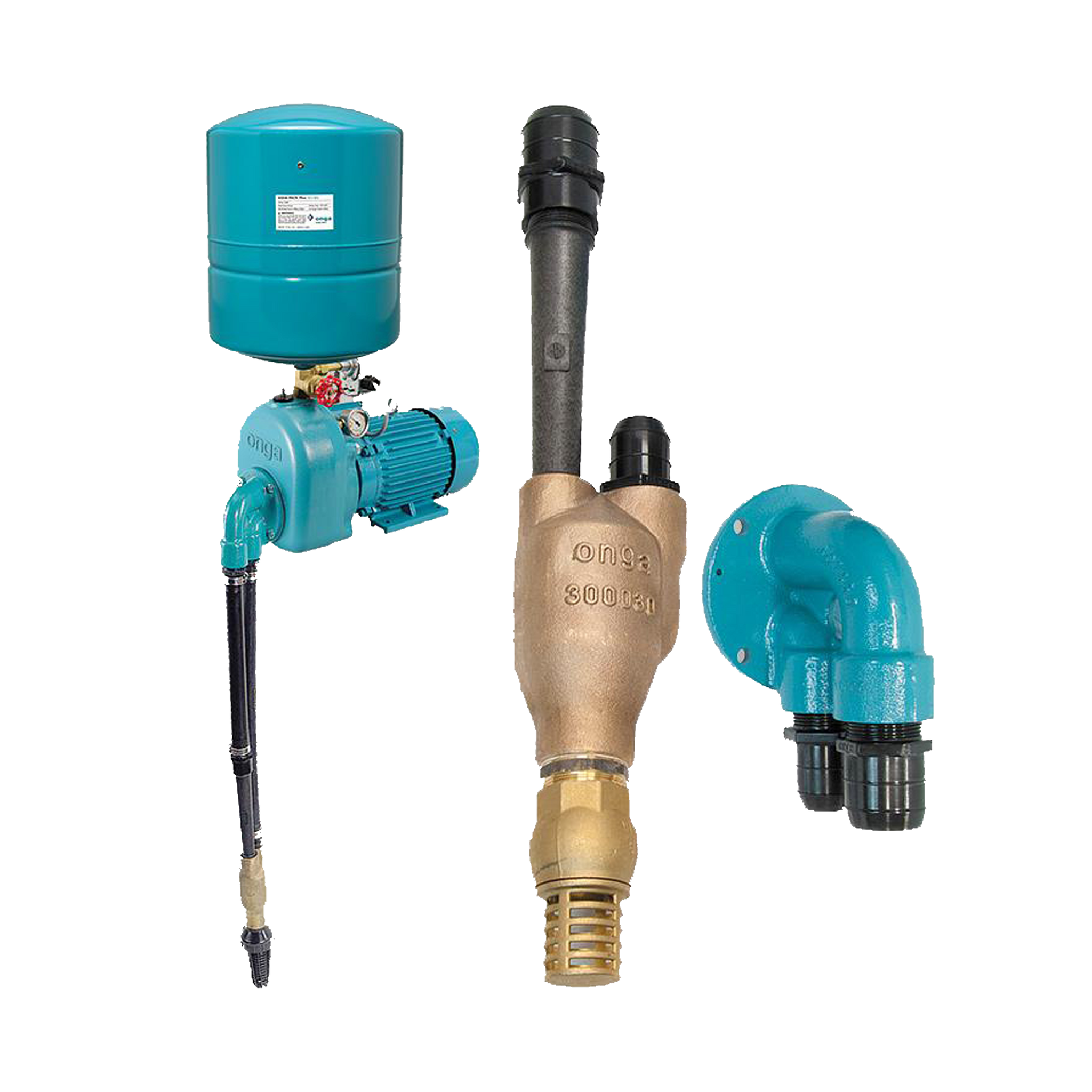

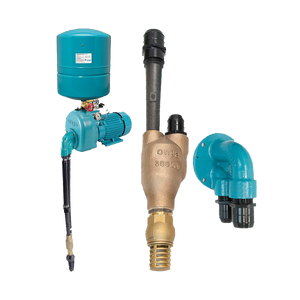

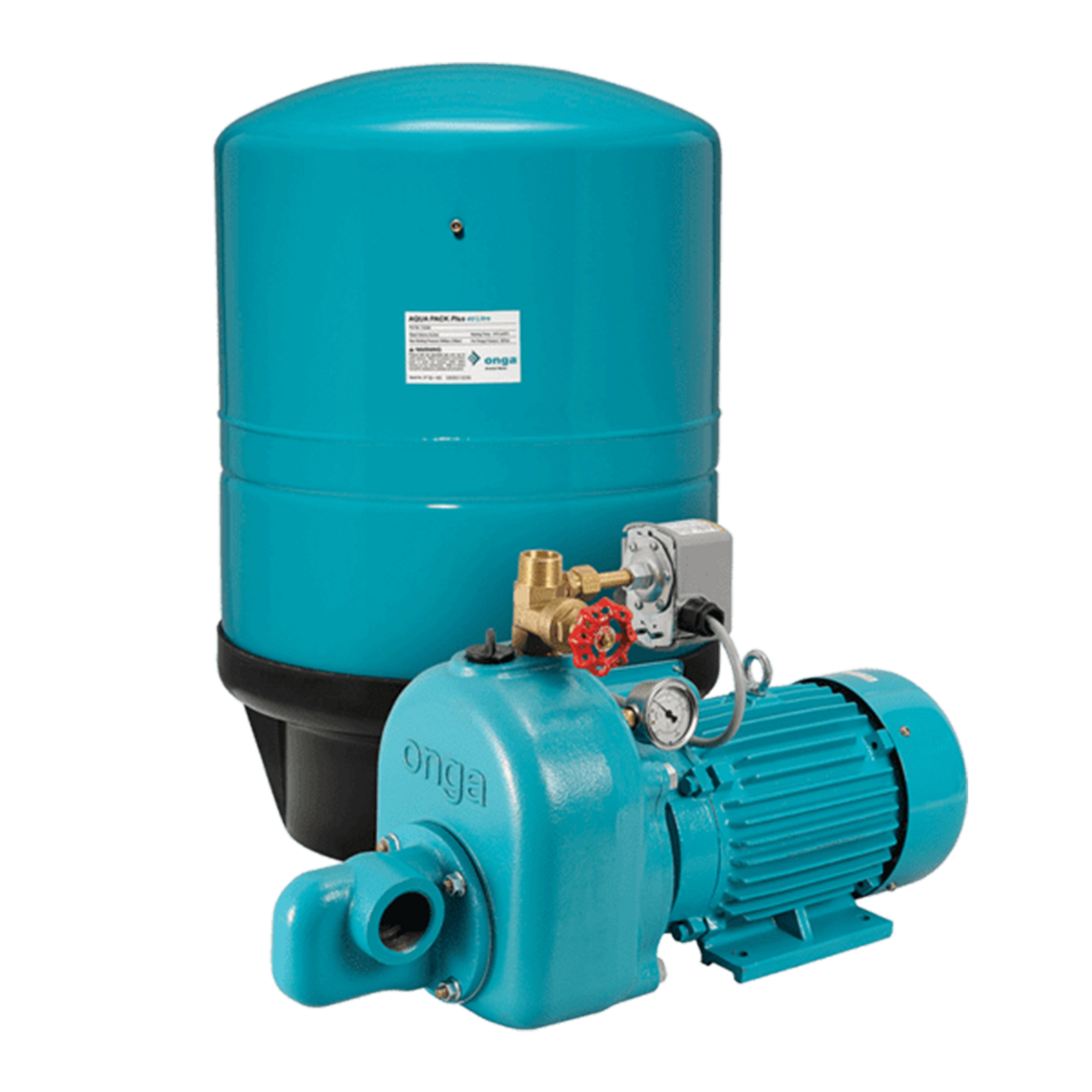

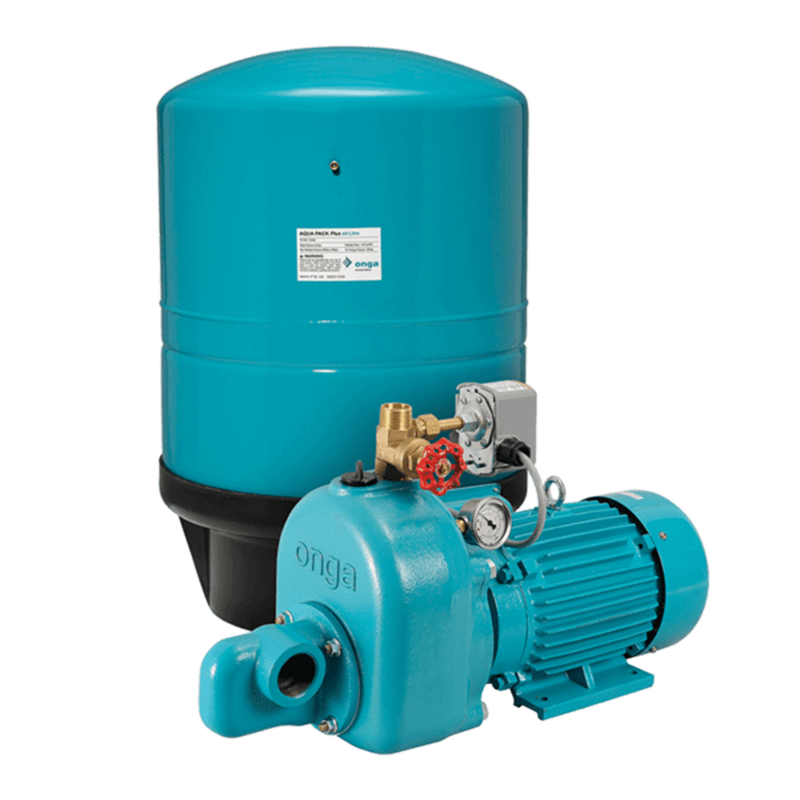

The Onga OJ800 Range is a pressurised water system tank designed for residential, rural, commercial and industrial water systems. For these installations, it helps provide dependable water movement and efficient system performance through robust cast iron construction. Multiple models or configurations are available to suit different flow, pressure, capacity and installation requirements.

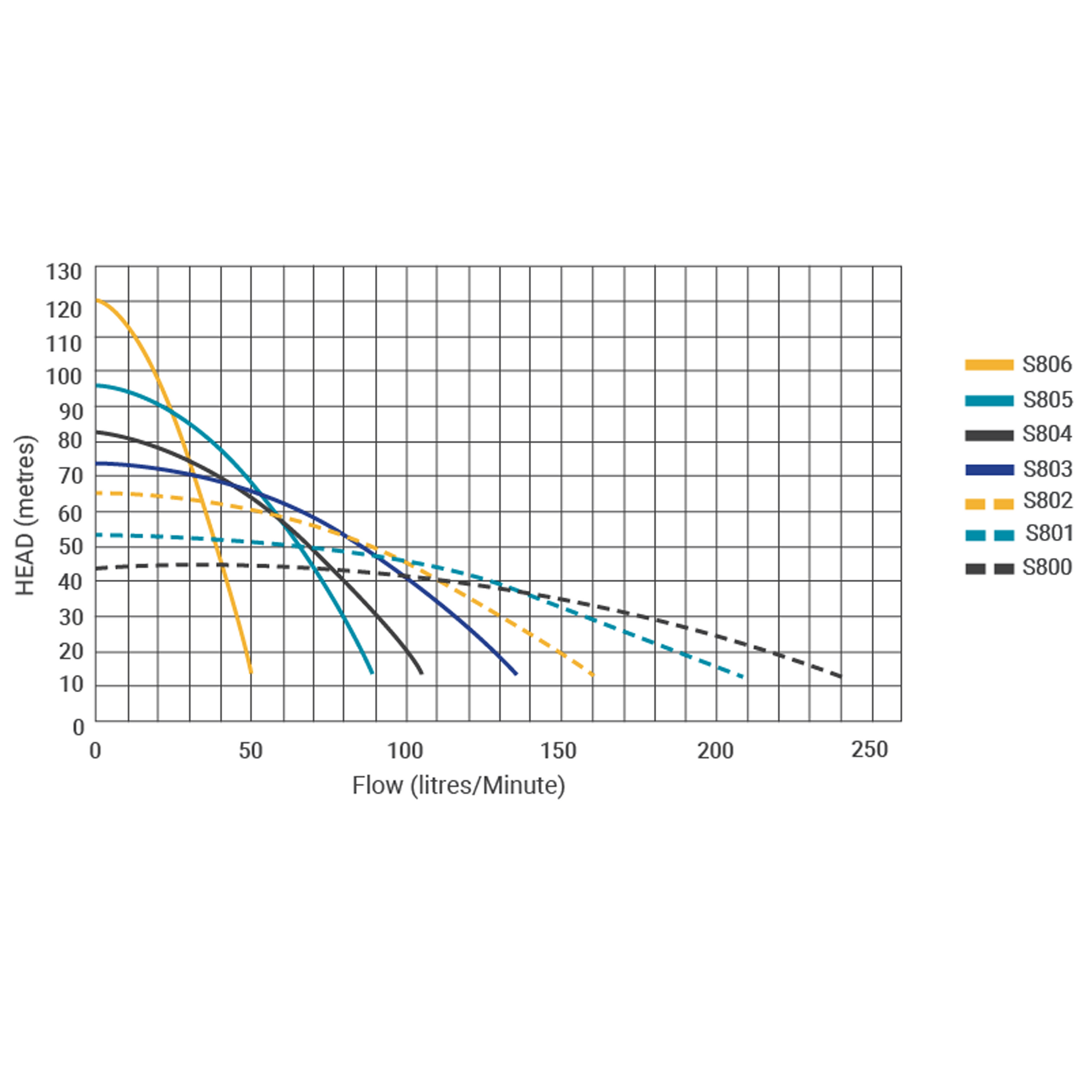

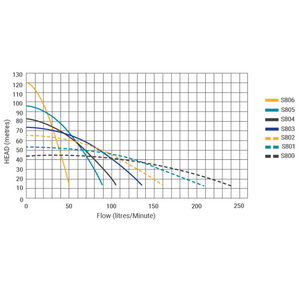

Max Head 123 m
Max Flow 255 lpm
Warranty 2-year warranty
Enquire About This Pump
🔧 NZ-based technical support 📄 Trade pricing on request 🕐 Quotes typically same day

Applications

  • Domestic/industrial/rural
  • Stock watering
  • Irrigation
  • Water transfer

Key Features

  • Injectors to suit a large range of applications
  • Offset combinations available
  • No moving parts down bore
  • Shallow well lifts to 7.6 m
  • Deep well lifts to 49 m
  • Manual or automatic system

Downloads

OJ800 Range Technical Data Sheet PDF OJ800 Range Product Flyer PDF OJ800 Range Manual PDF OJ800 Range Spare Parts PDF OJ800 Range Jet & Venturi Cross-Reference PDF OJ800 Range Injectors PDF OJ800 Range Motor Modification Bulletin PDF

Technical specifications

View full specification table
Brand Onga
Model OJ800 Range
Equipment Category Jet Assisted Pressure Pump
Max Head 123 m
Max Flow 255 lpm
Shallow Wells Lift to 7.6m
Deep Well Lifts to 49 m
Fluid Water
Maximum Water Temperature 55°C
Minimum Water Temperature 1°C
Maximum Ambient Temperature 40°C
Warranty 2 years

Frequently asked questions

Can an OJ800 pump draw water from a bore?
Yes. With the appropriate injector combination, the OJ800 can be configured for bore applications. Its deep-well lift capability is up to 49 metres.
What water sources can an OJ800 pump use?
The range can be used with tanks, bores, dams, creeks and rivers when fitted with the appropriate injector arrangement.
Can the OJ800 be used as an automatic pressure system?

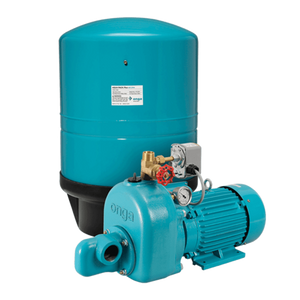

Yes. The OJ800 is available for use as either a manual or automatic pressure system and is supplied complete with a pressure tank.
Does the OJ800 have parts installed down the bore?
The OJ800 system has no moving parts down the bore, which can simplify maintenance in suitable deep well installations.
