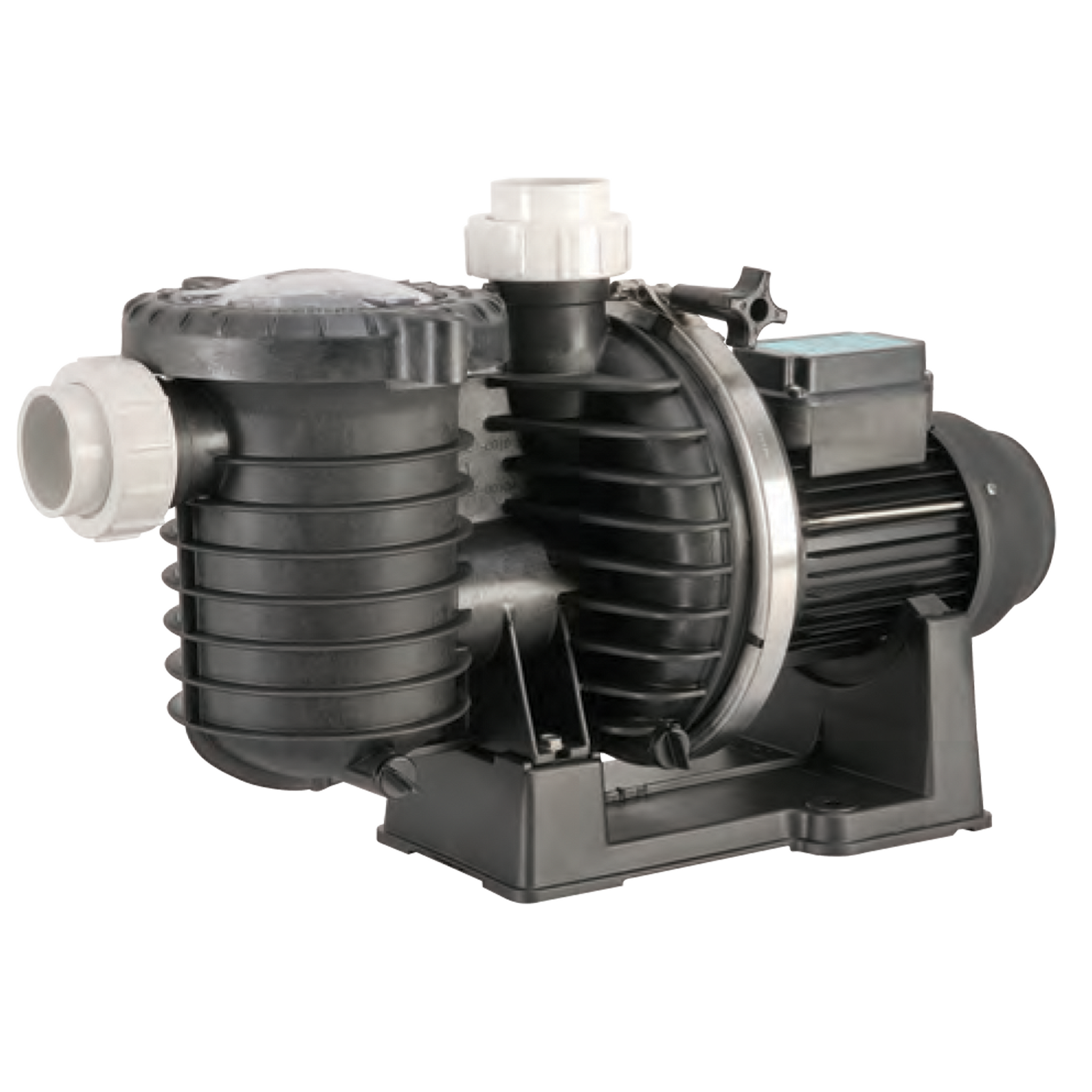

Max-E-Pro

Max-E-Pro– High efficiency, low maintenance and maximum performance - all the features demanded by today’s pool professionals. The Max-E-Pro pump has our new Quick-Lock™trap cover ring and the 50mm / 2 in. ports incorporate internal and external threads. Available in single and three phase models, with ratings from 1 to 3 HP. Built with quality construction using a durable one-piece pump housing constructed of Dura-Glas™ - Pentair’s industry leading glass-reinforced composite resin. Fast cleaning with a Quick-Lock trap cover ring permits fast access to strainer basket. Large “see-thru” lid makes it simple to check for debris. A strong, sturdy, specially-designed base dampens sound and vibration, making the Max-E-Pro pump one of the quietest pumps in its class.

Features

  • Typical Installation – Inground pools, pool/spa combinations, inground spas, fountains and water features.
  • Self-priming – Suction lift up to 4.5m above water level.
  • Easy-to-Install – 2"/50mm ports include external and internal threads for more plumbing options.
  • Superior Hydraulic Design – Moves larger volumes of water, resulting in lower operating costs.
  • Impeller Manufactured with PPO Resin – Withstands the toughest water environments.
  • Fluoroelastomer Rubber Shaft Seal – Longer-lasting seal stands up to the harshest environments.
  • Self-lubricating Lid O-ring – Does not require lubricant.
  • 3 years limited warranty.*

Download

Brochure

Manual

Spare Parts
