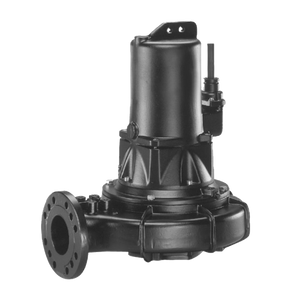

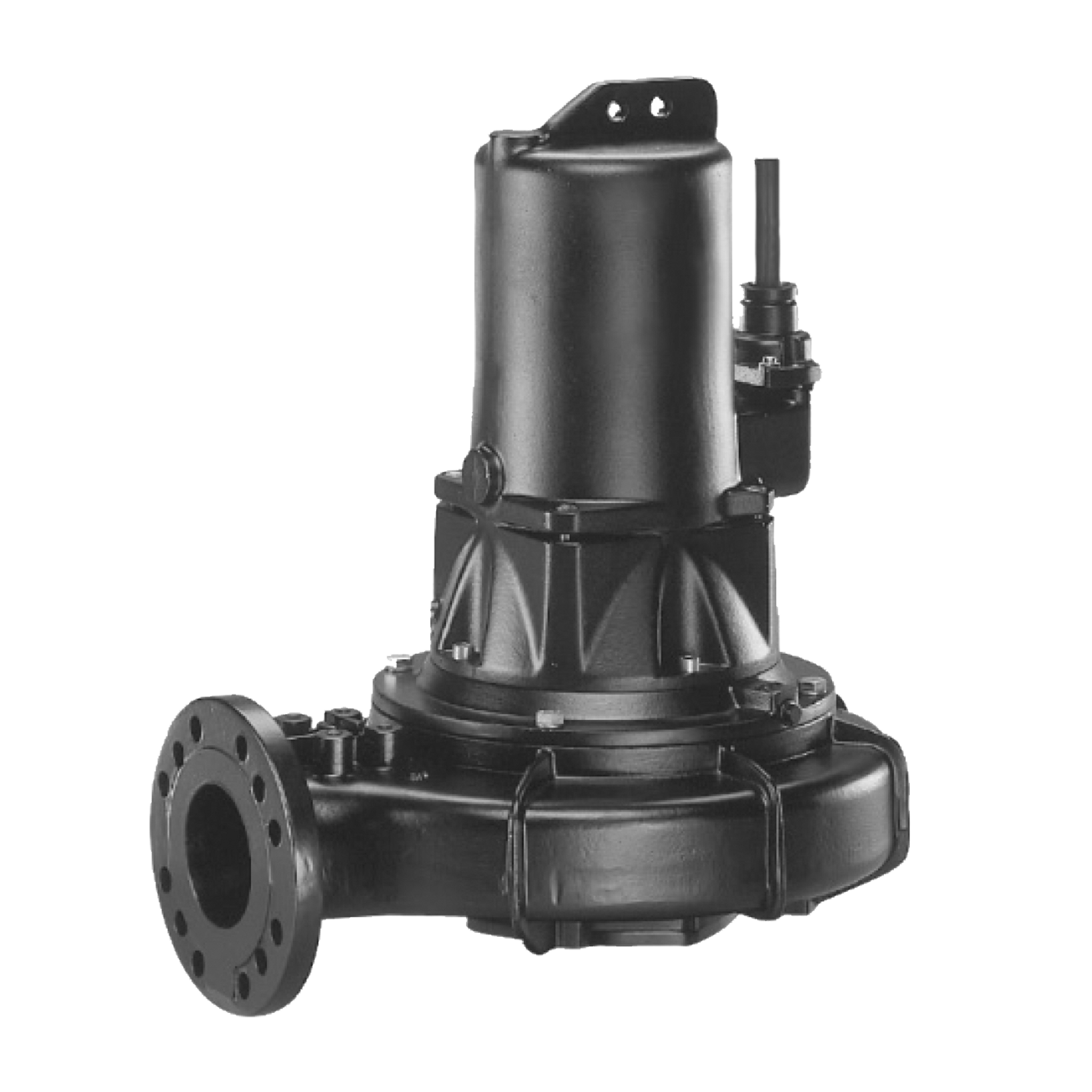

MultiStream pumps with adjustable single-channel impeller

MultiStream pumps are suitable for handling effluent or sewage in municipal and industrial pumping stations as well as in surface water drainage applications. The smaller types are also used very successfully as portable units to deal with emergency situations.

The sewage pumps are suitable for handling sewage water. In hazardous locations explosion-proof sewage pumps Ex have to be used.

The adjustable axial gap of the MultiStream pump makes it possible to re-optimize the efficiency in case of abrasion by adjusting only one single screw. This can be done very cost effective when the maintenance is carried out and the pump keeps its optimum performance on a long-term basis.

  • Adjustable single-channel impeller
  • Connection alternatively PN6 or PN10
  • Safe to run dry
  • Controllable oil chamber
  • Plug-type cable connection (MultiStream 10...-100...)
  • SiC mechanical seal independent of sense of rotation
  • Moisture-sealed cable inlet
  • Installed motor protection
  • Max. head - 27 m
  • Max. flow - 2200 lpm

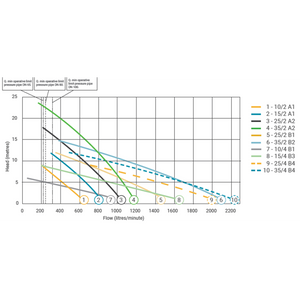

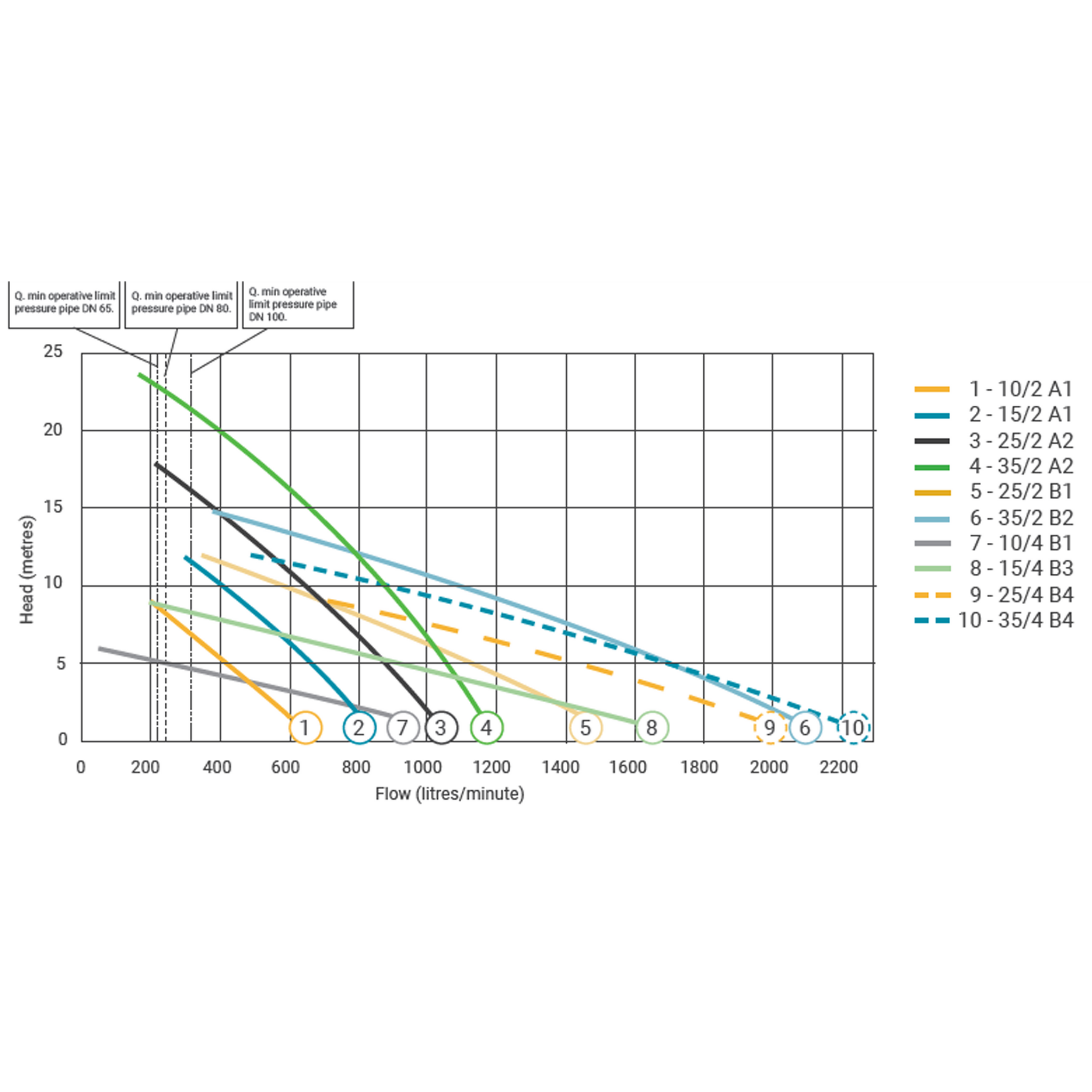

    The MultiFree Pumps are divided into different fields of performance:



    Spare Parts Multistream 10-35

    Spare Parts Multistream 55 - 100

    Spare Parts Multistream 150 - 300

    Technical Data Sheet
