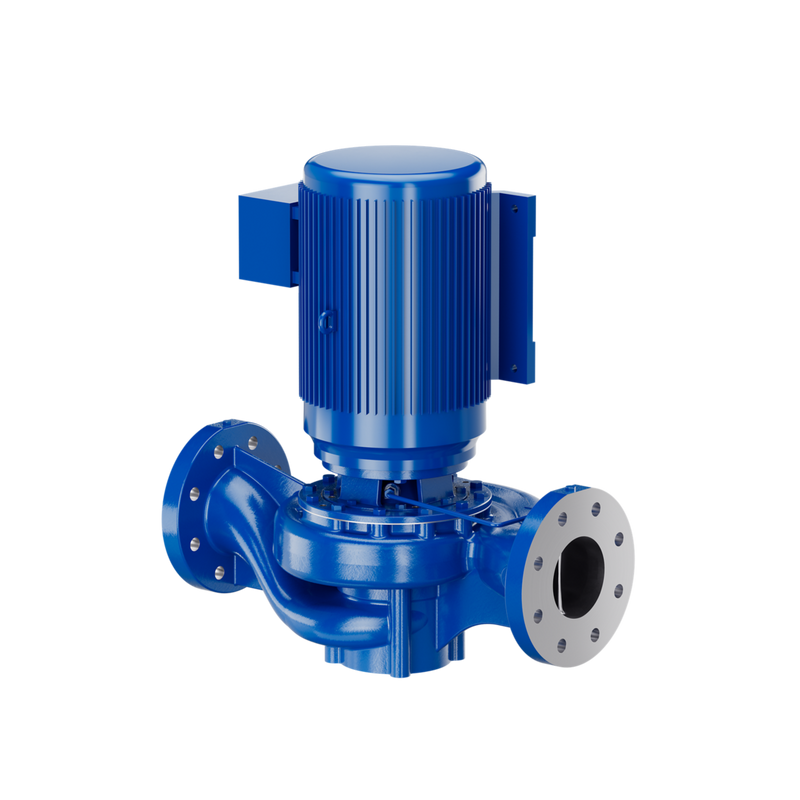

Pentair Aurora 382B Single Stage Vertical Inline Close and Split Coupled Centrifugal Pumps

Today’s room space constraints are more challenging than years ago. Pentair Aurora Vertical In-Line Pumps are specifically designed for mounting directly in a pipeline and to reduce the space required in a pump room; two pumps fit in the space of one. These modern pumps with a clean, straightforward and updated design were developed with upgraded materials of construction and a simplified offering without limiting ranges of head and capacity requirements. These pumps not only feature shared hydraulics and premium materials as standard offering, but also offer industry leading durability.
Head Up To 370 feet (78 m)
Max Temperature 275° F (135° C)
Capacity Up to 12,000 gpm (2,725 m3/hr)
Enquire About This Pump
🔧 NZ-based technical support 📄 Trade pricing on request 🕐 Quotes typically same day

Applications

No applications listed.

Key Features

  • Mounts directly to piping.
  • Higher working pressures, up to 290 psi.
  • C-face bracket accommodates most common National Electrical Manufacturers Association (NEMA) rated motors.
  • Patented jacking mechanism for quick and easy servicing.

Downloads

Pentair Aurora 382B Single Stage Vertical Inline Close and Split Coupled Centrifugal Pumps Brochure PDF Pentair Aurora 382B Single Stage Vertical Inline Close and Split Coupled Centrifugal Pumps Manual PDF

Technical specifications

View full specification table
Brand Pentair Aurora
Model 382B
Equipment Category Single Stage Vertical Inline Close

Frequently asked questions

What is the Pentair Aurora 382B pump used for?
The Aurora 382B is a single-stage vertical inline centrifugal pump used for HVAC, pressure boosting, chilled and hot water, clean-water pumping, municipal and industrial applications.
What is the difference between close-coupled and split-coupled Aurora 382B pumps?
A close-coupled pump has the pump connected directly to the motor. A split-coupled pump has a separate motor and coupling arrangement, which can provide additional maintenance and configuration flexibility.
What materials are used in the Aurora 382B pump?
Key components include a ductile-iron casing, stainless-steel impeller and stainless-steel shaft. Material selection should be confirmed against the liquid and operating conditions.
What is the patented jacking mechanism?
On split-coupled models, the patented jacking mechanism is designed to simplify seal replacement and make servicing easier.
