ISO PRO - Long Coupled, ISO 5199
ISO PRO - Long Coupled, ISO 5199 ISO PRO - Long Coupled, ISO 5199
Southern Cross End Suction Available to Order

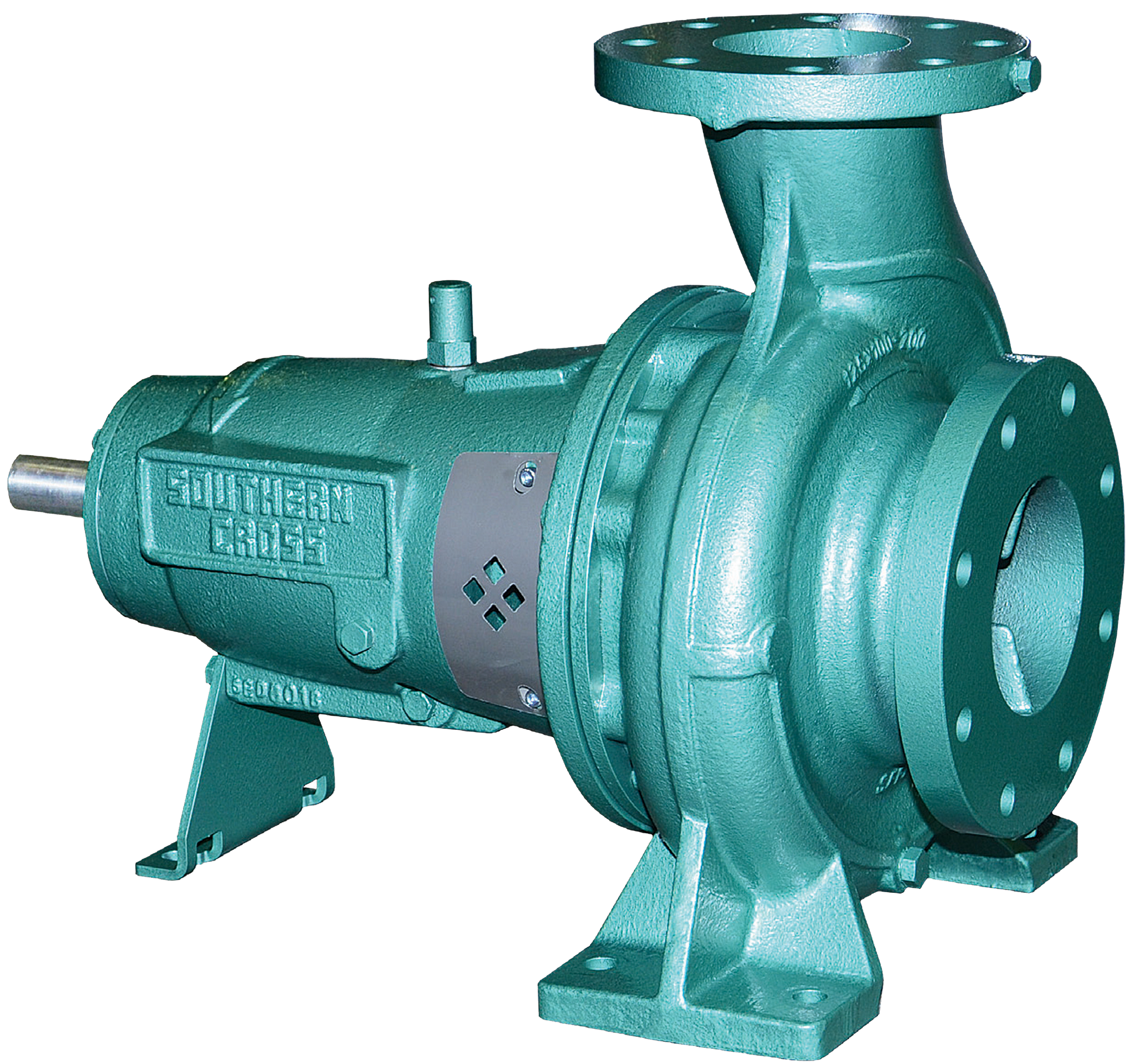

ISO PRO - Long Coupled, ISO 5199

The Southern Cross ISO PRO - Long Coupled, ISO 5199 is an industrial centrifugal pump designed for residential, rural, commercial and industrial water systems. For these installations, it helps provide dependable water movement and efficient system performance through durable stainless steel components.
Head Up To 160 m
Flow Rate Up To 250 l/s
Warranty 1 year
Enquire About This Pump
🔧 NZ-based technical support 📄 Trade pricing on request 🕐 Quotes typically same day

Applications

  • Belt-drive systems
  • Processing plants
  • Mines
  • Irrigation
  • Construction

Key Features

  • Heavy duty oil lubricated taper roller bearings
  • Australian designed and manufactured
  • Superior hydraulic design & manufacturing methods produce significantly higher efficiencies for lower running costs and reduced maintenance
  • Australia wide backup
  • Heads to 160 metres
  • Up to 250 litres per second discharge
  • Manufactured to ISO 5199 Standard
  • Heavy duty design type 316 shaft
  • High strength cast iron bearing housing
  • Mechanical seals fitted as standard with single on-shaft mechanical seal
  • Superior hydraulic design and manufacturing processes, together with double curvature impeller blades, provide highly efficient suction performance, higher speed capabilities and greater performance for reduced running costs and maintenance
  • 1600kPa pressure rating
  • Taper mounted impeller for positive drive and easy removal
  • Replaceable stainless steel or zinc free bronze wear rings
  • Reusable ‘O’ ring body seals in Viton as standard and Teflon or EPDM as options
  • AS2129 Flanges
  • Standard tappings —Volute drain plug, suction flange tapping for suction gauge and discharge flange tapping for pressure gauge

Downloads

ISO PRO - Long Coupled, ISO 5199 Technical Data Sheet PDF ISO PRO - Long Coupled, ISO 5199 Product Flyer PDF ISO PRO - Long Coupled, ISO 5199 Manual PDF ISO PRO - Long Coupled, ISO 5199 Spare Parts PDF ISO PRO - Long Coupled, ISO 5199 Operating Instructions PDF ISO PRO - Long Coupled, ISO 5199 Performance Curves PDF

Technical specifications

View full specification table
Brand Pentair Southern Cross
Model ISO PRO
Equipment Category ISO 5199 Standard End Suction Centrifugal Pumps
Capacity Maximum 250 litres/sec
Head Maximum 160 m
Liquid Temperature 0˚C to +100˚C (Up to 140˚C with high temp. seals)
Pumped Water Clean Water
Warranty 1 year

Frequently asked questions

What does ISO 5199 mean for the ISO PRO pump?
ISO 5199 is a standard for Class II end suction centrifugal pumps used in demanding industrial duties. The ISO PRO range is manufactured to this standard.
Can the ISO PRO be used in belt-drive applications?
Yes. The range is suitable for heavy-duty belt-drive applications.
What flow rate can an ISO PRO pump deliver?
The ISO PRO range can deliver up to 250 litres per second. Actual flow depends on the selected pump size, impeller, motor speed, pipework and system head.
What materials are used in the ISO PRO pump?
Standard features include a heavy-duty type 316 stainless steel shaft and high strength cast iron bearing housing. Stainless-steel or zinc-free bronze wear ring options are available for suitable applications.
