STARLINE - Close Coupled, ISO 2858
STARLINE - Close Coupled, ISO 2858
Southern Cross End Suction Available to Order

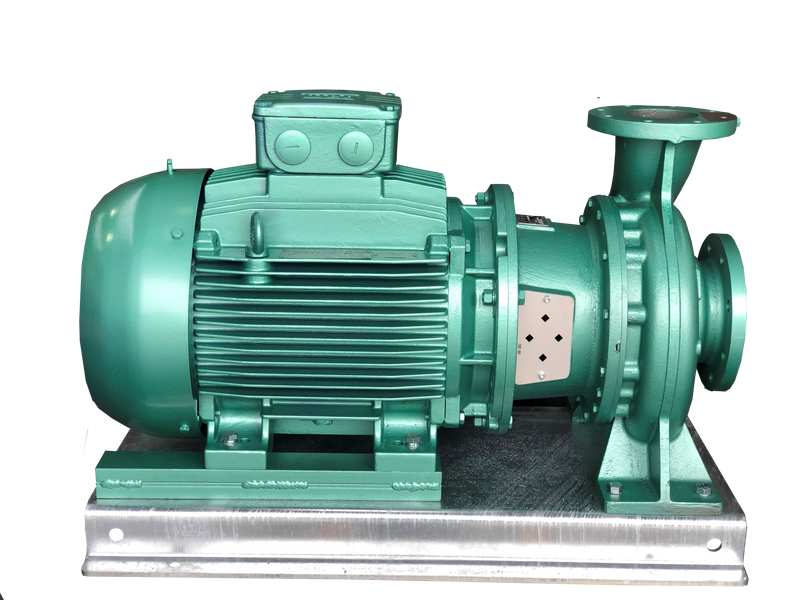

STARLINE - Close Coupled, ISO 2858

The Southern Cross STARLINE - Close Coupled, ISO 2858 is an industrial centrifugal pump designed for residential, rural, commercial and industrial water systems. For these installations, it helps provide dependable water movement and efficient system performance through durable stainless-steel components.
Capacity Maximum 300 l/s
Max Head 160m
Warranty 2 years
Enquire About This Pump
🔧 NZ-based technical support 📄 Trade pricing on request 🕐 Quotes typically same day

Applications

  • Industrial water transfer
  • Irrigation systems
  • Building services

Key Features

  • Space saving design
  • Superior hydraulic design and manufacturing methods produce significantly higher efficiencies for lower running costs and reduced maintenance
  • Australian designed and manufactured
  • Australian wide service and backup
  • ISO 9001 quality assured
  • 32 to 200mm discharge
  • Wide range of options

Downloads

STARLINE - Close Coupled, ISO 2858 Technical Data Sheet PDF STARLINE - Close Coupled, ISO 2858 Product Flyer PDF STARLINE - Close Coupled, ISO 2858 Manual PDF STARLINE - Close Coupled, ISO 2858 Spare Parts PDF STARLINE - Close Coupled, ISO 2858 Pump Dimensions PDF STARLINE - Close Coupled, ISO 2858 Performance Data PDF

Technical specifications

View full specification table
Brand Pentair Southern Cross
Model STARLINE - Close Coupled, ISO 2858
Equipment Category End Suction ISO Pumps
Capacity 300 lps
Head Maximum 160 m
Liquid Temperature 0˚C to +100˚C (32˚F - 212˚F) Up to 140˚C (284˚F) with high temp. seals
Fluid Water
Warranty 1 year

Frequently asked questions

Is the STARLINE close-coupled pump suitable for general water transfer?
Yes. STARLINE pumps are designed for efficient, reliable general-purpose water transfer in commercial, industrial and water-supply applications.
What flow rate and head can a STARLINE close-coupled pump provide?
The range can provide flows up to 250 litres per second and heads up to 160 metres, depending on the selected pump model.
Can STARLINE pumps handle hot water?
STARLINE pumps can handle water temperatures up to 100°C with standard components. Contact us if your application involves higher temperatures or a non-standard liquid.
How do I choose the right STARLINE pump size?
Pump selection depends on the required flow, total head, liquid temperature, suction conditions and motor power. Contact us with these details and we can help select the right model.
