Onga Farm Master Available to Order

500 Series

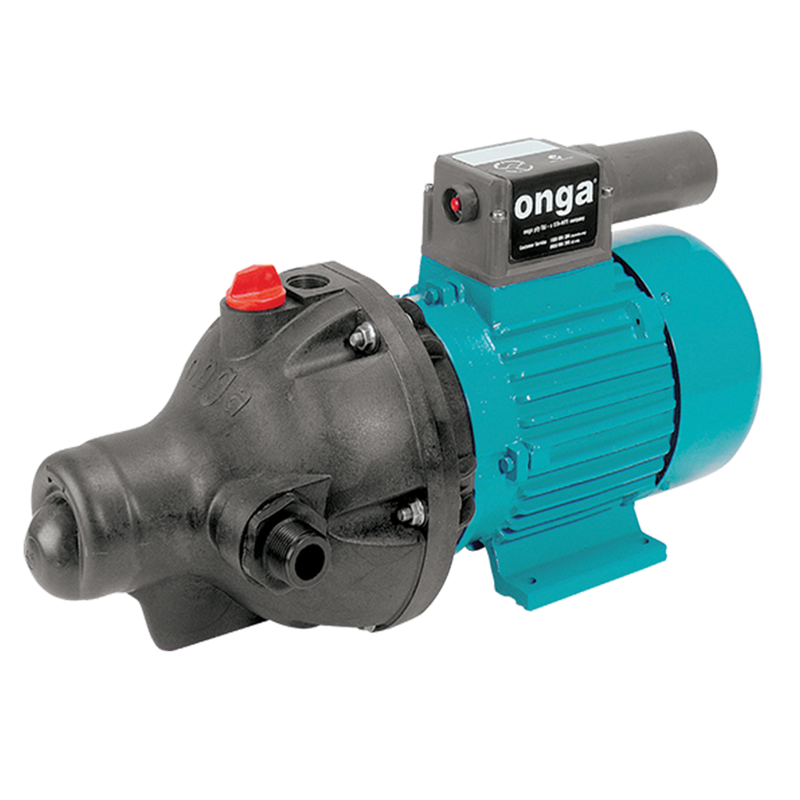

The Onga 500 Series is an industrial centrifugal pump designed for residential, rural, commercial and industrial water systems. For these installations, it helps provide dependable water movement and efficient system performance through corrosion-resistant thermoplastic construction. Multiple models or configurations are available to suit different flow, pressure, capacity and installation requirements.
Max Head 41 m
Max Flow 118 lpm
Warranty 2 years
Enquire About This Pump
🔧 NZ-based technical support 📄 Trade pricing on request 🕐 Quotes typically same day

Applications

  • Domestic/industrial/rural pressure systems
  • Irrigation
  • Stock watering

Key Features

  • Industrial grade corrosion resistant thermoplastic
  • No moving parts down bore
  • Built-in check valve
  • Shallow well lifts to 7.6 m
  • Manual or automatic system

Downloads

500 Series Technical Data Sheet PDF 500 Series Product Flyer PDF 500 Series Manual PDF 500 Series Spare Parts PDF

Technical specifications

View full specification table
Brand Onga
Model 500 Series
Equipment Category Moulded Jet Farmmaster Pump
Maximum Head 41m
Maximum Flow 118 lpm
Current Type 1-phase
RPM 2900
Motor Protection Auto
Insulation Class B
IP Rating IP44
Warranty 2 years

Frequently asked questions

What type of water can the 500 Series pump?
The 500 Series is designed for clean, non-aggressive liquids that do not contain suspended solids or fibres.
Can the 500 Series draw water from a tank, dam or creek?
Yes. It can be used with a range of water sources, including tanks, bores, dams, creeks and rivers, subject to suitable installation and water quality.
Is the 500 Series suitable for a bore?
It can be used for shallow-well applications, with a maximum shallow-well lift of 7.6 metres. Contact us to confirm suitability for your bore depth and water level.
What is the 500 Series pump body made from?
The pump is made from industrial grade, corrosion-resistant thermoplastic and is close-coupled to a TEFC electric motor.
