OJ700 Range
OJ700 Range OJ700 Range OJ700 Range OJ700 Range
Onga Farm Master Available to Order

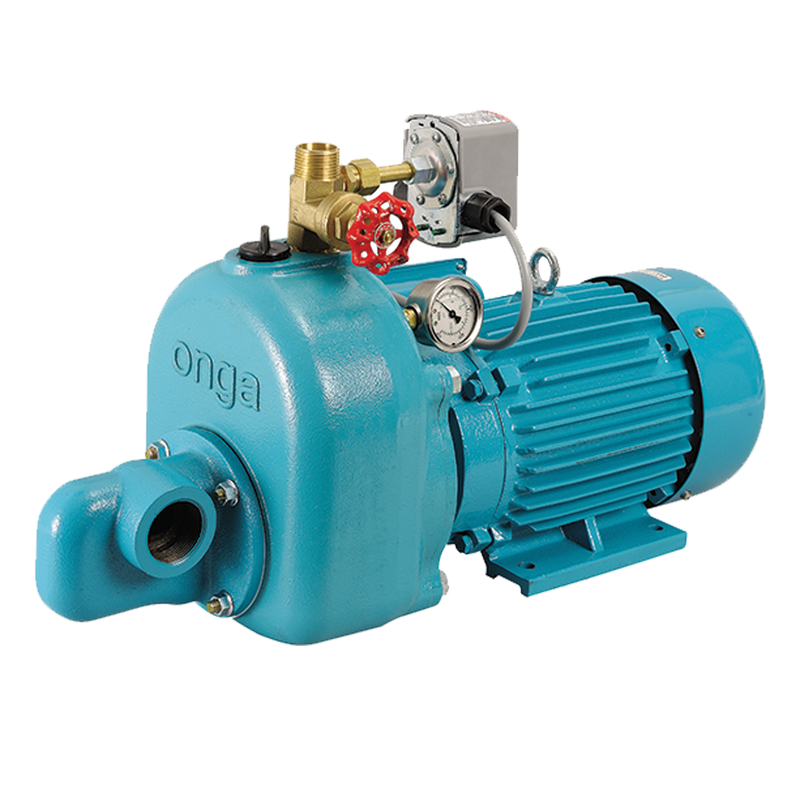

OJ700 Range

The Farmmaster Onga Jet (OJ) range is the flagship of the Onga range. The OJ range offers precision-engineered internals with a coated cast iron housing for high performance and the ultimate in strength and longevity, you simply cannot beat this range for reliability.
Max Head 77 m
Max Flow 162 lpm
Warranty 2-year
Enquire About This Pump
🔧 NZ-based technical support 📄 Trade pricing on request 🕐 Quotes typically same day

Applications

  • Domestic/industrial/rural
  • Stock watering
  • Irrigation
  • Water transfer

Key Features

  • Injectors to suit a large range of applications
  • Offset combinations available
  • No moving parts down bore
  • Shallow well lifts to 7.6 m
  • Deep well lifts to 40 m
  • Manual or automatic system

Downloads

OJ700 Range Technical Data Sheet PDF OJ700 Range Product Flyer PDF OJ700 Range Manual PDF OJ700 Range Spare Parts PDF OJ700 Range Shallow Well Injector Spare Parts PDF OJ700 Range Deep Well Injector Spare Parts PDF OJ700 Range Jet & Venturi Cross-Reference PDF

Technical specifications

View full specification table
Brand Onga
Model OJ700 Range
Equipment Category Pump / Pumping System
Pump Type Horizontal, single-stage, surface mounted centrifugal pump.
Maximum Flow Rate 162lpm
Maximum Head 77m
Warranty 2 years

Frequently asked questions

What is the Onga OJ700 Range used for?
The Onga OJ700 is a jet-pump range for domestic, rural and industrial water supply. It can be used for pressure systems, stock watering, irrigation and water transfer.
Can an OJ700 pump draw water from a bore?
Yes. With the right injector setup, the OJ700 can be used for shallow and deep bore applications. It can lift from shallow wells up to 7.6 metres and deep wells up to 40 metres.
What water sources can the OJ700 use?
The OJ700 can be configured for water from tanks, bores, dams, creeks and rivers, using the appropriate injector combination.
What is the difference between a shallow-well and deep-well OJ700 injector?
Shallow-well injectors are used for lifts up to 7.6 metres, while deep-well injector setups can lift water from depths up to 40 metres. The right injector depends on your water level and installation.
